Tascam SS-R250N USB/SD audio recorder 19″ 1HE met netwerk aansluiting en redundante opname op dubbele SD kaart

Productbeschrijving

The SS-R250N is a networkable solid-state recorder/player with a variety of remote control options for professional applications like in broadcast studios or fixed installations.
It records in WAV and MP3 format to SD/SDHC/SDXC and USB flash memory.
Since the recorder is able to connect to an FTP server via a network, it can upload recordings automatically after a recording has been finished or download files for playback.
Time synchronisation via SNTP is also possible.

With its dual SD card slots, the SS-R250N offers more security to your valuable files compared to conventional recorders.
During recording, backups can be created on the second memory card, or the recorder switches to the second card as soon as the first card runs out of memory.
The unit also closes files automatically in case there is a sudden power outage during recording to avoid loss of the entire recording session.

The SS-R250N can be controlled in a variety of ways.
The RC-SS150 remote control offers a convenient interface with a colour LC display and 12 keys for flash playback.
There is also a dedicated app available for iOS and Android devices that can control transport operations and various settings.
Or you can integrate the recorder into existing environments using serial or parallel control.

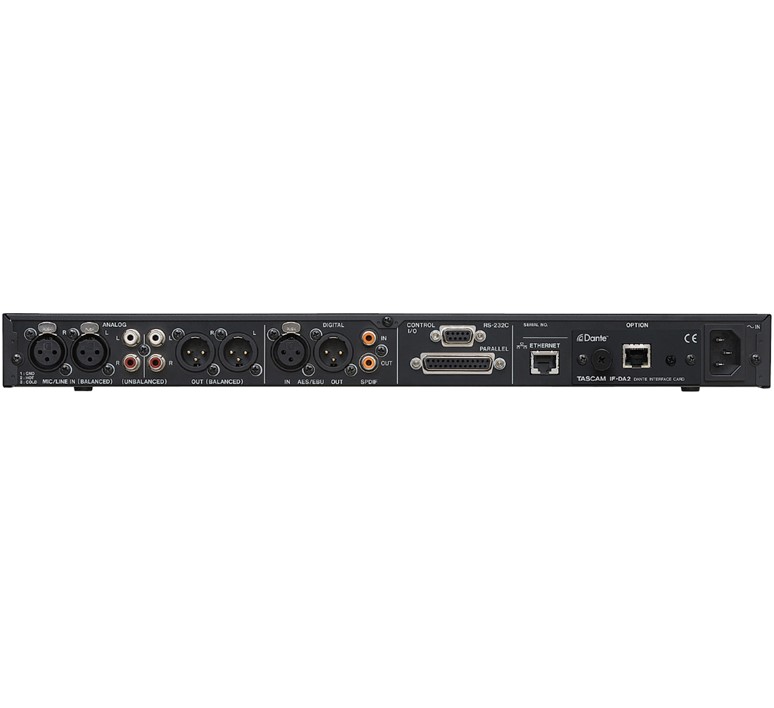

For audio connections, the SS-R250N is equipped with balanced and unbalanced analogue inputs and outputs as well as SPDIF coaxial and AES/EBU digital I/O with sample rate converter.
An optional Dante interface card offers two-channel input/output for Dante audio networks.

Backup recording can prevent you from unpleasant surprise:
When using the BACKUP option while recording, the unit stores audio files on both selected media in parallel.
Such backups can help you avoid trouble in case of problems with a recording medium.
You can select from the menu which of the remaining media is used for the backup.

Relay function for long recording times:
When using the RELAY option while recording, the unit uses multiple media in succession to allow continuous recording for long periods of time.
You can even combine a dual-format recording (record in WAV and MP3 format simultaneously) with the relay function.

Automatic file closing:
To further help you secure your valuable recordings, the unit automatically saves and closes recording files every few seconds to safeguard against data loss in case of a power outage.

Specificaties

Recording media:
– SD cards (512 MB – 2 GB)
– SDHC cards (4 – 32 GB)
– SDXC cards (64 – 128 GB)
– USB flash drives (512 MB – 64 GB)

Recording and playback file formats:
– MP3 44,1/48 kHz, 64/128/192/256/320 Kbit/s
– WAV 44,1/48/96 kHz, 16/24 bits
– number of channels 2 channels (stereo), 1 channel (mono)

Analogue audio inputs and outputs:
– analogue input (unbalanced) RCA pin jacks input level -10 dBV (0,316 Vrms)
– maximum input level +6 dBV (2.0 Vrms)
– input impedance 10 kOhm or higher
– analogue input (balanced) XLR-3-31 (1: GND, 2: HOT, 3: COLD) when used as line input
– nominal input level +4 dBu (1,23 Vrms, when ref level set to other than -9 dBFS), +6 dBu (1,55 Vrms, when ref level set to -9 dBFS)
– maximum input level (switchable)
– +15 dBu (4,36 Vrms, ref level -9 dBFS)
– +18 dBu (6,16 Vrms, ref level -14 dBFS)
– +20 dBu (7,75 Vrms, ref level -16 dBFS)
– +22 dBu (9,76 Vrms, ref level -18 dBFS)
– +24 dBu (12,28 Vrms, ref level -20 dBFS)
– input impedance 10 kOhm or higher when used as mic input (phantom power supported)
– maximum input level +4 dBu (1,23 Vrms)
– minimum input level -70 dBu (245 μVrms) or higher
– input impedance 2,2 kOhm or higher
– analogue output (unbalanced) RCA pin jacks rated output level -10 dBV (0,316 Vrms)
– maximum output level +6 dBV (2,0 Vrms)
– output impedance 200 Ohm
– analogue output (balanced) XLR-3-32 (1: GND, 2: HOT, 3: COLD)
– nominal output level +4 dBu (1,23 Vrms, when ref level set to other than -9 dBFS)
– +6 dBu (1,55 Vrms, when ref level set to -9 dBFS)
– maximum output level (switchable)
– +15 dBu (4,36 Vrms, ref level -9 dBFS)
– +18 dBu (6,16 Vrms, ref level -14 dBFS)
– +20 dBu (7,75 Vrms, ref level -16 dBFS)
– +22 dBu (9,76 Vrms, ref level -18 dBFS)
– +24 dBu (12,28 Vrms, ref level -20 dBFS)
– output impedance 200 Ohm
– phones output 6,3-mm standard stereo jack
– maximum output power 45mW + 45mW or higher (THD+N 0,1% or less, into 32 Ohm load)
– digital audio input (AES/EBU) XLR-3-31
– input impedance 110 Ohm
– format AES3-2003 / IEC60958-4 (AES/EBU)
– supported sampling frequencies 44,1 kHz, 48 kHz, 96 kHz when SRC ON, 32 – 192 kHz can be received
– digital input (SPDIF) RCA pin jack
– format IEC60958-3
– supported sampling frequencies 44,1 kHz, 48 kHz, 96 kHz when SRC ON, 32–192 kHz can be received
– digital output (AES/EBU) XLR-3-32
– output impedance 110 Ohm
– format AES3-2003 / IEC60958-4 (AES/EBU)
– supported sampling frequencies 44,1 kHz, 48 kHz, 96 kHz
– digital output (SPDIF) RCA pin jack
– format IEC60958-3 (SPDIF)
– remote jack 2,5-mm TRS jack (for Tascam RC-3F or RC-20, sold separately)
– USB port 4-pin USB, A-type USB 2.0 high speed (480 Mbit/s)
– serial port (RS-232C) D-sub 9-pin
– parallel port D-sub 25-pin
– maximum input voltage +5,5V
– high-level minimum input voltage +2,31V
– low-level maximum input voltage +0,99V
– open collector (10 Ohm output impedance, 20V withstand voltage, 35 mA maximum)
– low-level maximum output voltage 0,5V/5V power supply maximum supplied current 100 mA
– network connector (Ethernet) RJ45 100BASE-TX
– frequency response (LINE IN or MIC IN to LINE OUT) 20 Hz – 20 kHz, ±0,5 dB (Fs = 44,1/48 kHz, JEITA)
– 20 Hz – 40 kHz, +0,5/-3 dB (Fs = 96 kHz, JEITA)
– distortion 0,002 % or less (LINE IN to LINE OUT, ref level -16 dBFS, Fs = 44,1/48/96 kHz, JEITA)
– S/N ratio 106 dB or more (LINE IN to LINE OUT, Fs = 44,1/48/96 kHz, JEITA)
– dynamic range 106 dB or more (LINE IN to LINE OUT, Fs = 44,1/48/96 kHz, JEITA)
– crosstalk 100 dB or more (LINE IN to LINE OUT, Fs = 44,1/48/96 kHz, JEITA)
– equivalent input noise (EIN) -125 dBu or less (150 Ohm, 20 kHz LPF, A-weighted)
– AC 100 – 240 V, 50-60 Hz
– power consumption 20W
– dimensions (W x H x D) 483mm x 45mm x 301mm
– weight 2,9kg
– permissible operating temperature range 5 – 35C
