Tascam CD-RW900SX CD recorder 19″ speelt ook MP-3

Productbeschrijving

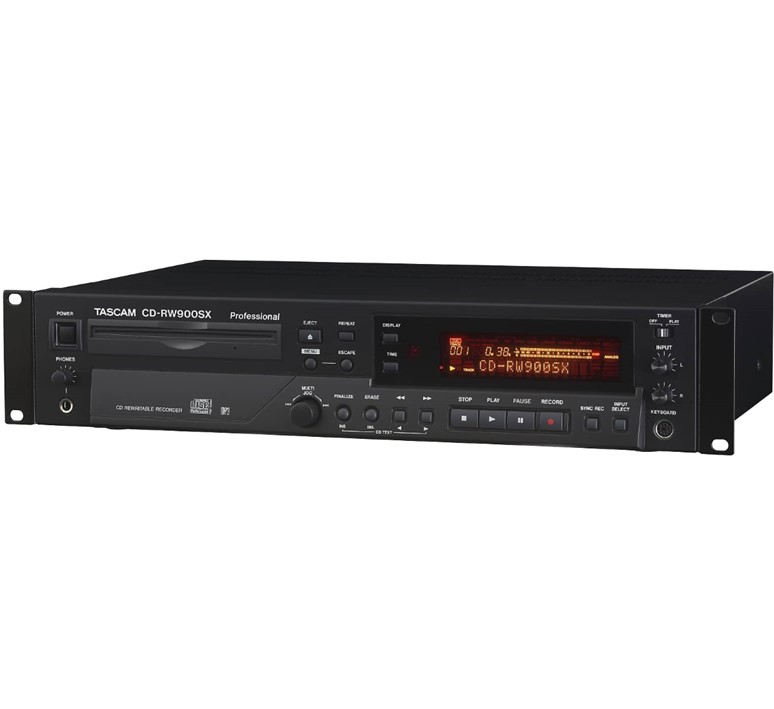

The CD-RW900SX is a professional cd-recorder and player that replaces the CD-RW900MKII.
A slot-loading optical drive ensures years of reliable operation in the most demanding installations.
This CD drive allows gapless recording when setting track marks, something not possible using off the shelf PC optical drives.
A high-performance codec chip is used for A/D and D/A conversion for clean, clear sound quality with a frequency response of 20 Hz to 20 kHz ±0,8dB.
Various recording features like automatic track creation help the operator create polished recordings without constant supervision.

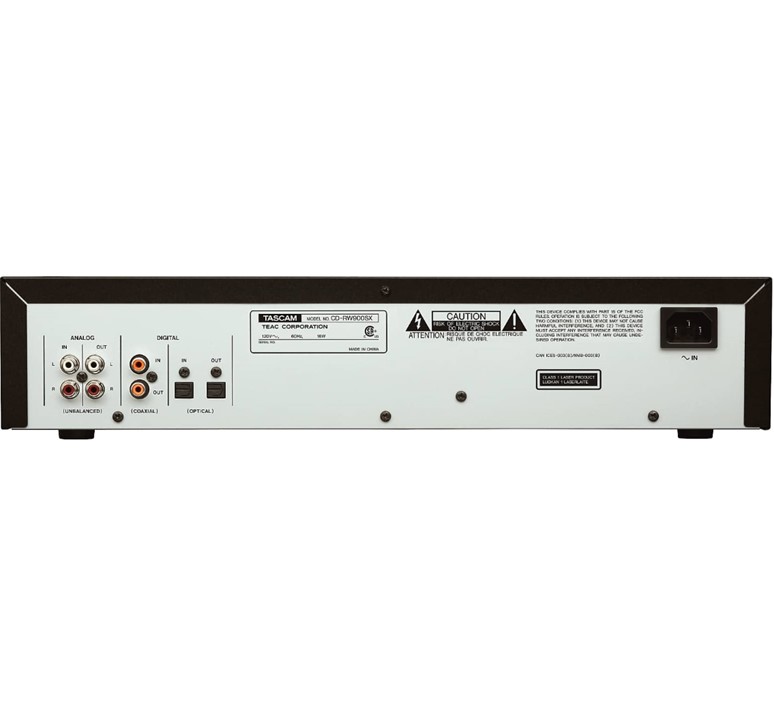

The CD-RW900SX has unbalanced analogue input/output jacks as well as optical and coaxial digital audio connectors.
Both the left and right analogue inputs have their own gain controls on the front panel.
In addition, the digital input can be controlled for optimal recording levels from a digital source.
Functions including auto-cue, auto-ready, pitch control, power-on playback, and fade-in/fade-out playback are provided.
It is also possible to control the transport via an optional computer keyboard.

Whether used for PA/rental or fixed installations, the CD-RW900SX is the right choice for reliable CD recording and playback.

Features:
– gapless continuous recording
– independant L/R analogue input level controls
– adjustable digital level
– automatic (by level, by time, digital direct) or manual track division
– fade in/out from 1 to 30 seconds in 1-second steps
– rec mute function to record four seconds of silence
– sync recording
– the number of tracks that can be recorded at once can be restricted

Specificaties

– recordable media CD-R, CD-RW, CD-R-DA, CD-RW-DA (High speed CD-RW is supported)
– playback disc formats CD-DA, CD-ROM (ISO 9660 Level 1/2 Joliet format, multisession discs and CD text)
– playback file formats CD-DA: 44.1 kHz, 16-bit stereo
– MP3 44.1 kHz, 64 – 320 kbps, VBR
– recording file formats CD-DA: 44.1 kHz, 16-bit stereo
– quantisation 16-bit linear
– sampling frequency 44,1kHz
– frequency response 20 Hz to 20 kHz, ±0,8 dB (playback), 20 Hz to 20 kHz, ±1,0dB (recording)
– signal-to-noise ratio 95 dB (playback), 90 dB (recording)
– dynamic range 95 dB (playback), 90 dB (recording)
– total harmonic distortion <0,006 % (playback), <0,008 % (recording)
– channel separation >90 dB (playback, at 1 kHz), >80 dB (recording, at 1 kHz)
– wow and flutter <0,001 % (unmeasurable)
– analogue input unbalanced RCA
– nominal input level -10 dBV (-16 dBFS)
– nominal impedance 22kOhm ±10%
– analogue output unbalanced RCA
– nominal output level -10 dBV (-16 dBFS)
– maximum output level +6 dBV ±2 dB
– nominal impedance 200 Ohm ±10%
– headphones output 6,3mm stereo jack
– output power 20mW + 20mW (into 32Ohm)
– digital inputs supported input sampling frequencies 32 – 48kHz
– coaxial RCA, IEC60958 Type II (SPDIF)
– optical TOS, IEC60958 Type II (SPDIF)
– digital outputs coaxial RCA, IEC60958 Type II (SPDIF)
– optical TOS, IEC60958 Type II (SPDIF)
– keyboard connector mini DIN, 6-pin (PS/2)
– power supply voltage requirements 230VAC, 50Hz
– power consumption 18W
– dimensions (W x H x D) 483mm x 94mm x 309mm
– weight 4,3kg
