Tascam CD-400U DAB CD/USB/SD/Bluetooth MP-3/WMA speler 19″ 1HE met RS-232 en gebalanceerde uitgang

Tascam CD-400U DAB CD/USB/SD/Bluetooth MP-3/WMA speler 19″ 1HE met RS-232 en gebalanceerde uitgang

Artikelnummer: CD400UDAB

495,00  uw inkoopprijs

Alle prijzen zijn exclusief 21% btw

Bestelartikel

  • 1 jaar garantie
  • Gratis verzending v.a. €350,-

Productbeschrijving

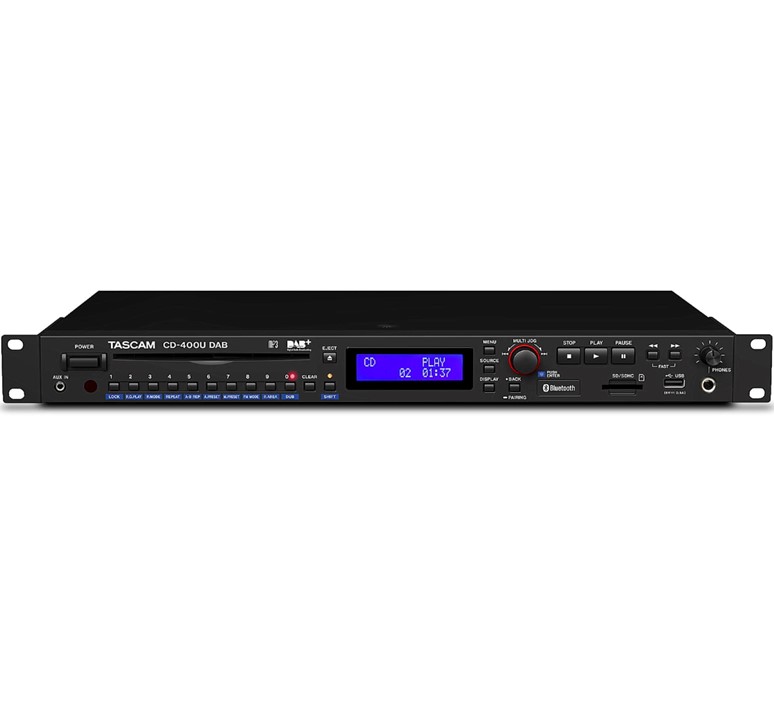

The CD-400UDAB is a compact-sized, rack-mountable and remote-controllable media player that can play tracks from CDs, USB memory devices, SD cards and Bluetooth devices.
It also includes an FM/DAB+ tuner with 20 presets to play music from radio stations and a front-panel mini-jack input to connect devices such as portable music players.
The tuner has its own output enabling the user to supply two rooms with different music signals, for example.

Remote control is possible by the included wireless RC-CD400 and by serial control via the built-in RS-232C port.
This all-in-one CD player is suitable for a wide range of applications, from background music in touring, restaurants or small stores to use in public facilities.

Play files from CDs, USB memory devices and SD cards:
The CD-400UDAB is ideal for contractors where playback of a wide range of media and file formats is required.
You can play audio CDs as well as audio files in WAV, MP3, AAC and WMA format stored on data CDs, USB memory devices or SD/SDHC cards.
Playback modes (continuous, single and random) can also be combined with repeat playback to suit a wide range of situations.

Wireless playback from Bluetooth devices:
Audio files can also be played from Bluetooth devices such as smartphones, tablets and portable music players.
After a device has been connected for the first time, a wireless connection can be made quickly by simply pressing the pairing button.
This enables easy playback of audio files without fussing with cables or file formats.

External input connector for other sources:
A stereo mini AUX IN connector on the front panel enables the CD-400UDAB to play audio from portable music players not equipped with Bluetooth.

DAB+ tuner to play your favourite radio stations:
The CD-400UDAB includes an FM/DAB+ tuner with 20 FM and DAB+ presets each. An independent tuner output allows simultaneous playback with other media to supply different rooms, for example.

Features:
– ultra-compact, rack-mount media player with DAB+/FM and Bluetooth receiver
– multiple playback sources: Audio CD playback
– MP3 and WMA file playback from CD
– audio file playback from SD and USB memory (MP3, AAC, WAV, WMA)
– DAB+/FM radio playback (output from the main or separate output connectors)
– playback via Bluetooth connection with a smartphone or computer
– playback from other audio sources via AUX IN connector
– CD standards supported CD-DA, CD-ROM, CD-R, CD-RW (CD-DA format only)
– slot-loading CD drive mechanism
– numeric keys for direct track selection
– playback modes include continuous, single, random
– repeat playback (all, single, A-B)
– incremental play (skip to each next track by pressing the PLAY button; available for CD, USB, SD)
– resume function (start playback from the track where the unit was last stopped)
– folder playback with SD and USB memory
– dubbing from CD or tuner to SD or USB memory (MP3 format)
– time display (track elapsed / track remain / total elapsed / total remain)
– power-on play (timer function)
– lock function to avoid accidental operation
– anti-shock memory

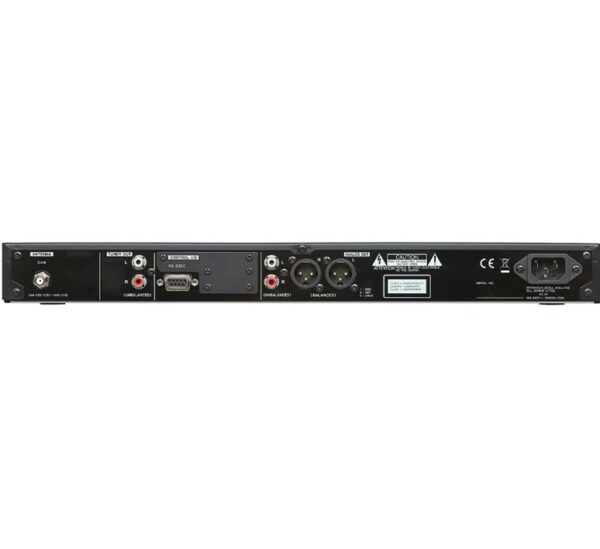

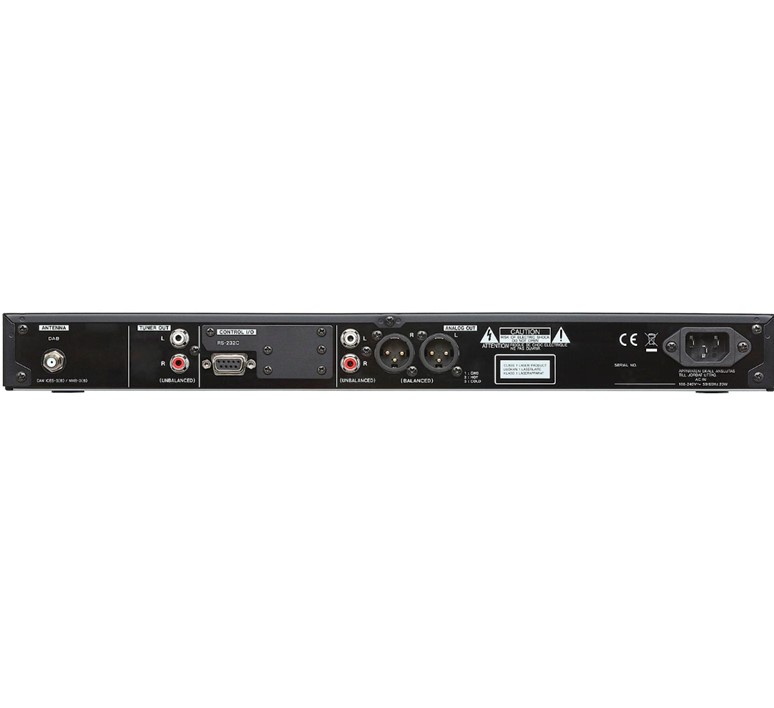

– XLR balanced analogue output (main)
– RCA unbalanced analogue output (main)
– RCA unbalanced analogue output (tuner)
– remote control via RS-232C serial connector (D-sub 9-pin)
– optional Ethernet interface card (IF-100E) available for external control over a network (Telnet protocol)
– headphones output with dedicated volume control
– backlit LCD display
– wireless remote control included



Specificaties

Supported media:
– USB memory 512MB – 64GB
– SD card 512MB – 2GB
– SDHC card 4 – 32GB
– CD-DA, CD-ROM, CD-R, CD-RW (CD-DA format only)
– supported file systems FAT16, FAT32

Supported file formats:
– CD-DA 44,1 kHz, 16 bit
– MP3 44,1/48 kHz, 32-320 kbit/s and VBR (MPEG1/2 Audio Layer 3)
– WAV (USB/SD only) 44,1/48 kHz, 16 bit
– WMA 44,1/48 kHz, 32-320 kbit/s and VBR (WMA v9 standard, DRM not supported)
– AAC (USB/SD only) 44,1/48 kHz, 8-320 kbit/s and VBR (MPEG4 AAC-LC audio stream)
– number of audio channels 2 channels (stereo), 1 channel (mono)
– recording file format MP3 (44,1 kHz, 96/128/192/320 kbit/s)
– Bluetooth receiver Bluetooth version v4.2
– output class 2
– supported profiles A2DP, AVRCP
– supported A2DP codecs SBC, AAC, aptX
– supported A2DP content protection SCMS-T
– tuner frequency range FM 87,5 – 108 MHz
– DAB band III, 174-240 MHz
– antenna connector F-type (female), 50Ohm unbalanced
– analogue audio inputs and outputs
– AUX analogue audio input (unbalanced) 3,5mm TRS mini-jack
– nominal input level -20 dBV (0,1 Vrms)
– maximum input level – 4 dBV (0,63 Vrms)
– input impedance > 10Ohm
– main analogue audio outputs (balanced) XLR-3-32 (1: GND, 2: HOT, 3: COLD)
– nominal output level +4 dBu (1,23 Vrms, output attenuation 0 dB)
– maximum output level +20 dBu (7,75 Vrms, output attenuation 0 dB)
– output impedance 100Ohm
– main analogue audio outputs (unbalanced) RCA
– nominal output level -10 dBV (0,16 Vrms, output attenuation 0 dB)
– maximum output level +6 dBV (2,0 Vrms, output attenuation 0 dB)
– output impedance 200Ohm
– tuner analogue audio outputs (unbalanced) RCA
– nominal output level -10 dBV (0,316 Vrms, output attenuation 0 dB)
– maximum output level +6 dBV (2.0 Vrms, output attenuation 0 dB)
– output impedance 200Ohm
– headphones output 6,3mm stereo jack
– maximum output power >20 mW + 20 mW (THD+N <0,1%, 32Ohm load)
– control I/O RS-232C D-sub 9 pin
– frequency response 20Hz – 20kHz, +/-1dB (Fs: 44.1 kHz, 48 kHz, JEITA)
– total harmonic distortion <0,005 % (JEITA)
– S/N ratio >95 dB (JEITA)
– dynamic range >90 dB (JEITA)
– channel crosstalk >90 dB (JEITA)
– power supply and other specifications mains power AC 100-240V, 50/60Hz
– power consumption 20W
– overall dimensions (W x H x D) 483mm x 47mm x 296mm
– weight 3,3kg
– operating temperature range 5-35C

Included accessory:
– removable mains power cable
– RC-CD400 wireless remote control
– rack-mounting screw kit
– FM antenna
– owner’s manual with warranty
