Tascam CD-200 CD MP-3 speler 19″ 2HE

Productbeschrijving

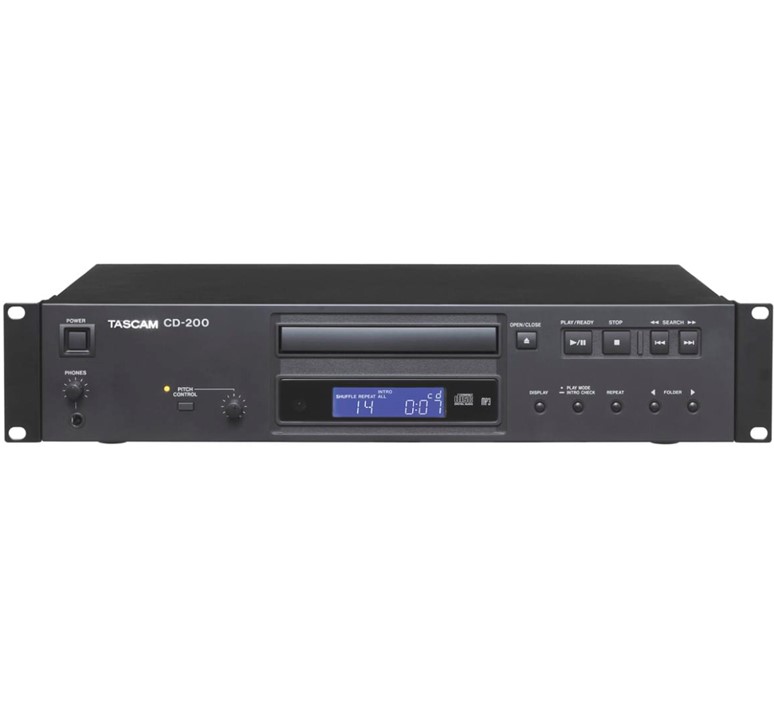

The CD-200 offers a simple, cost-effective solution to installations or PA rental where the extra features of a more complex CD player might go unused.
Yet it provides features such as pitch control with an on/off knob, a headphone output with level control, intro check, anti-shock memory, and a variety of convenient playback modes which can help prevent the user from making a mistake.
The CD-200 can also play back MP3 and WAV files from data CDs and display ID3 tags and CD-Text.

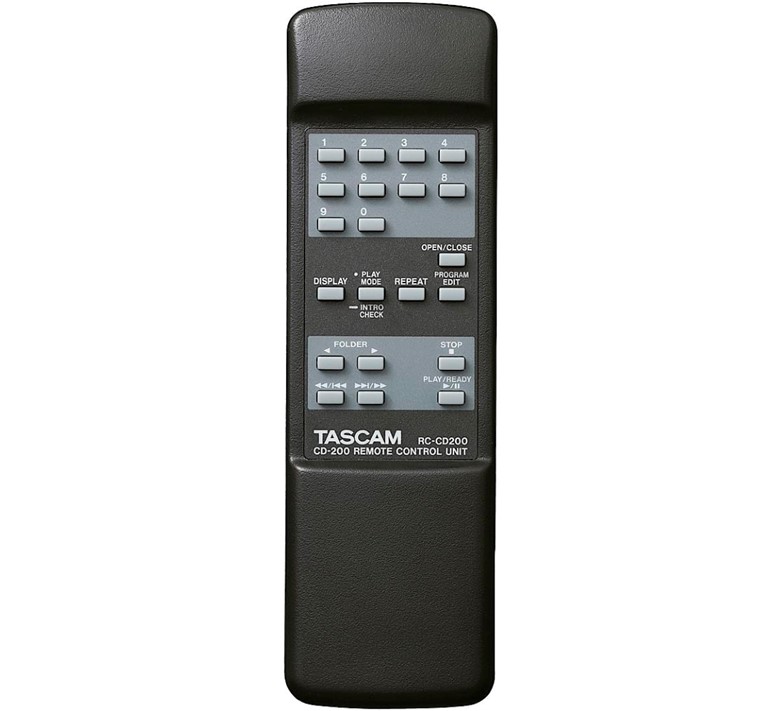

The included wireless remote control gives access to most features and allows a track to be selected directly via a 10-key pad.

The CD-200i has has all of the CD-200’s features plus an additional iPod dock to play files directly from an Apple iPod.
It is further equipped with iPod video and s-video outputs as well as an additional stereo line input on the front for other sources.

Tascam CD-200 and CD-200i: Simple, convenient and reliable!

Main Features:
– CD-200: Easy-to-use, affordable CD player
– CD-200i: CD player with iPod dock and additional line input
– high-quality TEAC drive (supports CD-R and CD-RW)

Audio CD playback:
– MP3 and WAV file playback from CD
– folder selection for MP3 and WAV CD’s
– continuous, Random and Program playback modes
– repeat playback (Single, All, Folder)
– intro check feature
– CD text and ID3 tag support to display artist and track information if available
– time display (CD-DA: Elapsed, Remain, Total Remain; MP3: Elapsed)
– +/- 12.5 % pitch control
– anti-shock memory (10 seconds)
– headphones output with level control
– analogue output (RCA)
– SPDIF digital outputs (coaxial and optical)
– wireless remote control included
– 19-inch rack-mount chassis (2U)

CD-200i additional features:
– iPod dock on the front panel for playback from an Apple iPod

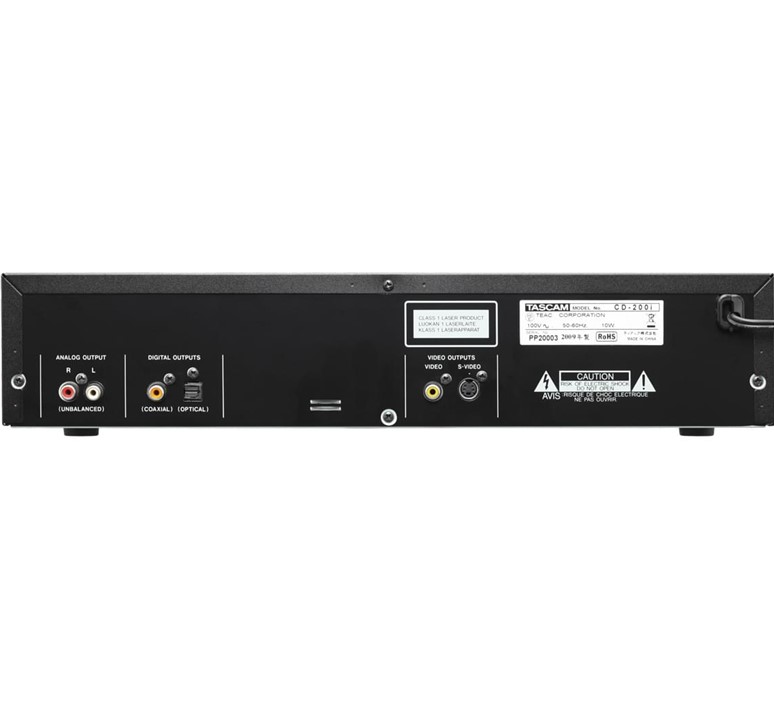

– iPod video and s-video outputs on rear panel
– stereo line input on front panel for audio playback from other unit
– iPod is a trademark of Apple Corporation

Specificaties

– compatible discs CD-R/CD-RW (12-cm/8-cm)
– formats CD-DA, CD-ROM (ISO 9660 Level 1, 2, 3 JOLIET Romeo UDF 1.5), MP3, WAV

MP3 playback specifications:
– audio mode stereo/joint stereo/dual channel/mono/VBR MPEG1 audio layer III (MP3)
– sampling frequency 32 kHz/44.1 kHz/48 kHz Bit rate 32-320 Kbit/s

WAV playback specifications:
– sampling frequency 8 kHz/11.025 kHz/12 kHz/16 kHz/22.05 kHz/24 kHz/32 kHz/44.1kHz/48 kHz
– quantization bit rate 8-bit/16-bit

CD-DA playback specifications:
– sampling frequency 44.1 kHz
– quantization bit rate 16-bit
– number of channels 2 (stereo)

Audio performance:
– frequency response 20 Hz – 20 kHz +/- 1.5 dB
– signal-to-noise ratio (S/N) > 90 dBA (20 kHz LPF)
– distortion (THD+N) < 0.01% (1 kHz: 20 kHz LPF)
– dynamic range 90 dB min.
– channel separation 90 dB min. (1 kHz, 1 kHz BPF)

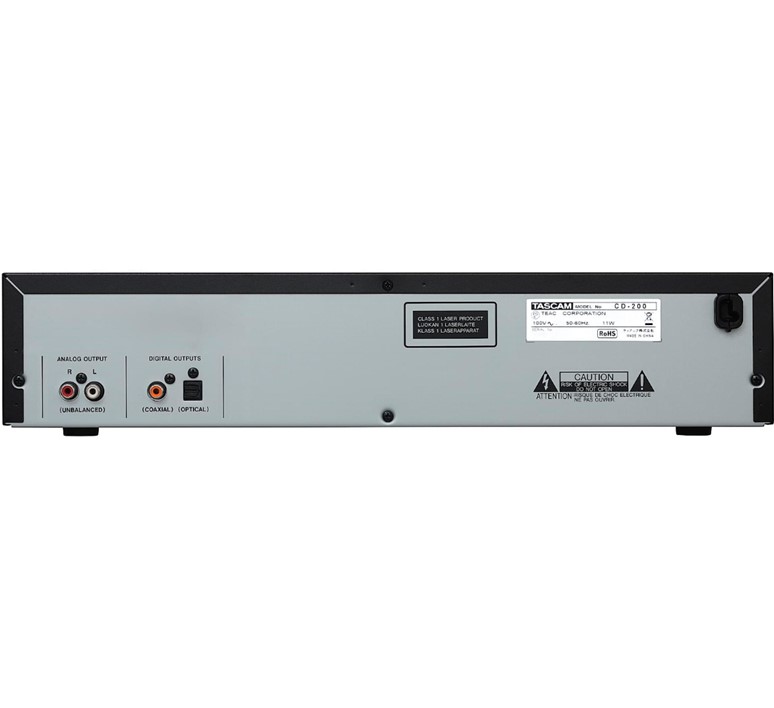

Audio outputs:
– analogue output unbalanced RCA pin jacks
– nominal output level -10 dBV
– maximum output level +6 dBV
– output impedance 200 Ohm

Headphones output standard stereo jack:
– nominal output power 20 mW + 20 mW min. when monitoring CD, THD+N 0.1% max., 32 Ohm load)

Coaxial digital output RCA pin jack:
– compatible signal format IEC-60958-3 (SPDIF)
– output impedance 75 Ohm

Optical digital output Fibreoptic connector:
– compatible signal format IEC-60958-3 (SPDIF)

Other inputs and outputs (CD-200i only):
– aux input unbalanced 3.5-mm stereo mini jack
– nominal input level -16 dBV
– maximum input level 0 dBV
– input impedance 22 kOhm

Video output RCA:
– signal format composite video
– output impedance 75 Ohm
– S-video output 4-pin mini-DIN connector
– signal format separate video signal

Power supply and other specifications:
– power requirements 230 V, 50 Hz
– power consumption 12 W
– operating temperature range +5C to +35C
– inclination of installation 5 degrees or less
– dimensions (W x H x D) 481 mm x 95 mm x 298 mm
– weight CD-200 4,2 kg
– CD-200i 4,7 kg
