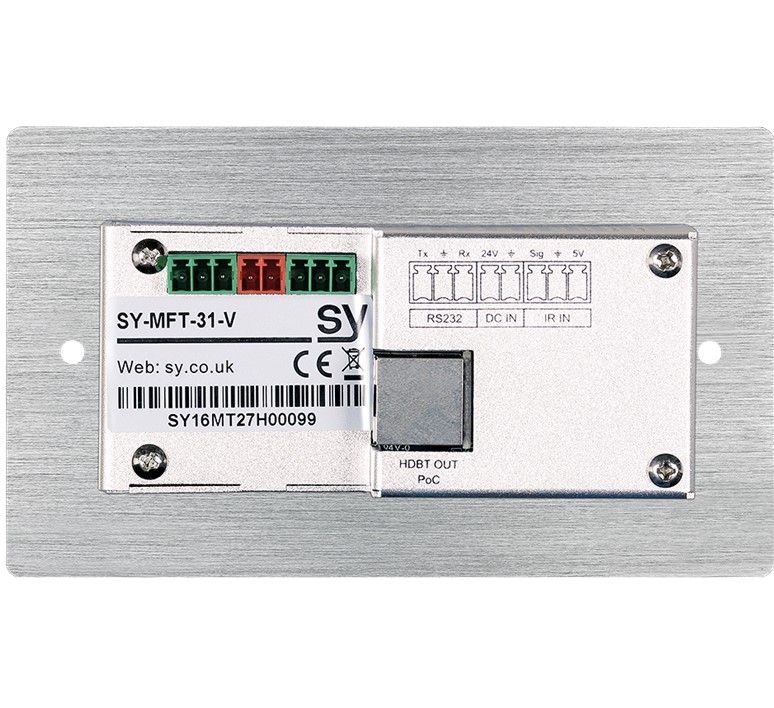

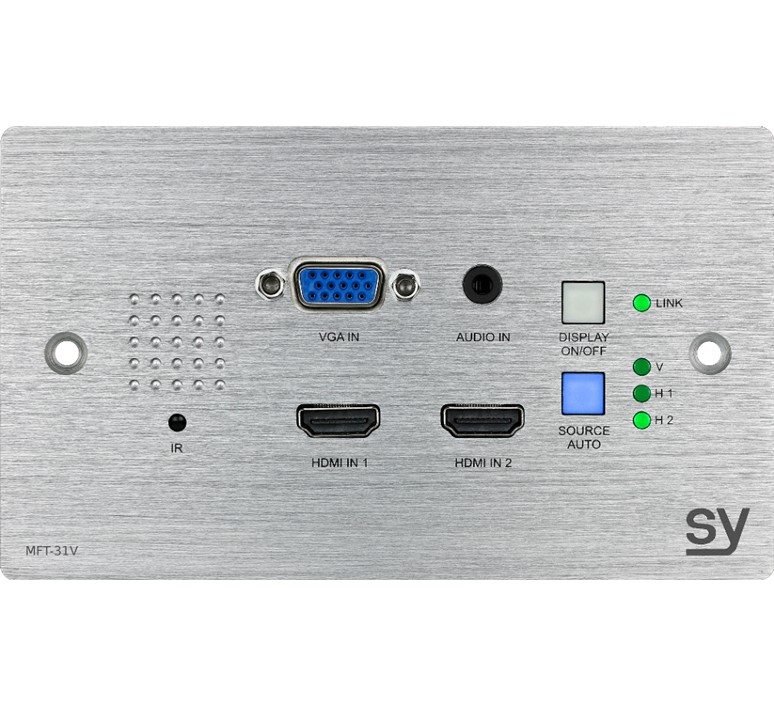

SY SY-MFT-31-VE 2x HDMI & 1x VGA & audio input met HDBT Cat uit tot 4K30 (past in dubbele EU inbouwdoos)

Productbeschrijving

The MFT wall mount range combines elegance with functionality, suitable for education and corporate installations, where a wall mount multi-format extender is required.

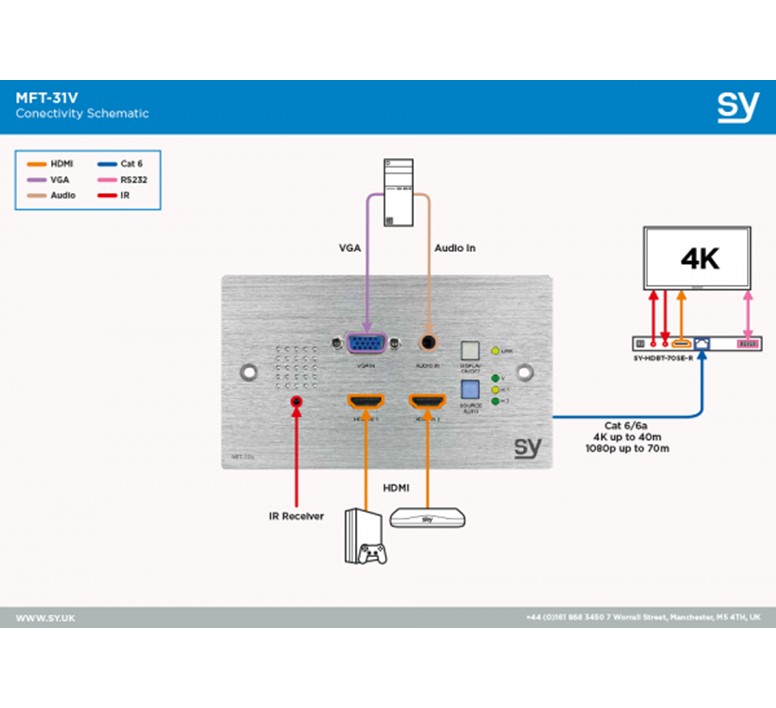

Using VGA or either of the two HDMI inputs, video signal can be scaled and connected to a distant display device such as a large screen or a projector.
It supports 4K60 4:2:0 to 40m or all resolutions up to 1080p to 70m using a single Cat 5/6 cable.
It has been designed to fit standard EU double gang back box.

Features:
– up/down scaled output
– can scale up to 4K30 (default 1080p)
– versatile input selection
– auto, manual or RS232 input selection
– display on/off
– auto/manual display on/off facility (CEC &/or RS232)
– PoC (power over cable) installations
– only a single power supply is required with PoC to/from the remote HDBT-70-SE-R Slim Edge receiver
– bi-directional RS232 and IR input
– bi-directional RS232 control via Phoenix connectors for flexible operation of remotely controlled display and sources
– built-in 70m HDBaseT transmitter
– supports 4K 60 4:2:0 (or 4K30) to 40m, and all resolutions up to 1080p to 70m using a single Cat 6a cable
– HDCP 2.2 and CEC enabled

Specificaties

– 2x HDMI input
– 1x VGA & stereo audio input
– HDBaseT output (70m @ 1080p, 40m @ 4K30)
– up/down scaler
– programmable display on/off capability (RS232 & CEC)
– auto/manual display on/off
– auto/manual input selection
– bi-directional RS232
– IR input (front panel as well as IR input)
– HDCP2.2 and CEC compatible
– LED’s indicate the selected input & HDBT link status
– 12VDC PSU included
– PoC to/from receiver
– data rate 10,2 Gbps
