SY SY-HX150-11-18G Xcalibur-11 HX set met RS-232 tot 150m met PoC (Power over Cable)

Productbeschrijving

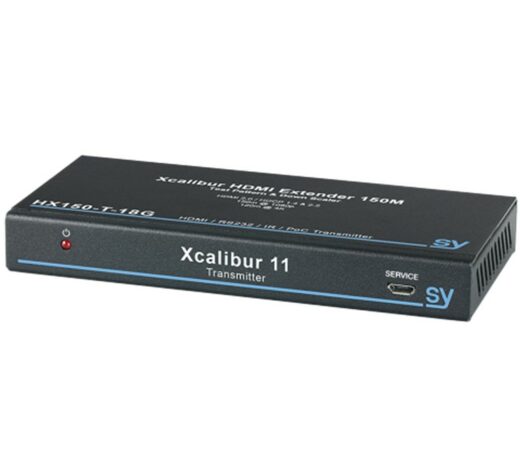

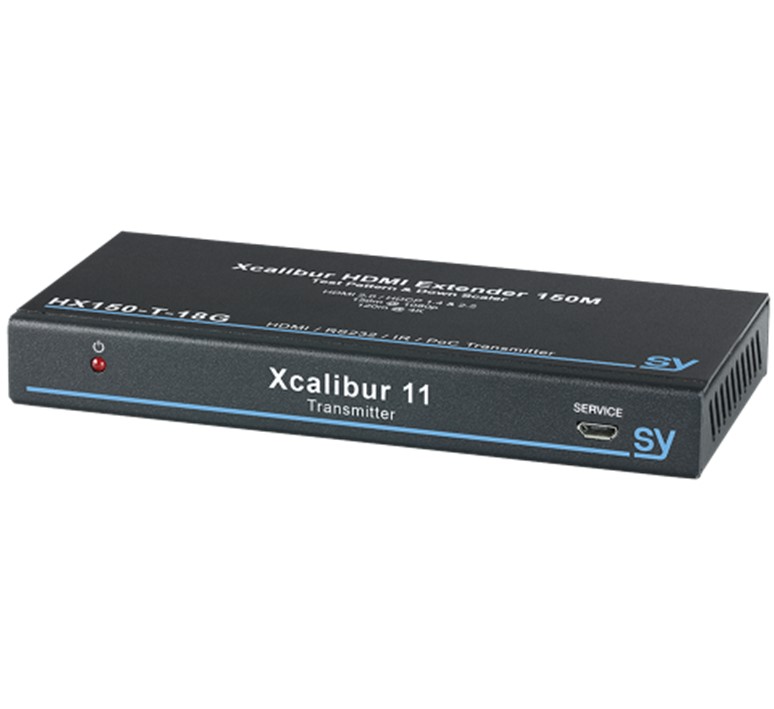

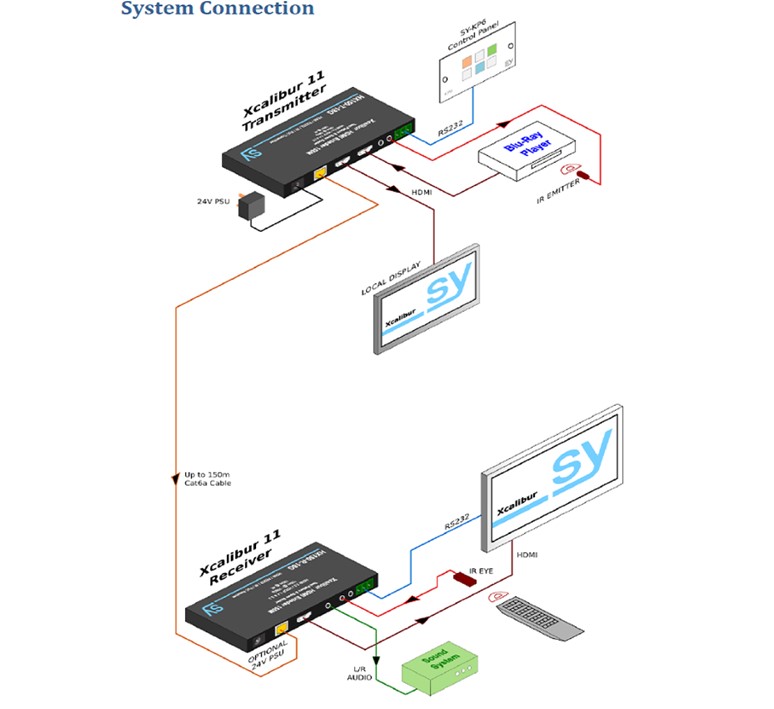

Xcalibur-11 HDMI extender using HX technology:
This amazing extender can extend HDMI 2.0 (4K60 4:4:4) signals to 120m and 1080p signals to 150m.
Furthermore, it supports HDR, HDR10, HDR10+, HLG and Dolby vision, as well as HBR, and all sound formats to 7.1 channels.
Perfect for most professional installations.

The Xcalibur-11 transmitter unit also facilitates a HDMI Loop-out, whilst the Receiver unit provides De-embedded Audio output.
The system is rather feature rich, with some diagnostic tools as well as very useful features.

Xcalibur-11 has many features such as:
Bi-directional IR, RS232 pass-through, RS232 control, down scaling, test pattern generator, VKA, PoC, HDCP and EDID management.
In addition, the receiver unit has an analogue audio de-embed output.

Long range transmission:
It will transmit HDMI 2.0 video signals to 150m @1080p or 120m @4K60 4:4:4 over a Cat6 cable, utilising T568B wiring standard.

HDR:
The Xcalibur product range supports HDR, HDR10, HDR10+, HLG and Dolby vision.

Down Scaling:
The Transmitter unit has a built in down-scaler that may be used in either auto mode (default) or selected manually.
4K signals can be scaled down to 1080p while retaining the refresh rate, (frame rates are always preserved).
As an example, a 4K source can be displayed on a 1080p display automatically while in auto mode.
The HDMI loop-out is a pass-through port, and as such is not affected by the scaler.

HDCP control:
Support and management of HDCP ensures compatibility.
The HDCP can be set independently for the HDMI input, HDMI loop out and HX outputs.
You can convert from HDCP 2.2 down to HDCP 1.4, or simply put the unit into cascade mode no more HDCP issues.

EDID management:
As well as pass-through, there is a user programmable EDID memory option.
The choices include use EDID from user memory, use EDID from HDMI output or use EDID from HX output.
This facility can ensure the video source is optimised to suit the installation.

Test pattern generator:
We have equipped this professional device with an on-board test pattern generator complete with a choice of 6 test patterns including checkerboard or solid colour patterns, at 4K@60, 4K@30, 1080p@60.
Perfect for commissioning or checking all the component parts from the transmitter to the display.

VKA:
The video keep alive option, maintains video output whenever the input video is lost.
This function can be very useful, particularly when used with projectors, which may otherwise shut down and then run a long cool down sequence.
The unit can output a currently selected test pattern to prevent the display device from powering down.
By default, it is in VKA OFF mode.
Other options include VKA timed mode with a user programmable time-out interval of up to 4 hours long or maintained indefinitely until input signal is resumed.

Audio Support:
Pass through of audio signals up to 7.1 channels for connection to a surround sound system with an HDMI input.

Audio de-embedder:
The Receiver unit has audio de-embedding available via a 3.5mm jack as stereo analogue audio.

Control:
The Xcalibur-11 is equipped with pass-through bi-directional IR ports and an RS232 pass through port.
The transmitter/receiver units can also be controlled through the USB interface, to adjust the various parameters.

CEC:
The device will pass through all CEC commands from input to output.

PoC:
Power over cable only one 24V PSU is required to power both transmitter and Receiver units, from either end.

Xcalibur is an innovative product range, comprising of multiple features that complement the HX technology perfectly.
This cost-effective system is ideal for use in all applications including digital signage, education, office displays, meeting rooms, residential including hi-spec home cinema.

Features:
– HDMI 2.0 (18Gbps) 4K60 4:4:4 in and out
– HDMI loop-out + HX outputs
– 1080p to 150m, 4K60 to 120m over Cat6 cable
– HDR, HDR10, HDR10+, HLG and Dolby vision
– down scaler 4K to 1080p
– Bi-directional IR
– RS232 pass-through and control
– CEC pass-through
– audio analogue de-embedder
– EDID and HDCP control/management
– test pattern generator various patterns
– VKA (video keep alive)
– PoC power from either end

Specificaties

– SY-HX150-11-18G Xcalibur-11 set
Transmission distance:
– 1080p to 150m, and 4K to 120m, using cat5e/6/6a/7
– PoC (24V) on all HX outputs

HDMI:
– input: HDMI 2.0 (18 Gbps) – HDR, HDR10, HDR10+, HLG and Dolby vision formats supported
– output: HDMI 2.0 (18 Gbps) – HDR, HDR10, HDR10+, HLG and Dolby vision formats supported

HDCP compliance:
– input HDCP accepts all versions up to HDCP 2.2
– output HDCP fully controlled pass through, 1.4, 2.2, cascade mode

Resolutions/formats:
– input resolutions all HDMI and PC resolutions up to 4K2K 60Hz 4:4:4

Colour Space:
– pass through of RGB, YCbCr 4:4:4, 4:2:2, 4:2:0

Colour depth:
– 8, 10, 12 bits

Scaler:
– down-scaling resolution 4K inputs scaled down to 1080p

Audio formats supported:
– 2.0 / 2.1 / 5.1 / 7.1 channel LPCM, Dolby, AC3, DTS

De-embedded audio out receiver:
– 3,5mm jack socket analogue stereo (L/R)

Control:
– IR In, IR out universal, 25-60 KHz carrier frequency
– RS232 pass-through Tx, Rx any baud rate to maximum of 115200

RS232 control:
– USB service port settings
– 115200 baud, 8 data bits, 1 stop bit, no parity – for all control commands through the USB service port

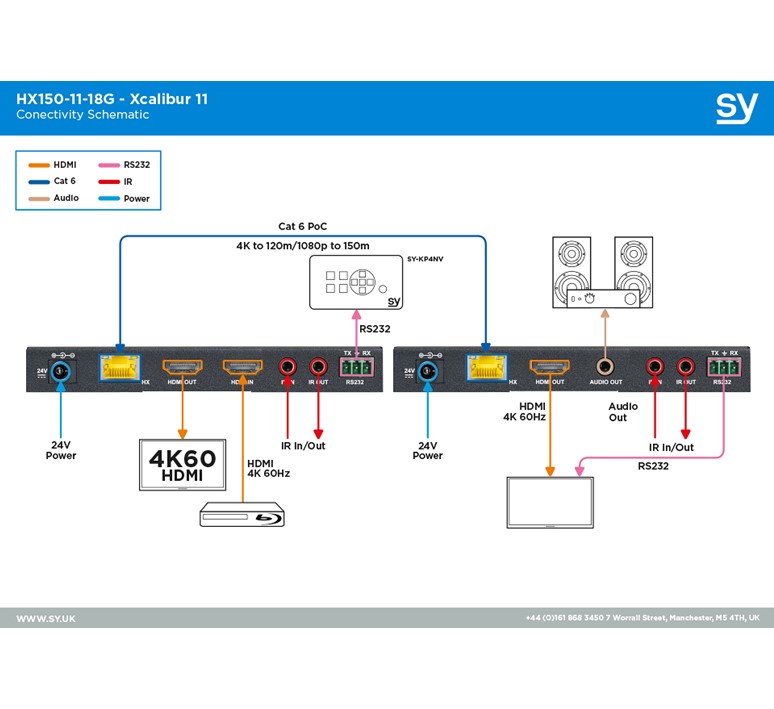

Connectors:
– SY-HX150-11-18G transmitter:
1x Micro USB for configuration or update
1x RJ45 HX output
1x HDMI output loop output to local display
1x HDMI input input from the Source device
1x 3-way screw terminals for bi-directional RS232 pass through
1x 3,5mm TRS IR input
1x 3,5mm TRS IR output
1x 24V DC power input (2,1mm barrel jack)

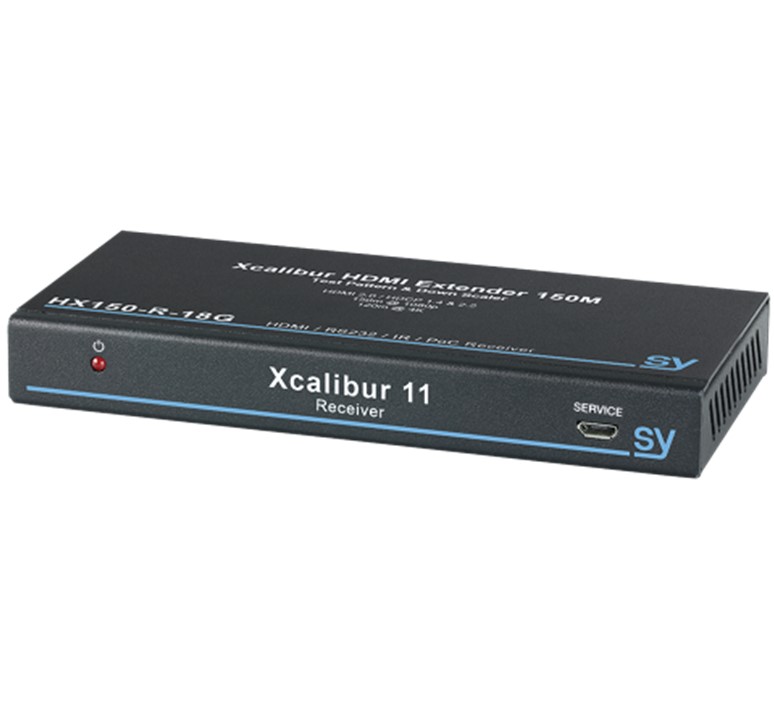

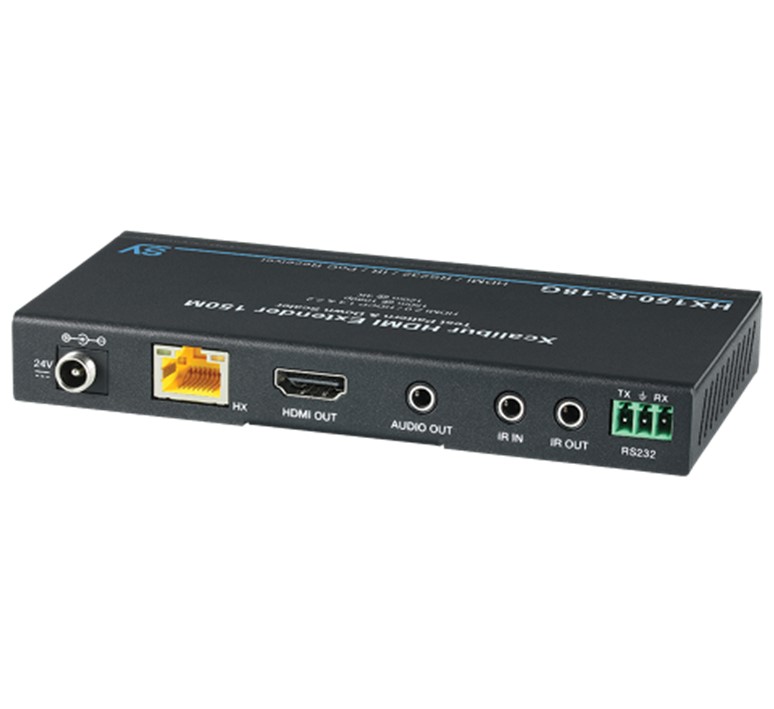

– SY-HX150-11-18G receiver:
1x Micro USB for configuration or update
1x RJ45 HX input
1x HDMI output to display device
1x 3,5mm TRS audio output analogue stereo L/R audio
1x 3-way screw terminals for bi-directional RS232 pass through
1x 3,5mm TRS IR output
1x 3,5mm TRS IR input
1x 24V DC power input (2,1mm barrel jack)

Power:
– power consumption 2,75W transmitter, 7,25W receiver 10W max. transmitter + receiver
– power supply 24V 1A DC (2,1mm barrel jack)
– operating temperature range 0 – +40C
– operating humidity range 10 – 90% RH non-condensing
– dimensions W x D x H 140 x 65 x 18mm
– weight each unit 250gr

What is in the box:
1x SY-HX150-11-18G T
1x SY-HX150-11-18G R
2x pairs of mounting plates
2x 3-way screw terminal connectors
1x IR emitter
1x IR receiver
1x 24V 1A power supply
1x user manual
