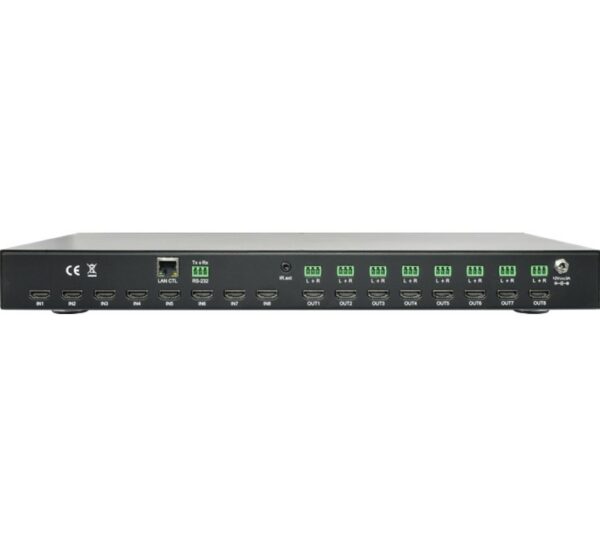

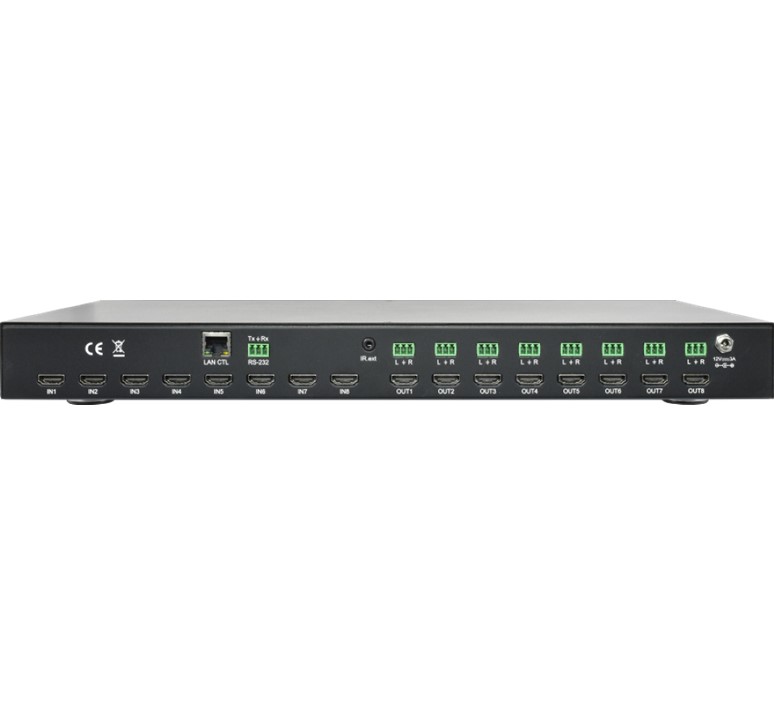

SY Electronics 4K UHD 8 x 8 HDMI matrix, audio de-embedder per uitgang, HDCP management, EDID control, bediening voorkant, IR, RS232 & TCP/IP

Productbeschrijving

This SY-MUHD-88 8-by-8 HDMI true matrix allows any source (Blu-Ray player, Android box, satellite receiver, game system, etc.) to be shown on any of the eight displays simultaneously, equalising and amplifying the HDMI outputs to ensure the HDMI signal can be transmitted through a long cable (up to 15m) without loss of quality.
This can be achieved irrespective of whether the source is HDCP compliant or not.

Features:
– a cost effective distribution switching platform
– robust build quality combined with a superior power supply
– full EDID management facility
– ensure accuracy and superior refresh rates with full EDID controls
– complete control
– operate all functions via IR, RS232 and LAN
– audio de-embedder
– use Phoenix connectors to de-embed analogue audio or use HDMI output to de-embed digital audio to AV receivers
– combine with SY’s extenders
– extend transmission range up to 100m

Specificaties

– 8 HDMI inputs
– 8 HDMI outputs
– true matrix any input to any or multiple outputs
– analogue & digital de-embedded audio outputs
– RS-232 contol

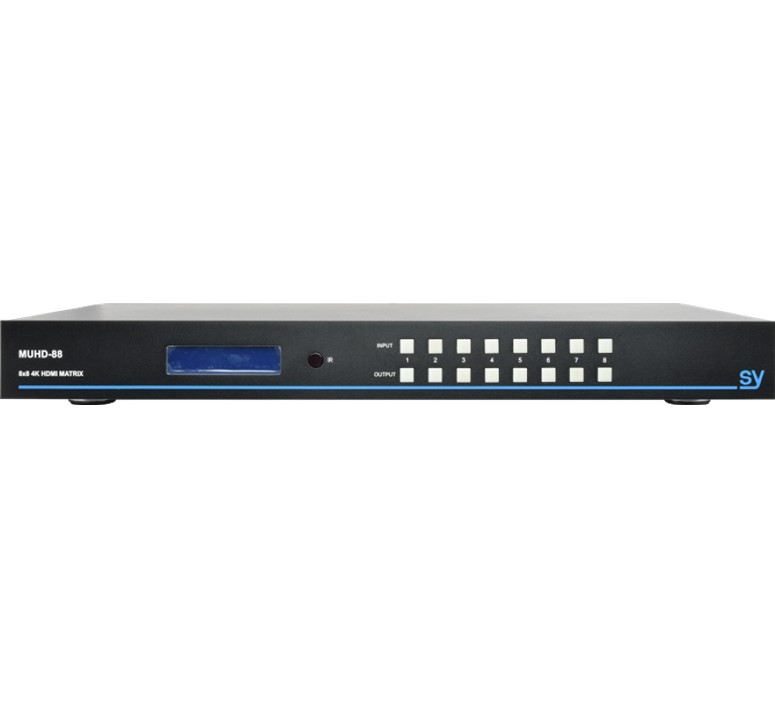

– front panel control
– infrared control
– 1U rackmount chassis
– EDID management
– HDMI 1.4
– HDCP 2.2 compliant
– data rate 10.2Gbps
– weight 2,4kg
– input video signal 0,5-1,0V p-p
– input DDC Signal 5V p-p (TTL)
– signalling rate 3,40Gbit/s/channel
– video format supported DTV/HDTV 4K60/4k30/1080P/1080i/720P/576P/480P/576i/480i
– output video HDMI 2.0 and HDMI 1.4
– audio format supported (HDMI) DTS-HD, Dolby trueHD
– maximum transmission distance less than 15m
– communication ports RS232, IR, Ethernet
– RS-232 settings baud rate 57600
– 8 data bits
– parity none
– 1 stop bit
– no handshaking
– supply voltage 12VDC
– power consumption 15W (max.)
– operating temperature range 0 to +35C
– operating humidity range 15 to 90%RH (non-condensing)
– dimensions W 440 x D 256 x H 42mm
– 19” rack height 1U
