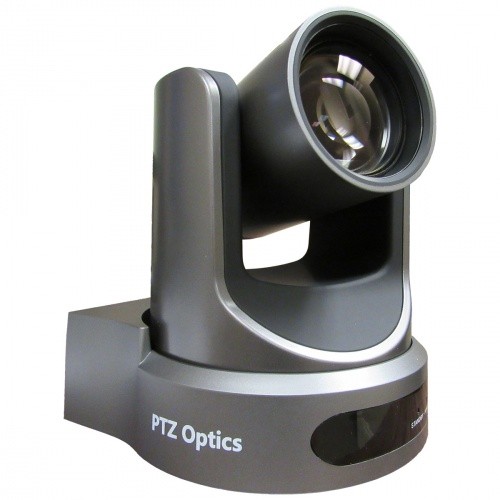

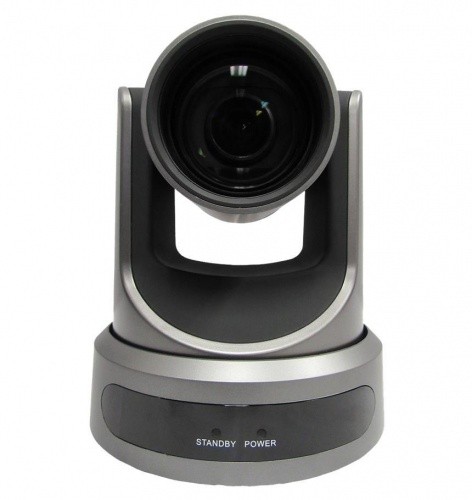

PTZ Optics 12x-SDI-GY G2 12x optische zoom 3G-SDI, HDMI, CVBS, IP 1920 x 1080p 72,5o grijs

Productbeschrijving

The PTZOptics 12X-SDI is a 1080p camera with 12X optical zoom for capturing both wide angles and long shots.
With support for SDI, 3G-SDI, HDMI, and IP streaming (H.264, H.265, & MJPEG), this camera is ideal for broadcasting high definition video signals for broadcast, recording, or video conferencing applications.

Features:
– 72,5 degree wide-angle lens
– high performance in low light scenarios with wide dynamic range
– full 1920 x 1080p HD resolutions up to 60 frames per second
– 2D and 3D noise reduction with our latest “low noise CMOS sensor”
– RS232 & RS485 (serial), IP (LAN/WAN), & SDI
– H.264, H.265, & MJPEG streaming over RJ-45 LAN port
– HDMI, 3G-SDI or IP streaming (3 simultaneously)
– PoE (power over ethernet) or 12VDC
– RTMP, RTSP

Specificaties

– sensor 1/2,7″ CMOS sensor, 2,12MP
– resolution 1920 x 1080
– frame rate (fps) 1080p 60/50/30/25, 1080i 60/50/30/25, 720p 60/50/30/25
– lens F3,5 to 42,3mm, f/1,8 to f/2,8
– optical zoom 12x
– field of view 72,5o
– minimum Lux 0.5 lux at F1.8, AGC ON
– shutter speed 1/30s tp 1/10000s
– SNR > 55dB
– pan movement +/- 170o
– tilt rotation up 90o down 30o
– presets 10 IR presets (255 via serial or IP)

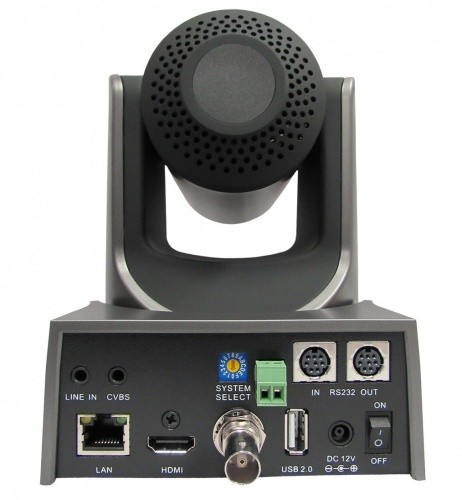

– video output HDMI, 3G-SDI, IP streaming, CVBS
– network interface RJ45
– audio interface line in 3,5mm (HDMI & IP stream only)
– communication interface RS-232, RS-485
– baud rate 2400/4800/96,000 bits
– USB 2.0 interface
– power supply interface JEITA type power adapter
– 12W maximum
– input voltage 12V/DC (10,8 to 13,0V/DC)
– dimensions 14 x 16,5 x 17cm (20 cm) with tilt up)
– weight 1,41kg
