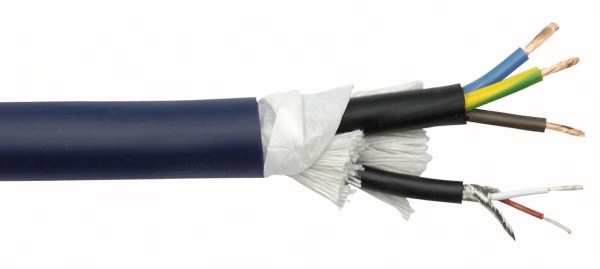

PMC-216 Powercore & Symmetric Linecable for Audio & DMX

Productbeschrijving

Specificaties

– conductor drains mm OFC 20×0,10 (NF) & 3×1,5 (power)
– conductor insulation PE red+white & PVC black (power)
– conductor insulation 1,3mm (NF) & 3,7mm (power)
– filler material paper+cotton yarn
– 1st shield twisted tinned copper NF 96x 0,10
– outer isolation PVC matte black
– outer isolation 4mm (NF) & 12mm (power)
– conductor resistance 80 Ohm/Km
– shield resistance 30 Ohm/Km
– capacity inner conductor 60 pF/m
– capacity inner cond shield/inner cond 78 pF/m
– working temperature min/max -20 – 60C
– working voltage overflash 30V
– nom impedance 110 Ohm
