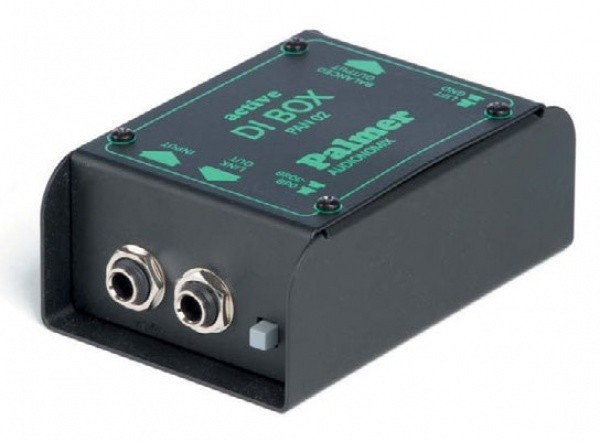

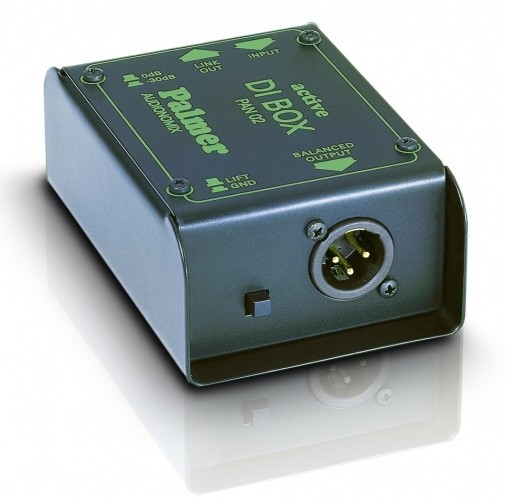

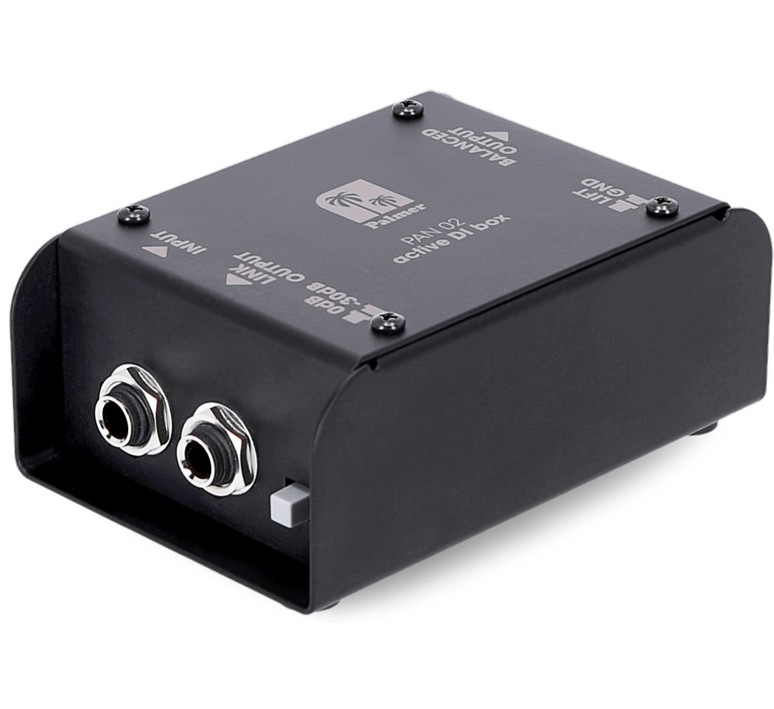

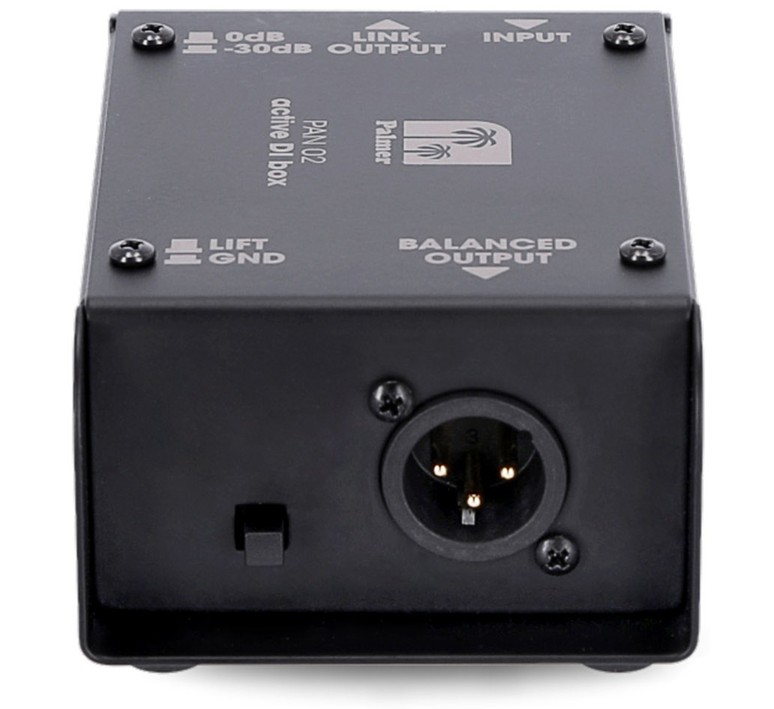

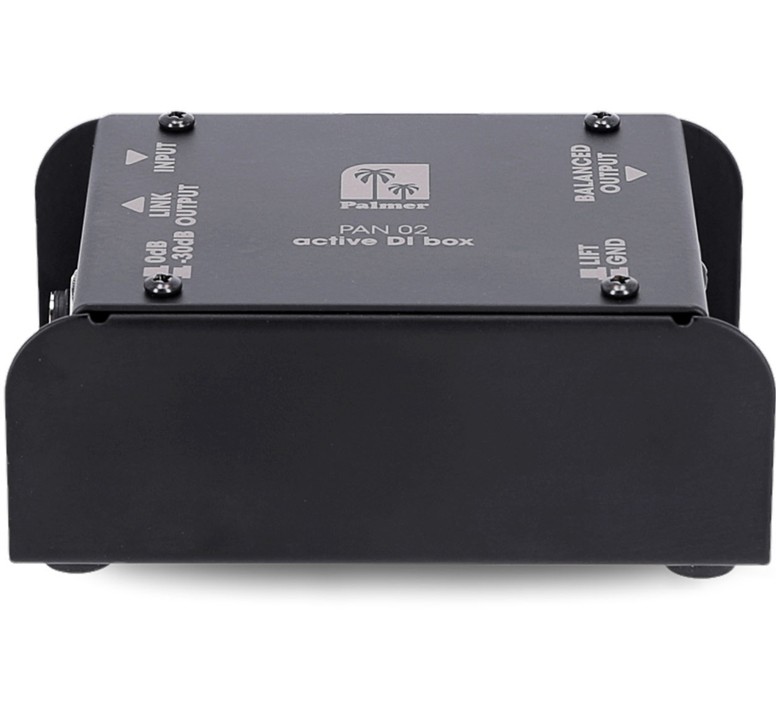

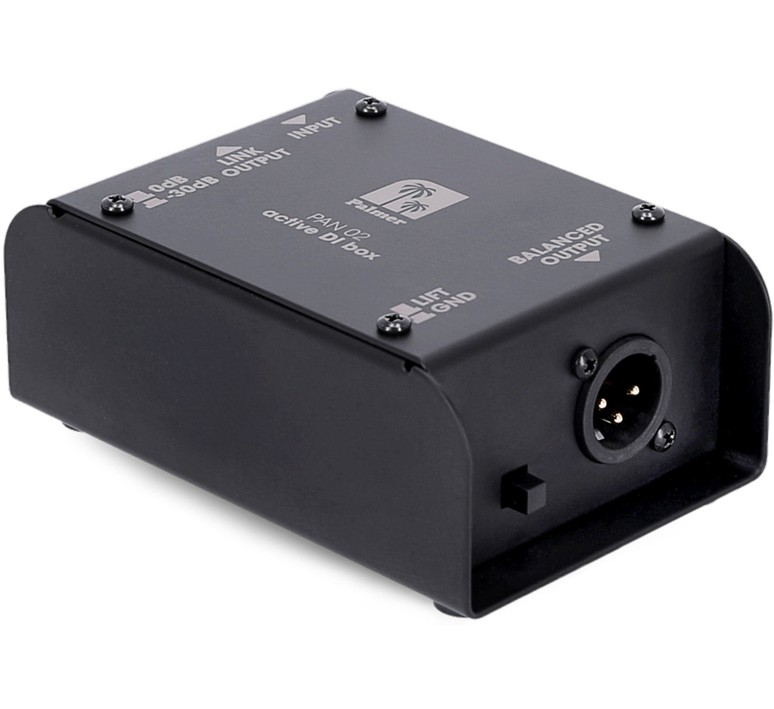

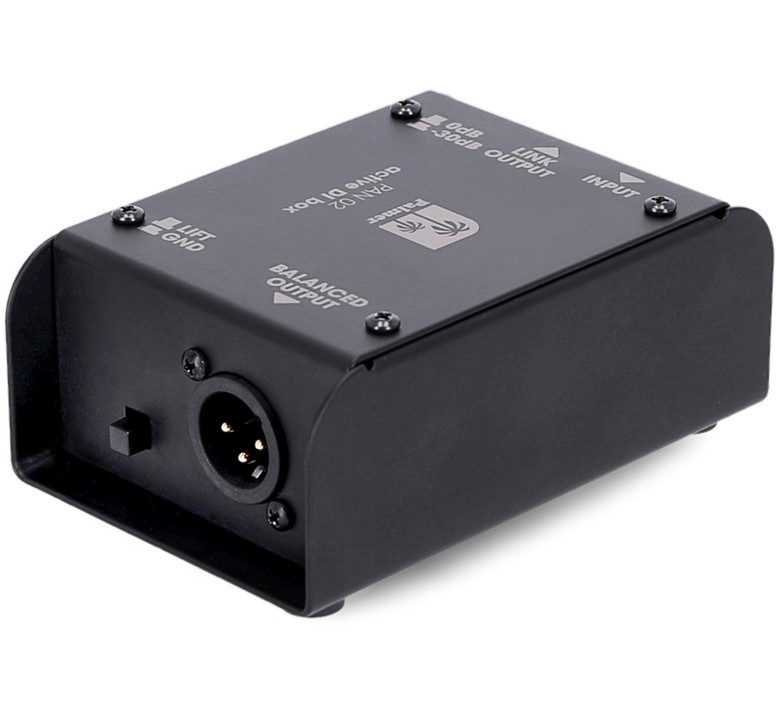

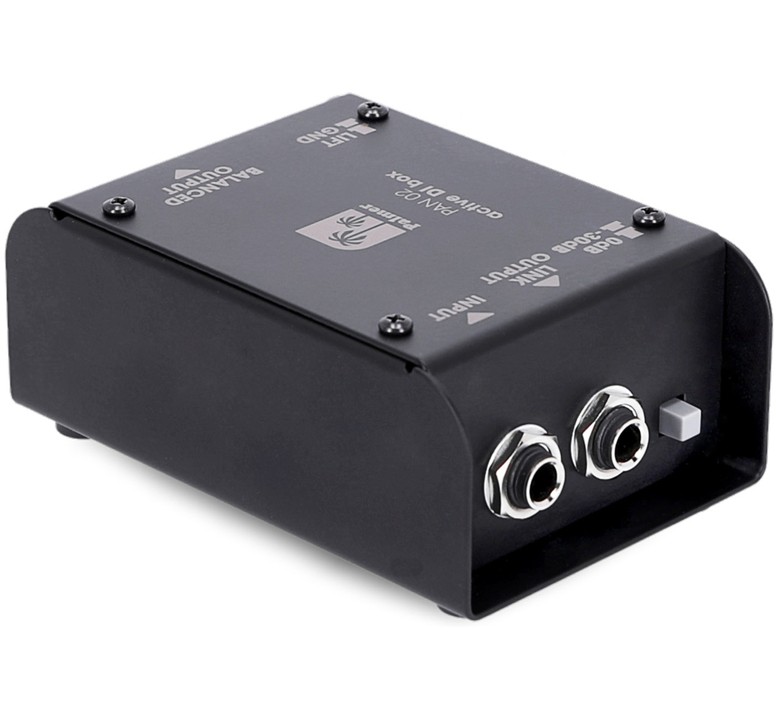

Palmer PAN-02 actieve DI box

Productbeschrijving

Standard active DI box.
Can be operated with 9 V batteries or 48 V phantom power.

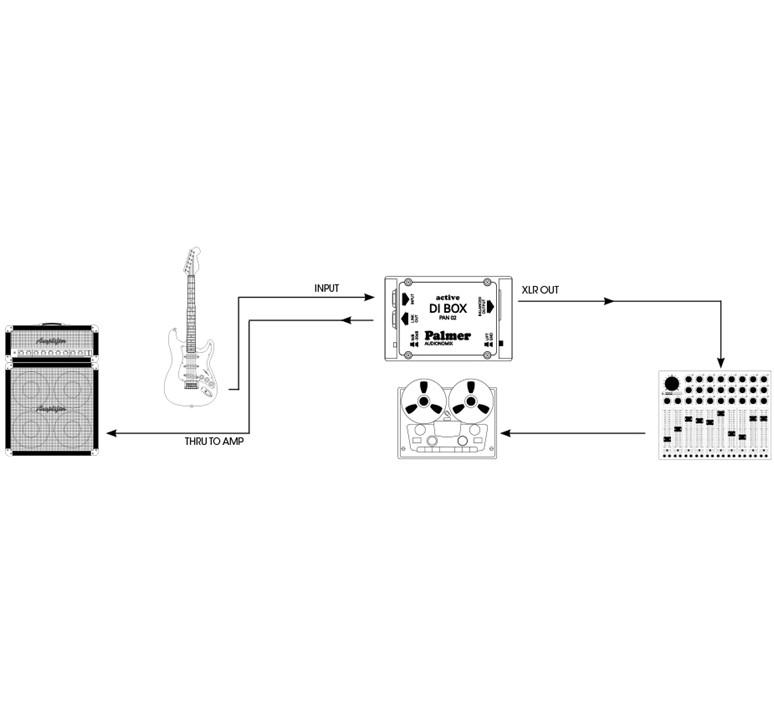

High-impedance input; higher output level than with a passive DI box.
Active circuitry allows for high input impedance ( 1 meg. ohm) and higher input sensitivity (typical difference between in and out -4 dB).
Maximum output impedance with phantom power operation +10 dB.
Output: transformer balanced.
The special “floating ground” circuitry enables ground lift even during phantom power operation.

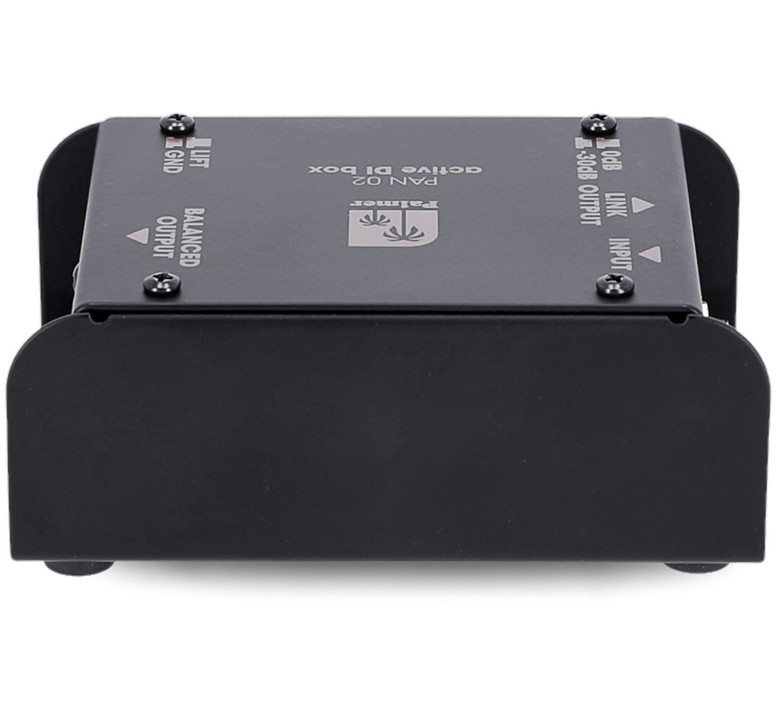

Metal case 110 x 73 x 42 mm.

Technical Info:
– 1 kanaal
– actief

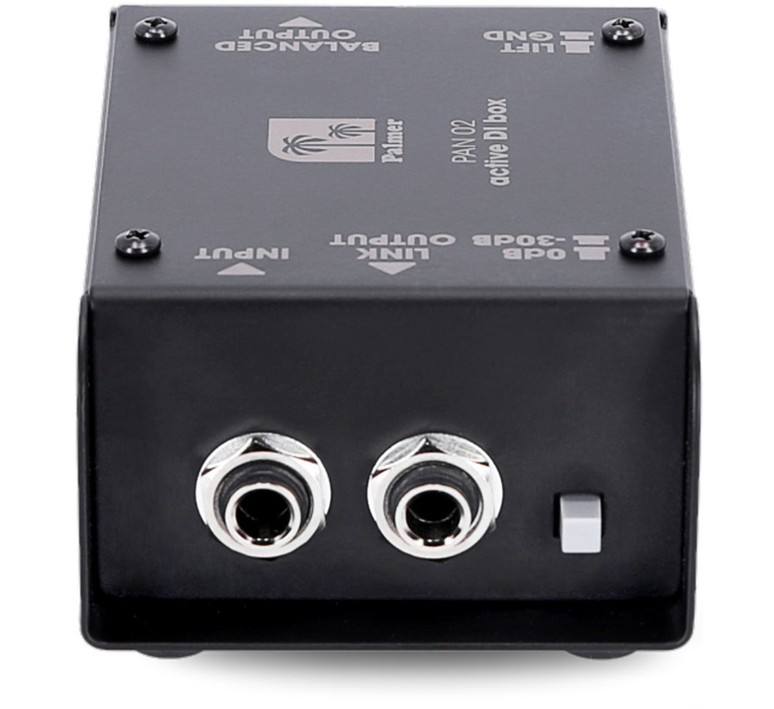

– 1x Jack 6,3mm ingang
– 1x XLR male / 1x Jack 6,3mm uitgang
– ground lift
– frequentiebereik 10Hz – 20kHz
– Pad filter 0, -30dB
– kleur zwart
– voeding 9V batterij / 48V phantom power
– afmetingen (hxbxd): 42mm x 73mm x 110mm
– materiaal metaal
