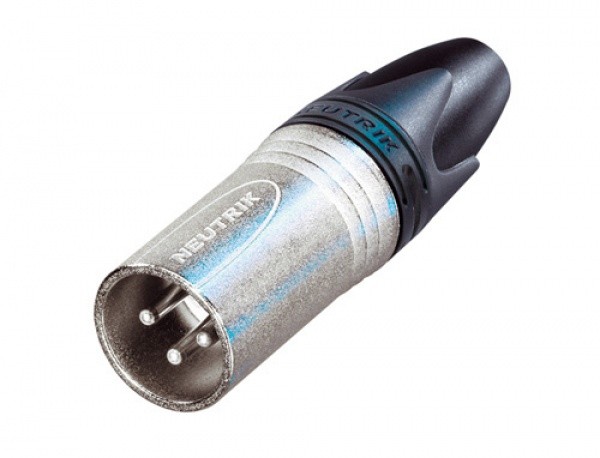

Neutrik XLR male steker 3p

Productbeschrijving

LET OP:
In verband met het milieu is dit een BULK verpakking (per 100 stuks verpakt) als u er minder dan 100 besteld worden ze als losse onderdelen geleverd.
Dus niet per stuk in plastic verpakt!

The next generation of the worldwide accepted standard of XLR cable connectors.
The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.

3 pole male cable connector with Nickel housing and silver contacts.

Features & Benefits:
– Male connector with improved locking recess without “window”, more stringent housing
increases durability
– Improved chuck type strain relief provides higher pull-out force and makes assembly easier
and faster
– Boot with polyurethane gland gives high protection to cable bending stresses
– Colored rings and boots available for coding or identification
– Sleek and ergonomic design – valuable and handy
– Rugged zinc diecast shell, longlasting and dependable
– Internal thread on shell is well proteced against any damage

Specificaties

– Connector Type XLR
– Gender male
– Capacitance between contacts = 4 pF
– Contact resistance = 3 mO
– Dielectric strength 1,5 kVdc
– Insulation resistance > 2 GO (initial)
– Insulation resistance > 1 GO (after damp heat test)
– Rated current per contact 16 A
– Rated voltage 50 V
– Cable O.D. 3.5 – 8.0 mm
– Insertion force = 20 N
– Withdrawal force = 20 N
– Lifetime > 1000 mating cycles
– Wire size max. 2.5 mm
– Wire size max. 14 AWG
– Wiring Solder contacts
– Locking device latch lock
– Boot Polyuretan
– Bushing Polyamide (PA 6 15% GR)
– Contact plating 2 um Ag
– Contacts Brass (CuZn39Pb3)
– Insert Polyamide (PA 6.6 30 % GR)
– Locking element Zinc diecast (ZnAl4Cu1)
– Shell Zinc diecast (ZnAl4Cu1)
– Shell plating Nickel
– Strain relief Polyacetal (POM)
– Flammability UL 94 HB
– Standard compliance IEC 61076-2-103
– Protection class IP 40
– Solderability Complies with IEC 68-2-20
– Temperature range -30C to +80C
