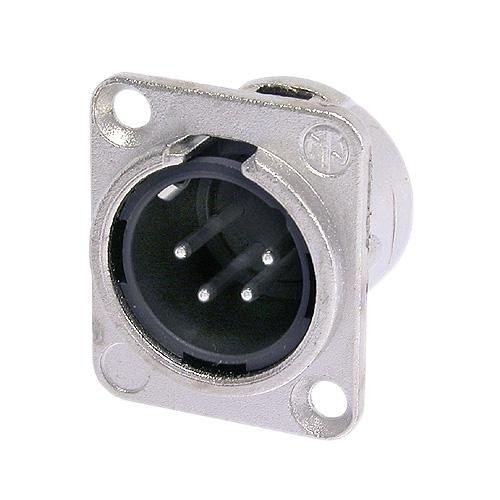

Neutrik XLR male chass.deel 4p

Productbeschrijving

Universal D-size metal body XLR panel mount series. UL recognized component.

4 pole male receptacle, solder cups, Nickel housing, silver contacts

Features & Benefits:
– Robust “D” metal shell
– Standardized D sized 24 mm panel cutout
– Solder cups on 3 – 7 pole version

Specificaties

– Connector Type XLR
– Gender male
– Capacitance between contacts = 7 pF
– Contact resistance = 5 mO
– Dielectric strength 1,5 kVdc
– Insulation resistance > 2 GO (initial)
– Insulation resistance > 1 GO (after damp heat test)
– Rated current per contact 10 A
– Rated voltage 50 V
– Insertion force = 20 N
– Withdrawal force = 20 N
– Lifetime > 1000 mating cycles
– Wire size max. 1.5 mm
– Wire size max. 16 AWG
– Wiring Solder contacts
– Locking device latch lock
– Mounting direction front & rear
– Chassis shape D
– Contact plating 2 um Ag over 2 um Ni
– Contacts Brass (CuZn39Pb3)
– Insert Polyamide (PA 6.6 30 % GR)
– Locking element Steel Ck67
– Shell Zinc diecast (ZnAl4Cu1)
– Shell plating Nickel
– Approvals UL
– Flammability UL 94 HB
– Standard compliance IEC 61076-2-103
– Protection class IP 40
– Solderability Complies with IEC 68-2-20
– Temperature range -30C to +80C
