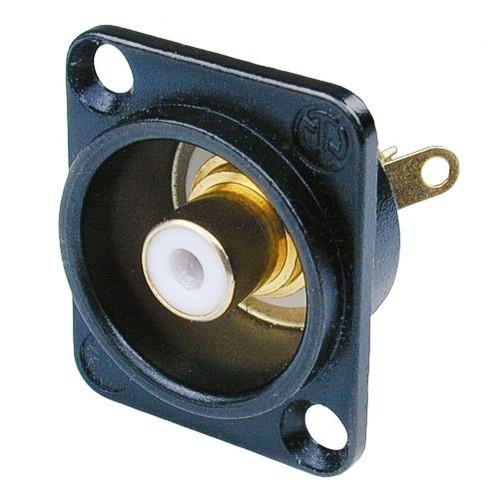

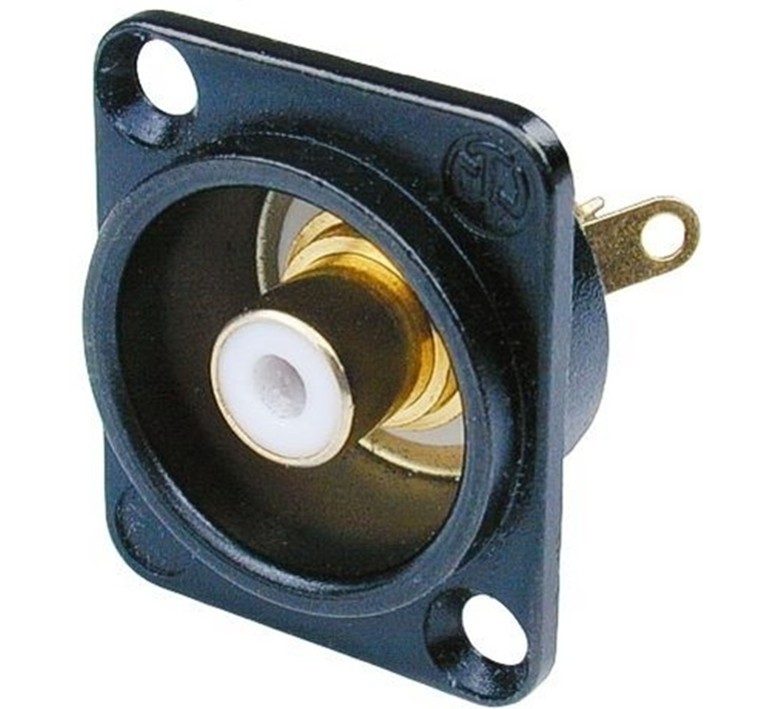

Neutrik tulp/RCA wit chassisdeel D-gat zwart

Productbeschrijving

Specificaties

– connector type RCA
– gender female
– capacitance between contacts = 9 pF
– contact resistance <5G mOhm
– dielectric strength 0,5 kVdc
– insulation resistance < 5 GOhm
– rated current per contact 16 A
– rated voltage 50 V
– lifetime > 2000 mating cycles
– wiring solder contacts
– mounting direction front
– chassis shape D
– contact plating 5 um Au over 5 um Ni
– contacts Brass (CuZn39Pb3)
– shell zinc diecast (ZnAl4Cu1)
– flammability UL 94 HB
– standard compliance IEC 601-14
– protection class IP 40
– solderability complies with IEC 68-2-20
– temperature range -30C to +80C
