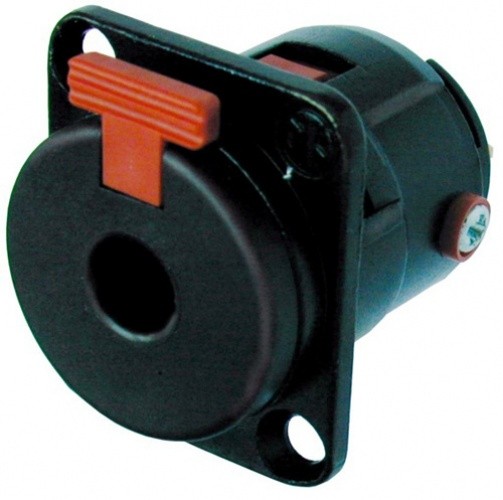

Neutrik chass. deel Jack stereo “D” gat zwart

Productbeschrijving

The 3 pole phone jack panel mount version provides stable and secure connections where accidental disconnect or shock and vibration may occur.
It latches with standard A-gauge mono or stereo plugs.
Plug locks-in automatically when mating and unlocks only by pressing red release tab.
Standard D size front panel appearance. Selectable grounding options.

Specificaties

– Securely locking chassis jack
– Mates with all mono and stereo plugs specified acc. EIA RS-453 (A-gauge)
– Closable grounding options: standard isolated, to get a sleeve/panel connection red isolator on lateral screw must be removed
– Dimensionally compatible with D Series (31 x 26 mm)
– Solder terminals
– Gender female
– Contact resistance < 6 mO (initial)
– Dielectric strength 1 kVdc
– Insulation resistance = 1 GO @ 500 V dc
– Rated current per contact 10 A
– Insertion force < 20 N
– Withdrawal force < 20 N
– Lifetime > 10000 mating cycles
– Locking force > 80 N
– Wire size 1 mm
– Wire size 18 AWG
– Wiring Solder contacts
– Locking device latch lock
– Mounting direction front
– Chassis shape D
– Contact plating 2 um Ag
– Contacts Bronze (CuBe2)
– Contacts Brass (CuZn37) (Ground)
– Insert Polyamide (PA 6.6 30 % GR)
– Shell Zinc diecast (ZnAl4Cu1)
– Shell plating Black
– Strain relief Polyacetal (POM)
– Standard compliance EIA RS 453, IEC 60603-11
– Solderability Complies with IEC 68-2-20
– Temperature range -25C to +70C
