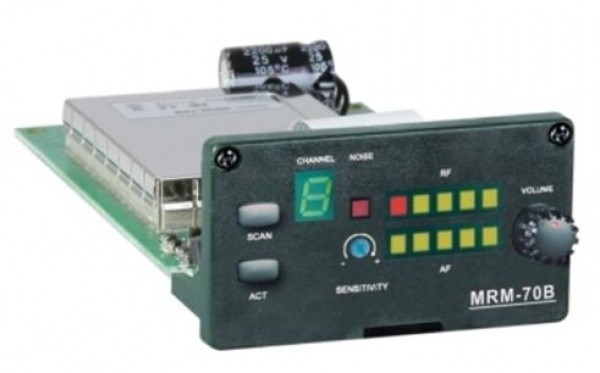

Mipro MRM-70B (5NB) enkele draadloze microfoon ontvanger t.b.v. MA-707PAD, MA-505

Productbeschrijving

The modular receiver design allows for fast and easy installation or replacement of Mipro MA-705, MA-707, MA-708 and MA-808 portable PA systems.
When installed, master level control enables volume be wirelessly controlled by an ACT-32HR transmitter microphone instead of a separate remote. (MA-708 & MA-808 portables).
Installation or replacement takes less than a minute.

Features:
– advanced diversity technology for optimum reception quality
– preset with 16 auto-scannable frequencies
– one-touch scan for a clear, interference-free frequency
– one-touch ACT syncs the transmitter and receiver frequency automatically
– interference warning indicator
– sensitivity adjustor can be adjusted to minimize interference
– easy-to-read LED channel display
– 5-segment RF and audio meters
– dual pilottone & noise lock circuits minimize interference
– modularized design allows easy installation and replacement

Specificaties

– frequency range UHF 480 – 934 MHz
– bandwidth 24 MHz
– preset channels 16
– channel set-up scan & ACT sync
– receiving mode CPU-controlled diversity receiving
– oscillation mode PLL synthesized
– frequency stability < +/- 0,005% (-10 - +60C)
– deviation < +/- 40kHz
– sensitivity 10 dBuV at S/N > 80 dB
– S/N ratio > 100dBA
– THD < 0,5% @ 1 kHz (Dev.=32 kHz)
– frequency response 60Hz – 15kHz (overall system)
– squelch pilo tone & noise lock dual-squelch circuits
– spurious emissions < 82 dB
– audio output 610mV/rms
– power supply 12 – 15V/DC
– current consumption < 250 mA
– dimensions W x H x D 75 x 35 x 141mm
– weight approx. 126gr
– operating temperature -10 – +60C
