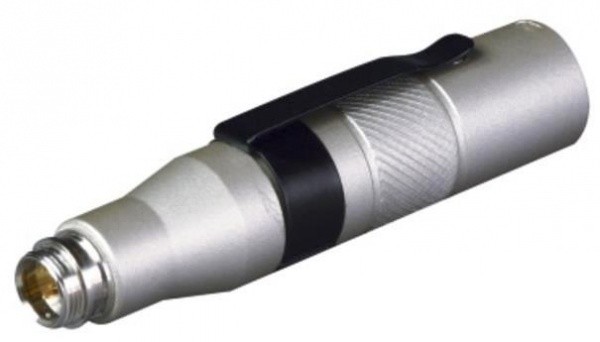

Mipro MJ-53 condensator microfoon adapter XLR male > 4p mini XLR female t.b.v. Mipro hoofdmicrofoons

Productbeschrijving

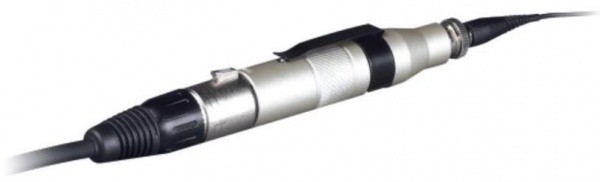

MJ-53 enables a condenser microphone with mini XLR plug to connect directly to the XLR jack input of a mixer which provides 12 – 48V/DC phantom power.
The high output impedance of a condenser microphone will be transformed to low output impedance at about 200 Ohms.

Features:
– balanced output for wide frequency response
– suitable for any mixer input due to constant output impedance
– high S/N ratio prevents noise interference in long distance transmission
– high dynamic range ensures accurate output level
– no overload distortion under high SPL input
– mini XLR connector for input and XLR connector for output
– belt clip for easy wearing
– gugged metal housing ensures a long operating life

Specificaties

– frequency response 80Hz (-3 dB) – 20 kHz (0 dB) @ 94 dB SPL
– output impedance balanced 200 Ohm @ 1V/1 kHz
– max. output voltage 2,52V @ 1% Thd 1 kHz
– dynamic range 120dB A-weighting
– power supply phantom power 12 – 48V/DC
– current drain 2,0mA
– dimensions 19 x 92mm
– weight approx. 72gr
Note: refer to actual product in the event of product discrepancy
