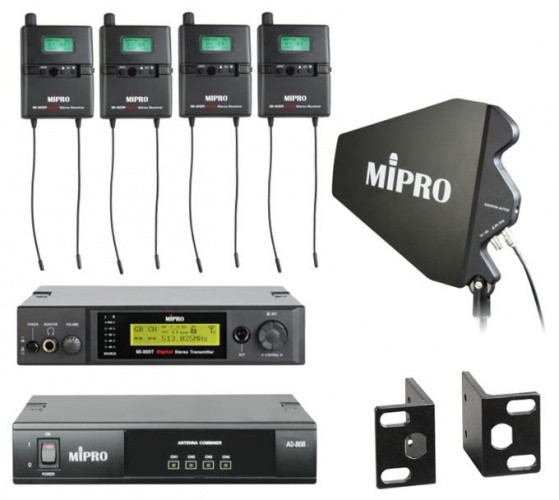

Mipro Digitale MI-909 in-ear monitor PRO set: 4x MI-909R 4x MI-909T 2x FB72 1x AD808 1x AT90TW

Productbeschrijving

MI-909 is an industry first, professional quality digital wireless stereo IEM system.
Featuring digitally encrypted technology with unparalleled digital audio performance and transmission reliability, the superior frequency response characteristics of the MI-909 from 20Hz to 15 kHz clearly exceed those of analog systems.
Combining DSP & digital diversity technologies, this upgraded MI-909 system has advanced features and functions that supersede its competitors.

Features:
– EIA-standard half-rack 19″ metal case, LCD screen display
– rotary control knob for advanced menu settings and dual audio
– LED indicator lockable front panel
– up to 16 compatible channels within the same frequency group
– selectable encryption keys with scroll or static setting for single or multiple receivers
– selectable HI, LOW or OFF (mute) output power
– high dynamic range, stereo audio inputs
– able to withstand the maximum output levels of professional audio mixers
– built-in DSP 3 band +/- 9 dB EQ settings for audio modifications
– free scan selects an open, interference-free transmitter frequency
– ACT syncs the transmitter and receiver frequencies automatically
– ideal for professional multi-language interpretation system and installation applications

Specificaties

LET OP:
De latency van het systeem (zender > ontvanger is 5,6ms (niet versleuteld) en 7,84ms (versleuteld).
Als u gebruik maakt van een digitale mixer wordt de totale latency langer!

– frequency range 470 – 639 MHz, 705 – 960 MHz (country dependent)
– bandwidth 64 MHz
preset frequency:
– 12 non-interference compatible frequencies in group 1-10
– 16 non-interference compatible frequencies in group 11-16
– 16 user-defined frequencies can be stored in group 18
– 216 preset frequencies in total
– channel grid 25 kHz
– channel set-up ACT Sync
– frequency response 20 Hz – 15 kHz (stereo)
– stereo separation > 95 dB
– max. s/n ratio 95 dBA
– T.H.D 0,1% @ 1 kHz
– modulation type digital modulation
– spurious emissions < 4 nW
– operating temperature -10C – +60C
– RF output power Low < 10 mW / High < 100 mW switchable (country dependent)
– ADC dynamic range 112 dBA
– audio input jack 2x combination XLR & 6,3 mm TRS
– audio output jack 2x 6,3 mm TRS
– max. input > + 26 dBu, selectable line/mic level
– audio input adjustment 0 – -30 dB, 3 dB step
– earphone output jack 6,3 mm stereo phone jack with volume control
– earphone output Impedance > 16 Ohm
– network interface 2x RJ-11, proprietary Mipro ACT-BUS
– antenna connector TNC (50 Ohm impedance)
– power supply 12 – 15 V DC
– dimensions (W x H x D) 210 x 44 x 206 mm
– weight approx. 1,1 kg
