Mipro AT-90WA richtingsgevoelige actieve UHF antenne met ingebouwde booster 470MHz – 1000MHz

Productbeschrijving

The AT-90Wa is a bi-functional log antenna for professional receiving and transmitting applications.
Optimized for 470 – 1.000 MHz, it is compatible with US and EU new telecom regulations.
It has a 4 – 6dBi gain which is ideal for any installation requiring specific directionality.
The wideband ACT-90Wa can be easily distinguished from its predecessor, the AT-90, by its new W-Shaped design.

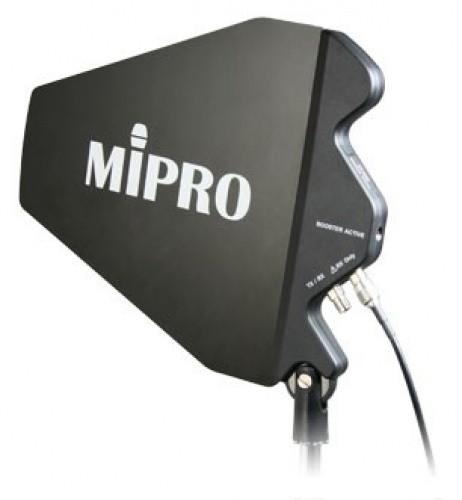

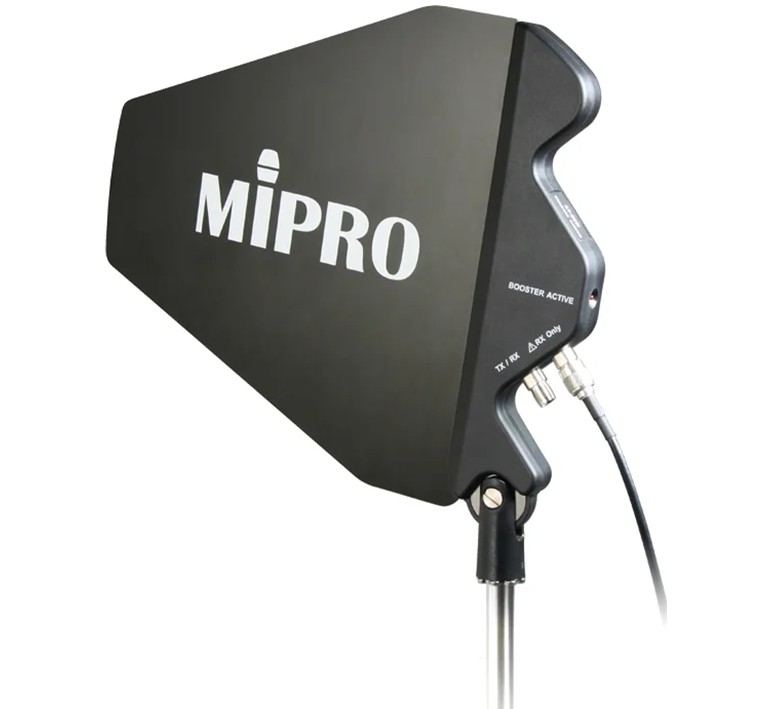

The AT-90Wa has two input connectors TX/RX connector can be connected to a transmitter or receiver, however, connection to a short coaxial cable is recommended when connected to a receiver.
RX connector (cannot be connected to a transmitter) has a built-in 0 – 12 +/- 1dB gain adjustable booster and thus provides extended reception range and compensates the signal loss of coaxial cable to improve reception range and signal quality.

The power of gain controllable booster can be provided by a Mipro AD-708 antenna divider or any Mipro ACT Series receivers which provides bias by adding an adjustor on their antenna connectors.

Specificaties

– frequency range UHF 470 – 1.000 MHz
– antenna gain 4 – 6dBi
– 3-dB beam width 75o vertical, 130o horizontal
– booster gain RX connector 0 – 12 +/- 1 dB gain adjustable
– TX/RX connector 0dB
– VSWR < 2 : 1
– voltage range of RX connector 8 – 15V/DC
– power consumption RX connector 1,3W/8V/DC
– TX connector 0mW
– impedance 50 Ohm
– connectors 2x TNC female
– dimensions W x H x D 319 x 270 x 25mm
– weight approx. 430gr

Note:
– refer to actual product in the event of product discrepancy.
