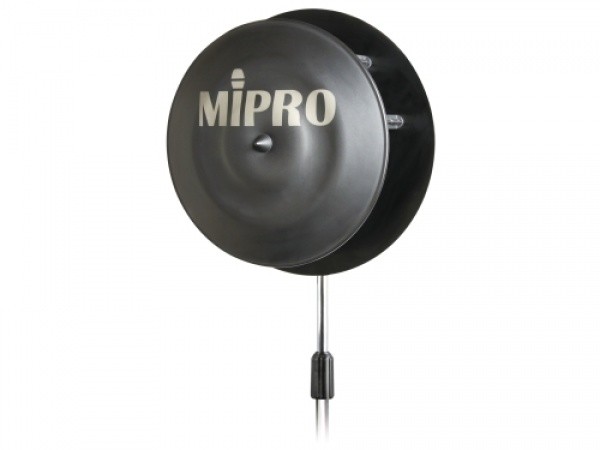

Mipro AT-100 cirkel vormige breedband richtantenne 470MHz – 1GHz

Productbeschrijving

AT-100 is an active directional antenna.
It is designed for demanding professional stages and will greatly improve signal stability and reduce interferences, signal drop-outs caused by polarization problems.

Patented in multiple countries, distinguished Appearance:
Optimized solution for both transmitting and receiving RF signals throughout the UHF bandwidth.
AT-100 has a distinguished appearance is patented in multiple countries.

Main Features:

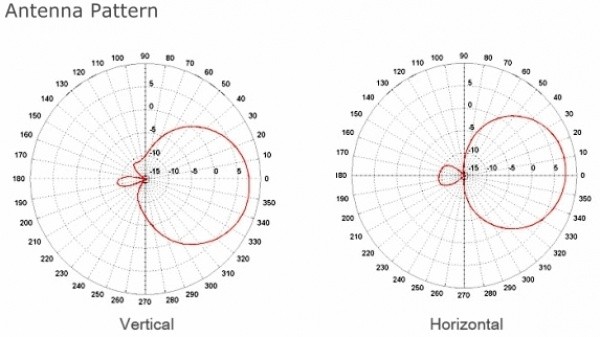

Front area is the main focus of antenna direction for either vertical or horizontal polarization.
Circularly polarized antenna can effectively reduce the polarization loss of the antenna to improve signals strength.
Optimum solution for 470-1.000 MHz bandwidth with 6-8 dBi antenna gain and certified to latest CE/FCC newly telecom regulations.

Results:
AT-100 is an ideal antenna system for utmost signal stability.
Antenna features affect transmission range, stability and anti-interference performance.
Therefore, antenna is a vital component in any system installations especially for complicated and demanding RF environment wireless microphones and wireless monitors systems.
It greatly improves signal stability and reduces interferences, signal drop-outs caused by polarization problems.

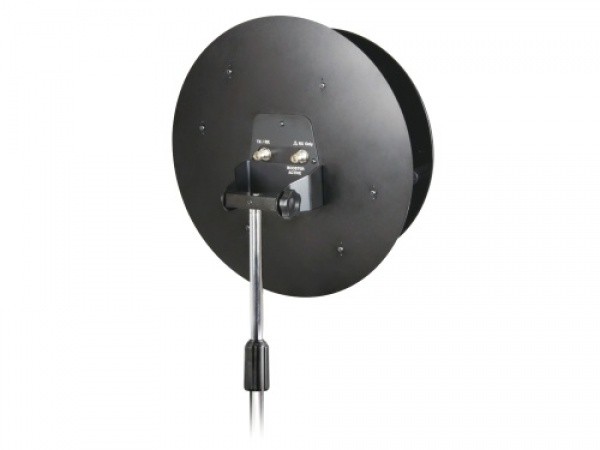

Built-in Connectors:
AT-100 has two built-in connectors: One TX/RX signal connectors for either transmitter or receiver.
Another RX Only receiver only connector (cannot connect to transmitter) has a built-in 12 dB antenna gain booster provides extended reception range and compensates for coaxial cable signal loss caused to improve reception range and signal quality.
Booster power can be provided by a MIPRO AD-707a or any ACT series receivers.

Waterproof:
Waterproof and weather resistant. Ideal for both outdoor and indoor applications.

Specificaties

– frequency range 470MHz-1000MHz
– antenna gain 6-8dBi
– polarization circular polarization
– 3-dB Beam-width 72o
– booster gain RX connector 12 +/- 1dB TX/RX connector 0dB
– VSWR < 2:1
– power consumption RX connector 1120mW (DC 8V) TX/RX connector 0mW
– impedance 50 Ohm
– 2x BNC connector female
– dimensions 350(W) x 350(H) x 225(D)mm
– weight 1,5kg
Note Refer to actual product in the event of product discrepancy.
