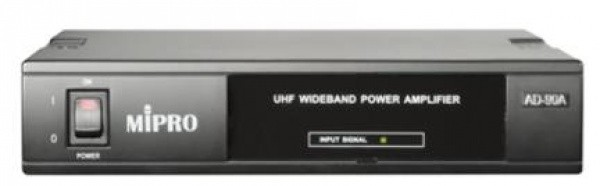

Mipro AD-90A actieve UHF (600-900 MHZ) signaalversterker

Productbeschrijving

The AD-90A is a professional UHF 470 – 960 MHz wideband power amplifier with maximum output power of +30 dBm (1 W)
It is designed to operate with a MIPRO MI-909T/MI-808T stereo transmitter, a MT-92A wireless linking transmitter, and an AD-90S UHF wideband power splitter as an end-amplifier to boost signal strength for longer signal transmission distance and reducing signal dropout in extremely complicated environments.

Ideally suited for large outdoor installation sites requiring wireless transmission to remote powered active speakers
AD-90A’s output can be connected to AT-90Wa UHF wideband antenna to complete a high efficient and long distance transmission.

Specificaties

– bandwidth UHF 470 – 960 MHz
– full system gain 8 +/- 1 dB
– VSWR input/output < 2:1

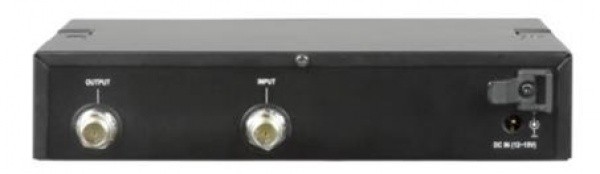

– connectors TNC female (1-input, 1-output)
– input signal indicator threshold +6 dBm
– maximum RF output power 1 W
– power supply 12 – 15 V DC
– current consumption approx. 370 mA
– dimensions (W x H x D) 210 x 44 x 206 mm
– weight 1,1 kg
– operating temperature -10 – +60C
