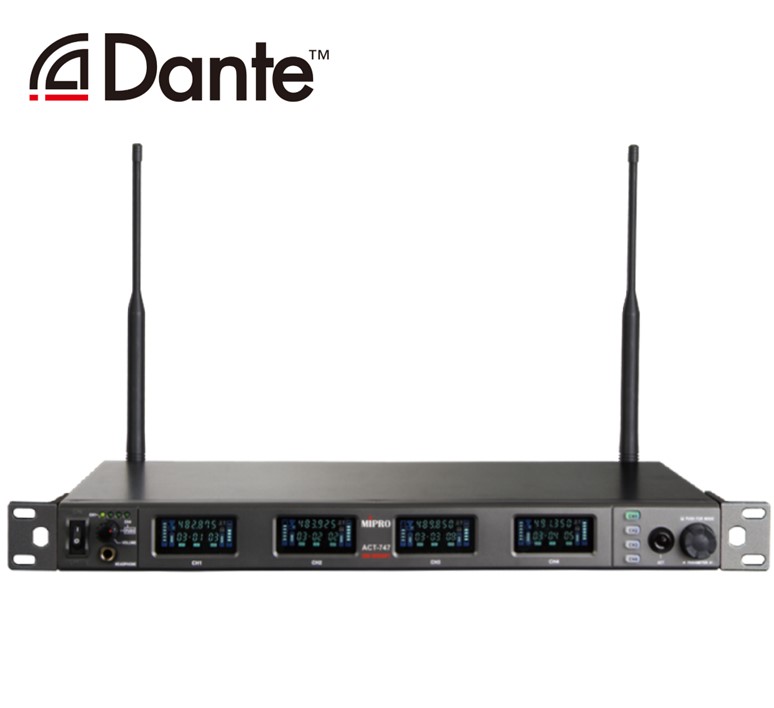

Mipro ACT-747W 19″ 4 voudige 1HE true diversity breedband ontvanger 72MHz (4x 400 freq.presets)

Productbeschrijving

The ACT-7 Series feature cutting-edge technology and design and its RF stability is highly appreciated by audio experts.
The transmitter is equipped with Mipro’s latest ECM capsule module that delivers an exceptionally clear, accurate sonic image to the listener.
They are ideal for live stage, broadcast, concert and similar large venue applications.

Features:
– EIA standard rack-mountable receiver with metal chassis for excellent heat dissipation and RF shielding.
– advanced RF and IF circuitry to improve anti-interference characteristics and increase the number of compatible channels.
– true diversity receiving for best reception quality
– dual “pilot tone & noiselock” circuits minimize interference.
– 400 preset channels in compatible groups plus a user-defined group that saves up to 16 frequencies.
– auto scan function allows quick search for an interference-free working channel.
– world’s first ACT function provides precise and rapid frequency sync to the transmitters.
– industry’s only RF interference warning indicator for proper adjustments of the SQ level to avoid interference.
– receiver provides bias voltage for Mipro antenna systems to enhance reception range and signal stability.
– industry’s only full-color VFD screen delivers a bright, clear viewing in day or night environments with automatic bright (working) and dim (standby) displays during performance.
– all controls are intuitive and easily set up via a single rotary knob.
– single channel or mixed output, switchable between three output levels for the best sound quality options.
– Mipro RCS Net software allows real-time computer setup, control and monitoring.
– optional Dante interface.
– built-in 100 – 240VAC switching power supply ensures system safety and stability.
– designed and made in Taiwan ensures high quality and value.

Specificaties

– frequency range UHF (country dependent)
– bandwidth 72 MHz
– sensitivity 6 dBμV at S/N > 80 dB
– S/N ratio > 108 dB (A)
– T.H.D. < 0.5% @ 1 kHz
– frequency response 50Hz – 18 kHz, with high pass filter
– audio output single channel output or mixed output. 3-level switchable
– output connector balanced XLR
– all controls are intuitive and easily set up via a single rotary knob
– indicator RF interference warning indicator for proper adjustments of the SQ level to avoid interference
– squelch “Pilotone & Noiselock” dual-squelch circuit
– PC interface USB or RS-232 Interface
– proprietary Mipro ACT-BUS for real-time network remote-controlling and monitoring of 64 systems
– antenna detachable
– 50Ohm TNC female connector provides bias for the Mipro antenna systems
– monitoring connector
– with volume control
– Dante interface optional
– power supply external DC input
– optional built-in AC switching power
– dimensions (W x H x D) 482 x 44 x 265mm
– net weight approx. 3,4kg

Note:
Refer to actual product in the event of product discrepancy
Frequency range and maximum deviation comply with the regulations of different countries.
