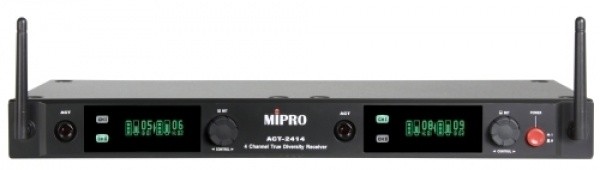

Mipro ACT-2414 4 voudige digitale ontvanger 2,4GHz 19″ 1 HE rackbreedte

Productbeschrijving

Single-Channel Digital Receiver, 2,4GHz
By using an adaptive tracking algorithm, it can skip the Wi-Fi frequency in use and effectively avoid interference from 2,4GHz communication products.
With the FHSS frequency-hopping technique, each channel has 4 preset hopping frequencies.

With dual tuner true diversity receiving, the receiving distance is up to 100 meters with no signal drop-out.

The included single rechargeable lithium battery can be easily removed or interchanged for charging.
The intelligent battery charger maintains a high charge capacity for up to 600 charge cycles for cost saving and is environmentally friendly.

Features:
– ISM band stable digital FSK modulation circuitry
– all frequencies are located in this band
– the hopping frequencies skip most of the Wi-Fi frequencies
– the precisely designed PCB is enclosed in a sturdy case
– the antennas are fixed at the left / right side of the front panel
– the transmitter has a high-efficiency circuitry design
– an affordable price for entry-level consumers and the music instrument market

Specificaties

– 19″ 1 HE EIA standaard chassis
– OLED graphic display
– frequency range ISM 2.400 – 2.4835 MHz
– 12x preset frequency
– frequency-hopping each channel has 4 preset hopping frequencies
– dual-tuner digital diversity receiving mode
– 24-bit/44,1 kHz audio sampling
– sensitivity -95 dBm
– S/N ratio > 115 dB(A)
– T.H.D. 0.1 % @ 1 kHz
– audio frequency response 20 Hz – 20 kHz (-2 dB)
– balanced XLR & Unbalanced 6,3 mm output connectors
– audio output adjustment 0 dB (standard), -10 – +20 dB adjustable range
– latency < 4,0 ms
– 2x 50 Ohm fixed antenna
– external AC power supply
– power consumption 4,8 W
– dimensions 420 × 44 × 180 mm
– weight approx. 1,5 kg
– operating temperature -10 – +60C
