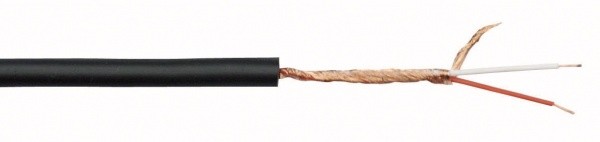

MC-206B Microphone Cable Black 6mm 100m Spool

Productbeschrijving

Specificaties

– conductor drains OFC 10 x 0,10mm
– conductor insulation PE red+blue
– conductor insulation 1mm
– 1st shield OFC twisted 40x 0,12
– outer isolation PVC black
– outer isolation 6mm
– conductor resistance 160 Ohm/Km
– capacity inner conductor 60 pF/m
– working temperature min/max -20 – 60C
– working Voltage overflash 30V
– nom impedance 110 Ohm
