Kramer WP-20 4K60 HDMI & VGA & audio input met HDBT Cat uit (past in dubbele EU inbouwdoos)

Productbeschrijving

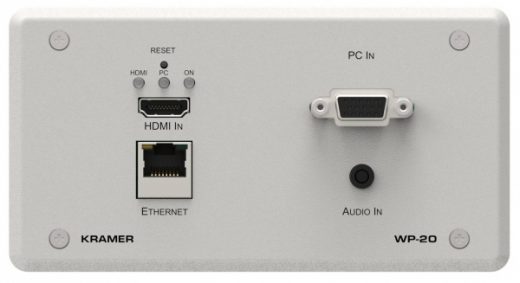

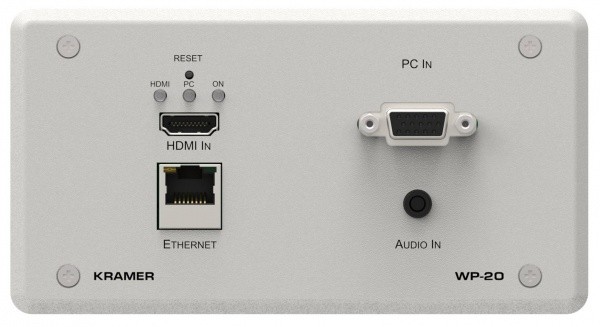

WP-20 is a 4K UHD, HDBaseT active wall plate auto switcher for HDMI, VGA and analog audio signals that supports resolutions up to 4K/60Hz (4:2:0) UHD.
The device has EDID management, various control options and audio embedding.
The unit is a fully-featured auto-switcher with the convenience and simplicity of a wall plate.
WP-20 is easy to configure, can be powered remotely over Ethernet (PoE) and is designed for any size room.

Features:
– max. data rate 10,2Gbps (3,4Gbps per graphic channel)
– max. resolution up to 4K/60Hz (4:2:0) UHD and WUXGA
– HDTV compatible
– HDCP compliant works with sources that support HDCP repeater mode
– HDMI support deep Color, x.v.Color and 3D
– automatic live input detection based on video clock presence
– automatic input selection based on manual selection or last connected input
– automatic analog audio detection & embedding
– I-EDIDPro Kramer intelligent EDID processing
– intelligent EDID handling & processing algorithm ensures plug and playoperation for HDMI systems
– Kramer equalization & re-klocking technology
– rebuilds the digital signal to travel longer distances
– range up to 130m at normal mode (2K)
– up to 100m at normal mode (4K)
– up to 180m ultra mode (1080p/60Hz 24bpp) when using BC-HDKat6a cables
– lockable EDID
– flexible control options via Kramer protocol 3000
– ethernet and embedded Web pages over RS-232
– digital audio format support
– mounting option for wall mounting, use Kramer’s OWB-2G

Specificaties

Inputs:
– 1x HDMI on HDMI connectors
– 1x VGA on a 15 pin HD (F) connector
– 1x unbalanced stereo audio 1V RMS (nominal) on a 3,5mm jack

Outputs:
– 1x HDBaseT on an RJ45 connector
– 1x unbalanced stereo audio 1V RMS (nominal) on a 3,5mm jack

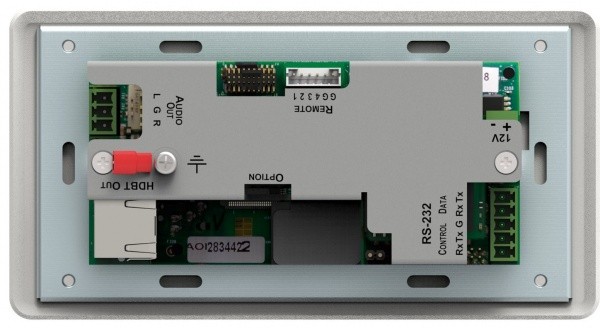

Ports:
– 1x RS-232 on a 3 pin terminal block for serial link extension
– 1x RS-232 on a 3 pin terminal block for device serial control
– 1x 100BaseT Ethernet on an RJ45 connector
– 4x contact-closure switches on a 5 pin terminal block for remote device operation

Video:
– max. data rate 10,2Gbps (3,4Gbps per graphic channel)
– max. resolution 4K@60Hz (4:2:0) 24bpp resolution
– HDMI support deep color, x.v.Color, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS HD, 2K, 4K, and 3D as specified in HDMI 2.0
– compliance HDCP 1.4

Extension line:
– up to 100m at 4K@60Hz (4:2:0)
– up to 130m at full HD (1080p @60Hz 36bpp)
– up to 180m at HDBaseT ultra mode and full HD (1080p @60Hz 24bpp)
Note: when using Kramer HDBaseT cables compliance HDBaseT 1.0

Audio:
– max. level 3,1 Vpp
– THD 0,013%
– SNR -70dB

– extended ethernet line rate bandwidth up to 100Mbps
– extended RS-232 Baud rate 300 to 115200
– power source 12V DC 2A, PoE
– consumption 850mA
– operating temperature 0 to +40C
– storage temperature -40 to +70C
– humidity 10% to 90%, RHL non–condensing
– cooling convection
– type Aluminum
– size 2 gang
– environmental: RoHs, WEEE, and CE
– included power adapter
– dimensions EU 15,10cm x 4,00cm x 8,00cm
– weight EU 0,3kg approx.
– shipping dimensions EU 25,60cm x 11,80cm x 11,40cm W x D x H
– shipping weight EU 0,9kg approx.
