Kramer VP-14 1 in > 3 uit RS-232 verdeler

Productbeschrijving

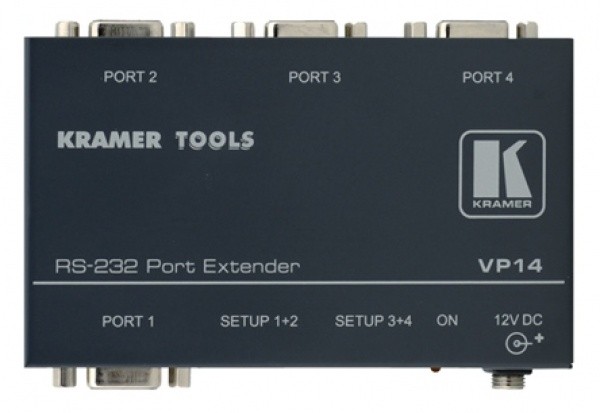

The VP-14 is a port extender for RS-232 data signals. It sends data from any port to the other three.
– contro DIP-switches for straight (flat) or crossed connection
– compact Kramer Tools 3 units can be rack mounted side-by-side in a 1U rack space with the optional RK-3T rack adapter

Features:

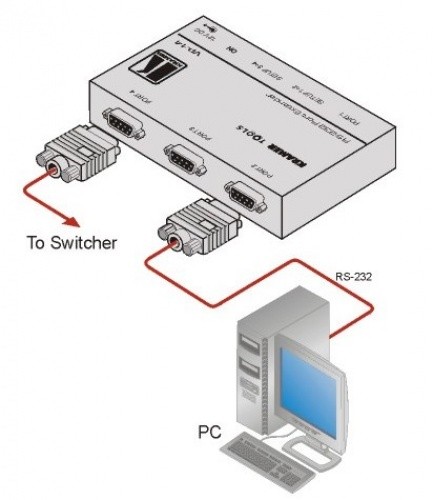

– controlling a single matrix switcher or other product via several computers and / or controllers
– monitoring of several RS-232 controlled machines via one PC port
– inter-communication between several serially controlled machines

Specificaties

– RS-232 ports 4 null-modem RS-232-C compatible TX/RX signals
– power consumption 12VDC/30mA
– dimensions 12cm x 7,5cm x 2,5cm W x D x H
– weight 0,28kg approx
– accessoiries power supply, mounting bracket
– options RK-3T 19″ rack adapter
