Kramer VM-2UHD 1 in > 2 uit 4K UHD HDMI distributie versterker

Productbeschrijving

The VM-2UHD is a 1:2 distribution amplifier for 4K@60Hz (4:2:0) HDMI 2.0 signals complying with the HDCP 1.4 content protection standard.
The unit takes one HDMI input, equalizes and reclocks the signal and distributes it to four identical outputs.

Features:
– max. data rate 10,2Gbps (3,4Gbps per graphic channel)
– max. resolution 4K@60Hz (4:2:0)
– HDMI signal transmission HDMI 2.0 and HDCP 1.4 compliant signal
– supporting deep color, x.v.Color, lip sync, 7.1 PCM
– Dolby trueHD, DTS-HD, CEC (OUT 1 only), 2K, 4K, and 3D
– # I-EdidPro Kramer Intelligent Edid processing
– Kramer equalization & reklocking technology rebuilds the digital signal to travel longer distances
# an intelligent Edid selection, handling, locking, processing and passthrough algorithm ensures plug and play operation for HDMI source and display systems
– mini USB connection for simple field firmware upgrade with Kramer K-upload tool
– easy Edid handling with Kramer Edid designer tool, status indicators for HDMI input and output connected signals, and power indicator, for ease of maintenance and troubleshooting.

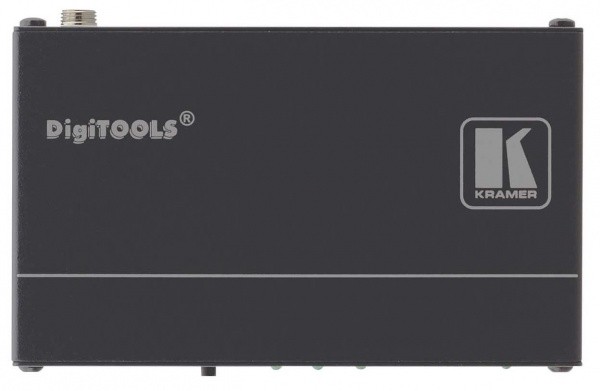

– compact Mega Tools fanless enclosure for overceiling mounting, or side by side rack mounting

Specificaties

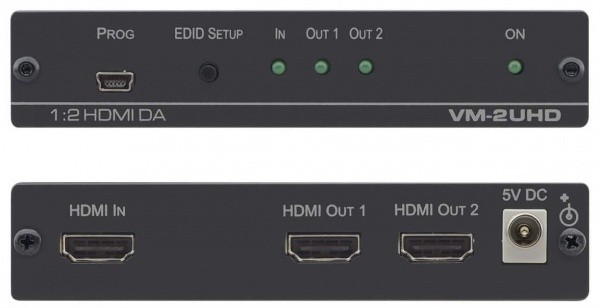

– 1x HDMI connector input
– 2x HDMI connectors output
– 1x USB for firmware upgrade
– max data rate 10,2Gbps (3,4Gbps per graphic channel)
– supports HDMI and HDCP
– Edid setup button
– Led indicators 1x in, 4x out
– operating temperature 0 – +40C
– storage temperature -40 – +70C
– humidity 10 – 90%, RHL noncondensing
– power consumption 5V/DC 1,1A
– included accessories power supply
– dimensions w x d x h 18,75cm x 11,50cm x 2,54cm
– weight 0,4kg
– shipping dimension w x d x h 34,5cm x 16,5cm x 5,2cm
