Kramer TP-580R HDBT ontvanger voor WP-20 tot 70m

Productbeschrijving

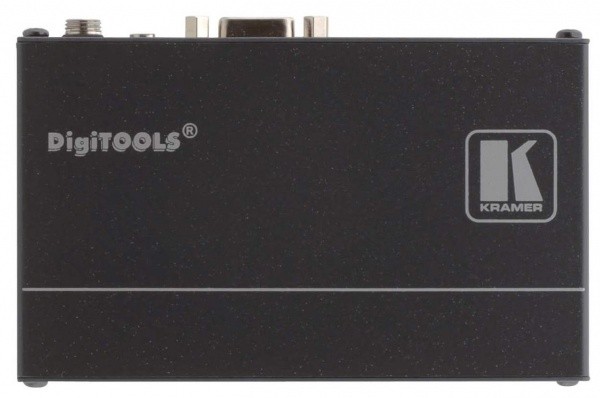

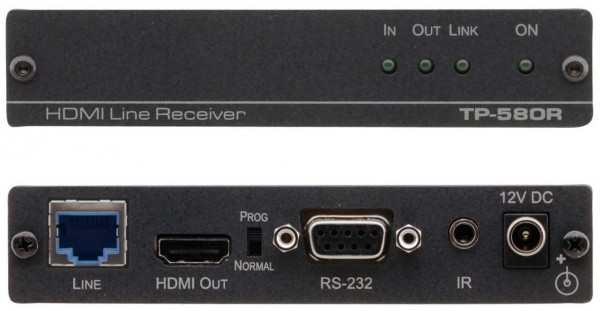

The TP-580R isa 4K UHD, twisted pair receiver for HDMI, bidirectional RS−232 and IR signals.
It supports resolutions up to 4K@60 UHD (4:2:0).

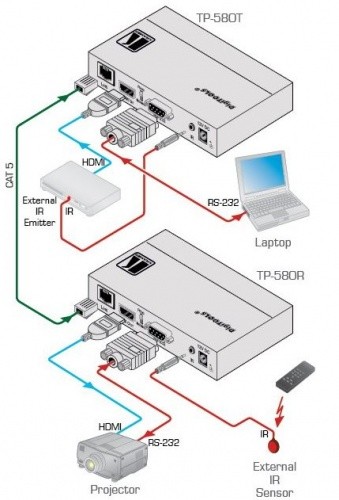

The TP-580T converts HDMI, RS-232, and IR signals into a twisted pair signal that it transmits to a TP-580R receiver.
The TP-580R converts the twisted pair signal back into HDMI, bidirectional RS-232 and IR signals.

Features:
– resolution support up to 4K@60 UHD (4:2:0)
– max. data rate 10.2Gbps (3.4Gbps per graphic channel)
– HDTV compatible
– HDCP compliance
– HDBaseT technology
– HDMI support deep color, x.v.Color, lip sync
– HDMI uncompressed audio channels, Dolby TrueHD, DTS–HD, CEC
– 3D pass-through
– EDID pass-thru passes EDID signals between the source and display
– bidirectional RS-232 & IR interface
– commands and data can flow in both directions via the RS-232 interface
– allowing status requests and remote control of the destination unit
– system range -70m @1080p, 40m @4K
