Kramer PT-871/2-KIT 4K HDMI > Unikat (afgeschermd) omzetter kit OP=OP DE LAATSTE

Productbeschrijving

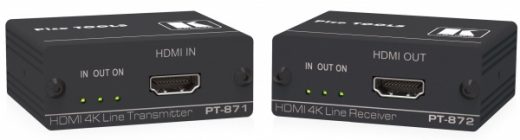

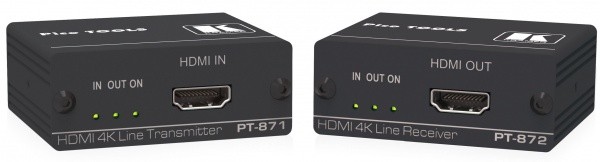

PT-871/2-KIT is a highperformance, longreach DGKat 2.0 extender kit for 4K@60Hz (4:4:4) HDR HDMI 2.0 and HDCP 2.2 signals and 2 way powering over twisted pair.

The PT-871 transmitter converts all input signals into the DGKat 2.0 signal.
The PT-872 receiver converts the transmitted DGKat 2.0 signal into an HDMI signal.

PT-871/2-KIT extends video signals to up to 40m over Kramer CAT copper cables at up to 4K@60Hz (4:4:4) 24bpp video resolution.

High performance extender:
Professional DGKat 2.0 extender kit for providing longreach signals and 2–way power over twisted pair copper infrastructures.
PT-871/2-Kit extender employs low–level video compression technology that delivers visually lossless performance for 4K60 4:4:4 and HDR signals with near–zero latency.
PT-871 converts input HDMI signal into the transmitted DGKat 2.0 signal.
PT-872 converts the transmitted DGKat 2.0 signal into an HDMI signal.
PT-871 and PT-872 extend video signals to up to 40m over Kramer CAT copper cables at up to 4K@60Hz (4:4:4) 24bpp video resolution.

HDMI signal extension:
HDR, HDMI 2.0 and HDCP 2.2 compliant.
Supports deep color, x.v.Color, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D.
EDID signals are passed through from the source to the display.

I–EDIDPro Kramer Intelligent EDID Processing:
Intelligent EDID handling, processing and pass-through algorithm that ensures Plug and Play operation for HDMI source and display systems.

Multi-channel audio extension:
Up to 32 channels of digital stereo uncompressed signals for supporting studio grade surround sound.

Cost-effective maintenance:
Status LED indicators for HDMI and DGKat 2.0 ports facilitate easy local maintenance and troubleshooting.

Easy installation:
Single twistedpair cable for signal and power wiring.
Compact Pico Tools fanless enclosure for deviceback mounting, or side by side mounting of 4 units in a 1U rack space with the optional RK-4PT rack adapter.

Specificaties

Inputs:
– 1x HDMI on an HDMI female connector (PT-871)
– 1x DGKat on an RJ-45 female connector for extension line (PT-872)

Outputs:
– 1x DGKat on an RJ-45 female connector for extension line (PT-871)
– 1x HDMI on an HDMI female connector (PT-872)

Extension line:
– reach extension up to 40m at 4K@60Hz (4:4:4 or 4:2:0) or full HD (1080p @60Hz 36bpp)
Note when using Kramer UNIKAT cables

Signal compression:
– lowlevel compression is applied to line–transmitted signals of above 1080p resolution
– compliance DGKat 2.0

Video:
– max resolution 3840×2160@60Hz (4:4:4) 24bpp
– data bandwidth up to 18Gbps (6Gbps per graphic channel)
– standards compliance HDR10, HDMI 2.0, HDCP 2.2

User interface:
– indicator LED’s in, out, on

Power:
– source 12V/DC, 2A
– consumption 270mA

Environmental conditions:
– operating temperature 0 – +40C
– storage temperature -40 – +70C
– humidity 10% to 90% (RHL non-condensing)

Enclosure:
– size Pico Tools
– type aluminium
– cooling convection ventilation

Accesories:
– included 1x power supply, 2 bracket kits
– optional RK-4PT 19” rack mount

Product dimension:
– 6,22cm x 5,18cm x 2,44cm W x D x H
– 0,1kg approx

Shipping dimension:
– 15,7cm x 12cm x 8,7cm W x D x H
– 0,4kg approx
