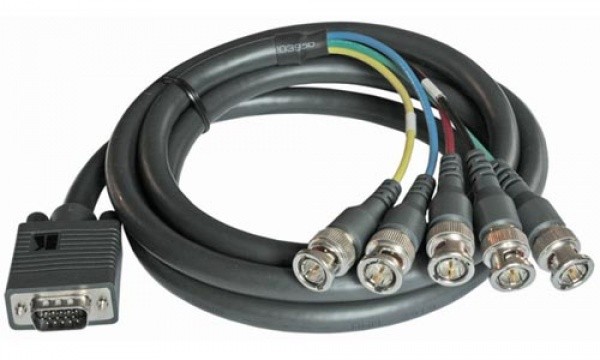

Kramer 7,6m verloop kabel VGA 15p Male > 5x BNC Male

Productbeschrijving

Kramer’s computer graphics video breakout cables are constructed of 5 mini coax cables with a molded 15-pin HD (M or F) on one end and 5 BNC (M or F) on the other.
They convert between the two most common cabling formats used for routing computer graphic video signals, 15-pin HD, and 5 BNC.
Quality Construction – Constructed using Kramer BC-5X high resolution mini coax cable, terminated with molded 15-pin HD connector on one end and 75 ohm BNC connectors on the other.
Easy Installation – Models 6ft or longer have an 18in (460mm) long spread at the 5 BNC end to fit large routers/switchers such as the Sierra Pro 32 series.
Cable Specs – See Kramer BC-5X for detailed cable specs.
Varied Selection of Lengths – 0.5 to 100ft (0.2 to 30.5m).

Specificaties

– Attenuation (dB/100 ft.):
– -0.6 dB @ 1MHz.
– -1.4 dB @ 5 MHz.
– -2.1 dB @ 10 MHz.
– -4.7 dB @ 50MHz.
– -6.8 dB @ 100MHz.
– -9.2 dB @ 180MHz.
– -14.2 dB @ 400MHz.
– -20.1 dB @ 750MHz.
– -23.8 dB @ 1000MHz.
– Coax Center Conductor 28 AWG 7/36 tinned copper.
– Dielectric Foam polyethylene.
– Shield 90% braid 38 AWG tinned copper.
– Coax Jacket Colors Red, green, blue, yellow, black.
– Outer Jacket PVC.
– DC Resistance 72.2ohm per 1000ft, 237ohm per km.
– Capacitance 18.3pF per foot, 60pF per meter.
– Velocity of Propagation 78%.
– Temperature – 20 to 75 celsius.
– UL CL2.
– CSA C(UL) CL2.
– Outer Jacket Color Dark Gray w/white lettering.
– Center Conductor 0.015 inches, 0.38mm.
– Dielectric 0.063 inches, 1.6mm.
– Individual Coax 0.108 inches, 2.75mm.
– Outside Diameter 0.362 inches, 9.2mm.
– Impedance 75ohm.
