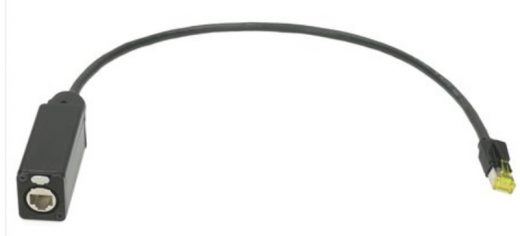

Klotz CAT-6A laptop adaptor RJ45 male > Neutrik EtherCON female PUR

Productbeschrijving

We now have several products in our range that have been developed as a result of very specific customer requests.
The CP6AETFRJM is also one of them.
RJ45 and etherCON confusingly similar, but not the same.
It is said there has already been some confusion.
An etherCON housing contains an RJ45 connector and therefore cannot be plugged into a “normal” network socket, as found on laptops.
This is exactly why we have created the laptop adapter CP6AETFRJM.
It adapts a cable with etherCON connectors nowadays common practice in the ProAVM environment to an RJ45 connector without having to remove the etherCON grommet.
The bulk cable used is our proven C7P06P, a CAT7 patch cable with PUR outer sheath in the frequency range up to 600 MHz.

Specificaties

Afgeschermde Cat-6 verloop van Neutrik naar RJ-45
– cable type C7PS/F06 [P]
– 6,3 mm, S/FTP, AWG 26/7, 600 MHz
– shielding tinned overall copper braid screen + foil shielded twisted pairs
– outer jacket PUR, black
– max. data transmission rate 10 Gbit/s
– pinout TIA/EIA 568-B
– connector 1 professional, screened RJ45 CAT6a cable plug
– connector 2 etherCON socket
