Draadloze digitale In Ear monitor IEM Huurperiode 1 dag

Productbeschrijving

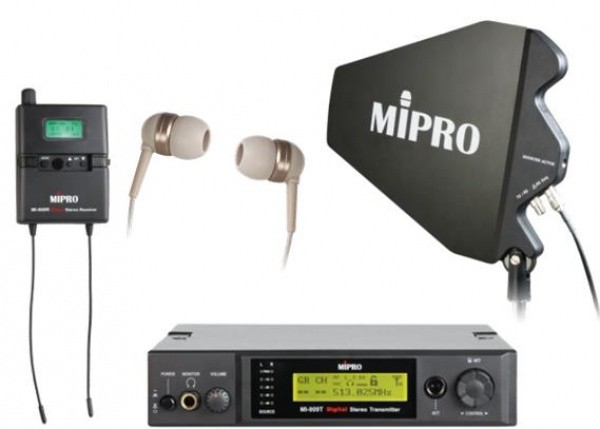

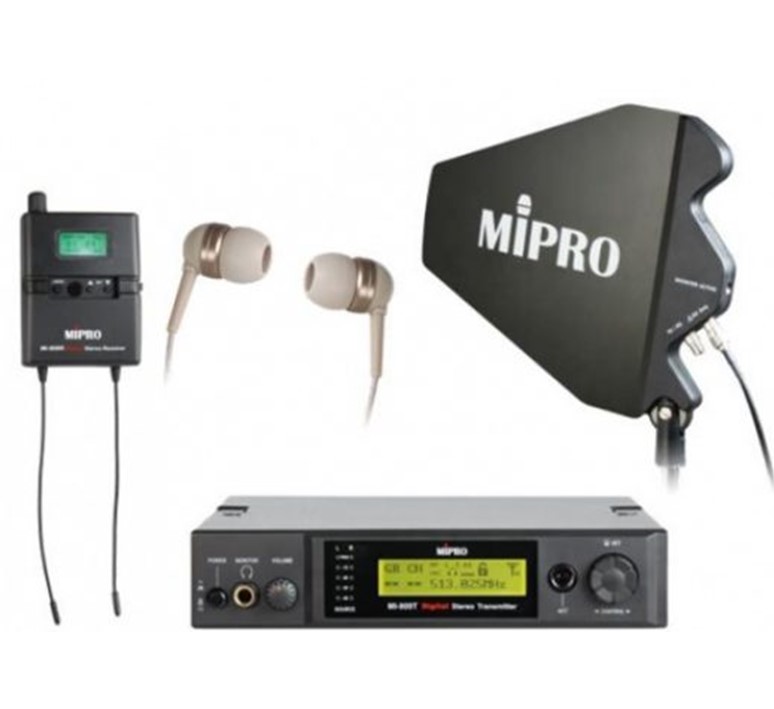

Deze digitale In Ear monitor set bestaat uit:

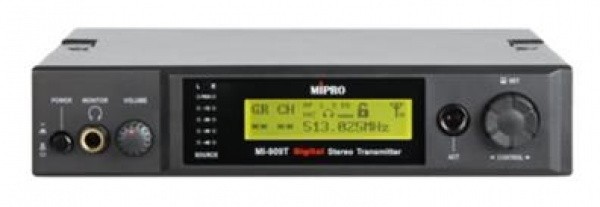

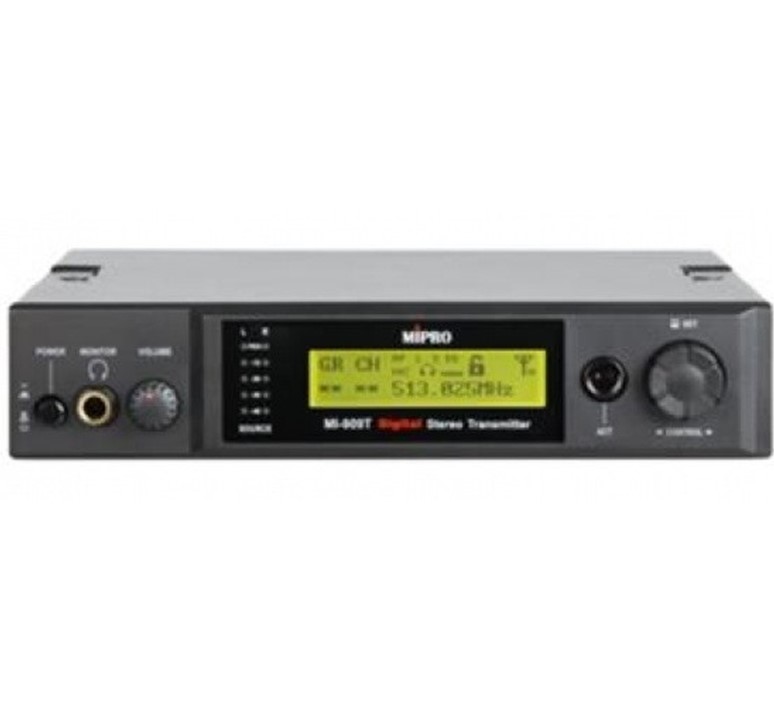

1 x Mipro digitale MI-909T stereo in-ear monitor diversity UHF zender

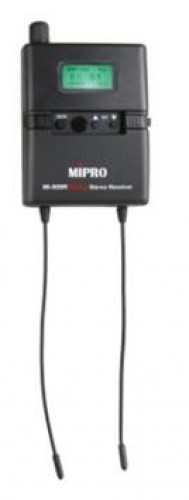

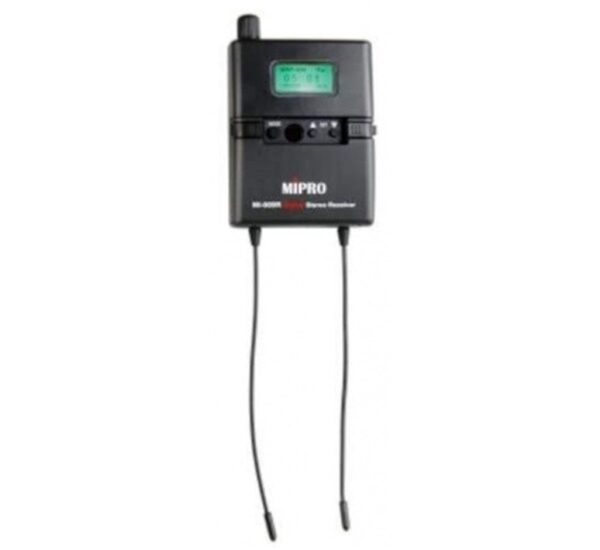

1 x Mipro digitale MI-909R stereo in-ear monitor diversity UHF bodypack ontvanger
1 x Mipro E-8S Premium oortelefoon voor Mipro in ear monitor systeem beige
1 x Mipro AT-90W Richtinggevoelige actieve UHF antenne

De grote voordelen van dit digitale systeem zijn:
– digitaal systeem
– beveiligde audio verbinding met 128 bit encryptie (random of statische functie)
– frequentie bereik van 20Hz tot 15 kHz
– tot 16 kanalen in dezelfde frequentie groep
– keuze in hoog en laag uitgangs vermogen
– hoog dynamisch bereik
– DSP met 3 band +/- 9 dB EQ voor audio aanpassingen
– ACT sync functie voor eenvoudig koppelen van de ontvanger aan de zender

Technical Info:
– frequency Range 480 – 544 MHz
– bandwidth 64 MHz
Preset frequency:
– 12 non-interference compatible frequencies in group 1-10
– 16 non-interference compatible frequencies in group 11-16
– 16 user-defined frequencies can be stored in group 18
– 216 preset frequencies in total
– channel grid 25 kHz

Zender:
– channel set-up ACT Sync
– frequency response 20 Hz – 15 kHz (stereo)
– stereo separation > 95 dB
– max. s/n ratio 95 dBA
– T.H.D 0,1% @ 1 kHz
– modulation type digital modulation
– spurious emissions < 4 nW
– operating temperature -10C – +60C
– RF output power low < 10 mW/High < 100 mW switchable (country dependent)
– ADC dynamic range 112 dBA
– audio input XLR female
– audio output XLR male
– max. input > +26 dBu selectable line/mic level
– audio input adjustment 0 – -30 dB, 3 dB step
– earphone output jack 6,3 mm stereo phone jack with volume control
– earphone output impedance > 16 Ohm
– antenna connector TNC (50 Ohm impedance)

Ontvanger:
– channel set-up ACT Sync
– frequency response 20 Hz – 15 kHz (stereo)
– stereo separation > 95 dB
– max. s/n ratio 95 dBA
– T.H.D 0,1% @ 1 kHz
– modulation type digital modulation
– spurious emissions < 4 nW
– operating temperature -10C – +60C
– receiving mode digital diversity receiving
– oscillation mode PLL synthesized
– frequency stability +/- 0,005% (-10C – +60C)
– sensitivity 10uV input level, s/n > 90 dB (stereo)
– volume control 126 dB (1 dB step)
– LCD display AF / RF meters, battery status, group & channel, R/L balance
– output jack 3,5mm stereo earphone jack
– output power left/right × 120mW @ 16Ohm
– earphone impedance > 16Ohm
– battery type 2 AA alkaline
– current consumption approx. 170mA
– operating time approx. 8 hours
– dimensions (W x H x D) 63 x 82 x 23mm
– net weight approx. 93 gr
