DPA plafond microfoon 4098H wit supercardioid MicoDot

Productbeschrijving

4098H Hanging Supercardioid Microphone
– accurate, natural sound with superior gain before feedback
– minimal visual impact, available in black and white
– exceptional RF interference rejection

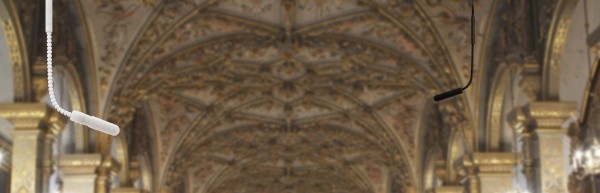

Dedicated to hanging applications like churches, performing arts centers, orchestra pits, theatres and TV studios.
The 4098H delivers sparkling clear and distinct natural sound for both recording and sound reinforcement of choirs, instrumental or vocal groups, speech or live audiences.

The 4098H represents a breakthrough in discreet, elegant and lightweight design.
Extremely low in profile, the integrated gooseneck provides the ability to easily aim the mics, ensuring perfect positioning with minimal visual impact since the cables are very slim and nearly invisible.

These microphones live up to their pedigree with sound as accurate as DPA’s other world-class microphones with clear and natural sound, flat response and uniform off-axis sound combined with excellent gain-before-feedback characteristics for live sound.
The 4098H has extremely high rejection of RF interference post the signal balanced XLR connector which offers more than 60 dB common mode rejection.

With its easy to hang and aim design along with its extremely natural sound, the 4098H is truly a hanging microphone without equal that continues the heritage of sonic excellence from DPA microphones.

The package includes:
– a supercardioid gooseneck microphone (no cable included, the microphone terminates in a MicroDot connector)
– integrated windscreen
– XLR adapter
– zipper pouch

Specificaties

– directional characteristics supercardioid
– principle of operation pressure gradient
– cartridge type pre-polarized condenser
– frequency range 20 Hz to 20 kHz
– frequency range, +/- 2 dB, 20 cm (7.9 in) distance 80 Hz to 15 kHz with 3 dB diffuse field boost at 8 to 15 kHz
– sensitivity, nominal +/- 3 dB at 1 kHz 20 mV/Pa; -34 dB re. 1 V/Pa
– equivalent noise level, A-weighted typ. 23 dB(A) re. 20 uPa (max. 26 dB(A))
– equivalent noise level, ITU-R BS.468-4 typ. 35 dB (max. 38 dB)
– S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL) 71 dB(A)
– total harmonic distortion (THD) <1 % up to 123 dB SPL peak; <1 % up to 120 dB SPL RMS sine
– dynamic range typ. 100 dB
– max. SPL, peak before clipping 134 dB
– output impedance from Microdot: 30 to 40 ohm; from DAD6001 100ohm
– cable drive capability up to 300m with DAD6001 XLR adapter
– output balance principle signal balanced with DAD6001 XLR adapter
– common mode rejection ratio (CMRR) > 60 dB from 50 Hz to 15 kHz with DAD6001 XLR adapter
– power supply (for full performance) for wireless systems min. 5 V max. 50 V through DPA adapter; with DAD6001 48V phantom power +/- 4 V
– current consumption 1,5mA. 3,5mA with DAD6001 XLR adapter
– connector MicroDot; 3 pin XLR-M from DAD6001 XLR adapter

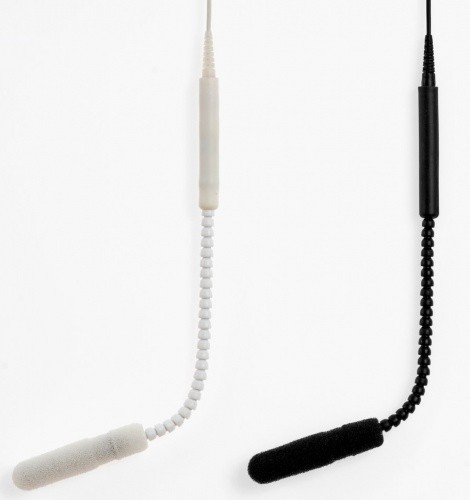

– color black (4098HB) or white (4098HW)
– microphone weight 5gr
– microphone diameter 10mm
– capsule diameter 5,4mm
– microphone length 154mm
– polarity positively increasing sound pressure produces positive going voltage at MicroDot pin (and pin 2 on DAD6001 XLR adapter)
– temperature range -40C to 45C
– relative humidity up to 90 %
– gooseneck length 95mm
