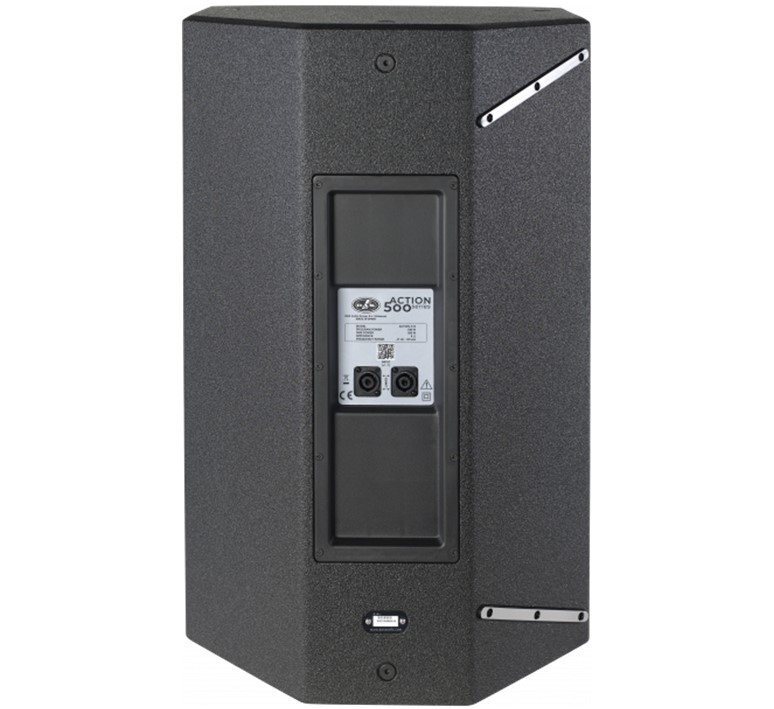

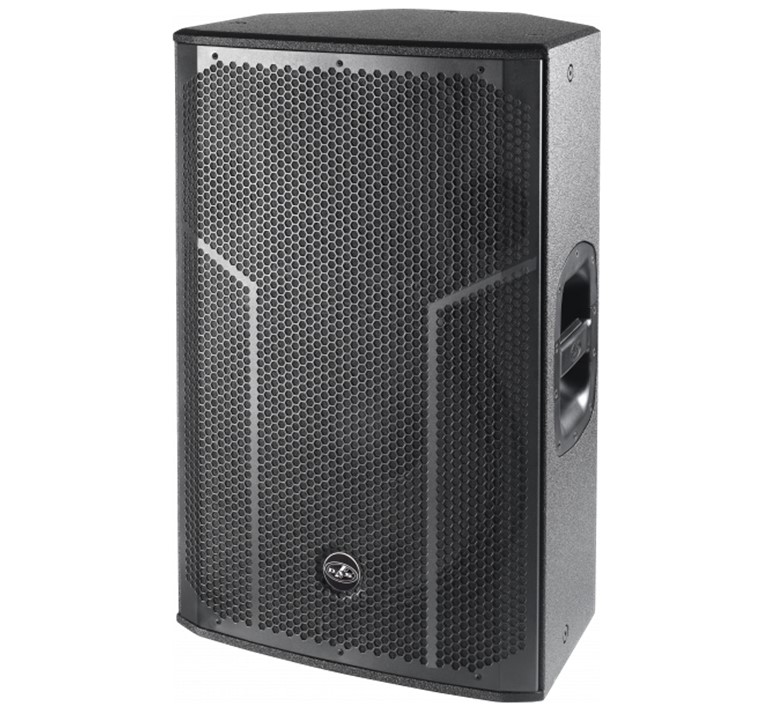

DAS ACTION-515 Passief 350W 15” 2 weg full-range, 90 x 60 draaibare hoorn zwart

Prijs op aanvraag
DAS ACTION-515 Passief 350W 15” 2 weg full-range, 90 x 60 draaibare hoorn zwart

Artikelnummer: 10427060


Mail ons voor meer informatie

Productbeschrijving

Action-515 is a passive system designed to deliver a highly versatile solution, from fixed installations to the popular portable PA application.
Its rotatable horn with 90o x 60o dispersion means the enclosure can be used horizontally in a fixed installation, as a stage monitor or even as front fill.
As part of our company culture, all our systems are developed under a single philosophy to deliver the highest possible quality in terms of both materials and overall system design.

In the Action-500 series we use the same birch plywood as our touring systems for a tight, natural warm sound found nowhere else on the market.
For long-term optimal performance of the Action-500 passive versions, the system can only be a complete sound system when rounded out with our amplifiers and processors with stored presets and limiters.

Features:
– passive two-way system
– birch plywood enclosure
– durable ISO-flex paint
– recommended processor DSP-226
– recommended amplifier PA series

Applications:
– live sound reinforcement
– bands, DJ´s and performers
– speech and vocals
– music playback in entertainment
– A/V, conferences and presentations



Specificaties

– frequency range (-10 dB) 47Hz – 20 kHz
– horizontal coverage (-6 dB) 90o
– vertical coverage 60o
– nominal impedance 8 Ohm
– RMS power handling 350W
– peak power handling 1400W
– on-axis Sensitivity 1W/1m 96 dB SPL
– maximum peak SPL at 1m 131 dB
– recommended amplifier PA-1500
– recommended processor DSP-226
– audio input connector 1 x speakON NL4
– audio output connector 1 x speakON NL4
– enclosure construction birch plywood
– enclosure geometry trapezoidal
– rigging M10 rigging points
– finish ISO-flex paint
– color black
– depth 385mm
– dimensions (h x w x d) 720 x 445 x 385mm
– net weight 22kg
– LF driver 15MI
– HF driver M-34
– horn/waveguide BC-916
– shipping carton dimensions (h x w x d) 785 x 430 x 505mm
– shipping weight 24,5kg
