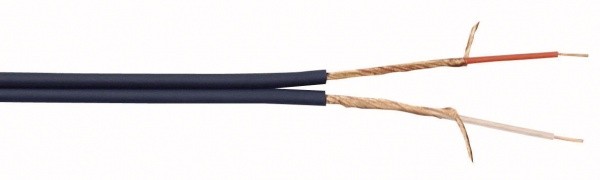

DAP AV-36 audio tulpkabel blauw asymmetrisch 2x 3mm per 100m rol

Productbeschrijving

Specificaties

– conductor drains OFC 20x 0,12mm
– conductor insulation PE red + transparent
– conductor insulation 1,3mm
– 1st shield OFC twisted 32x 0,12
– outer isolation PVC dark blue
– outer isolation 2x 3mm
– conductor resistance 80 Ohm/km
– shield resistance 50 Ohm/km
– capacity inner cond shield / inner cond 160 pF/m
– working temperature min / max -20 – 60C
– working voltage overflash 30V
– nom impedance 35 Ohm

Attenuation:
10MHz: 0,02480 / 90MHz: 0,28000 / 100MHz: 0,28530 /220MHz: 0,55350 470MHz: 1,33130 / 770MHz: 2,21180 / 1000Mhz: 3,0271
