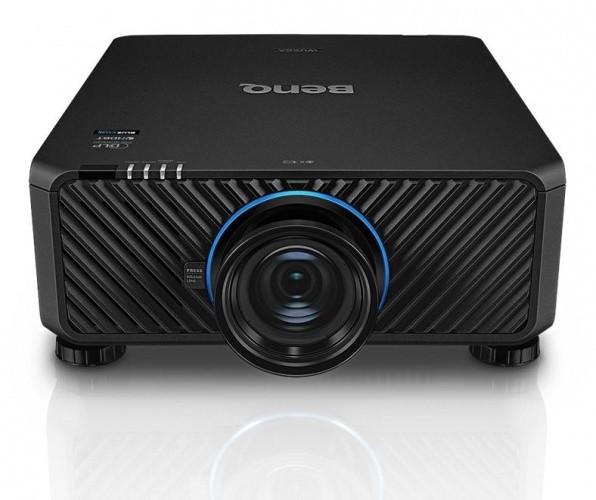

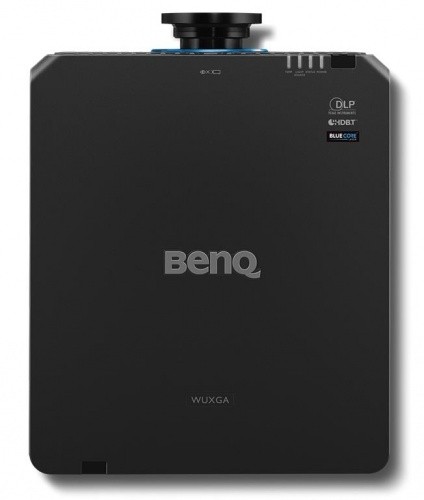

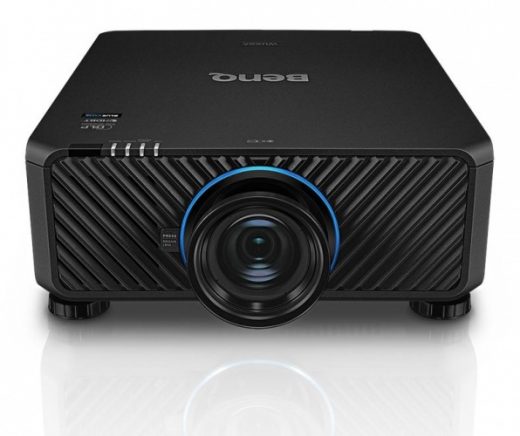

Blue Core Laser Projector 10.000 Ansi Lumen WUXGA Huurperiode 1 dag

Productbeschrijving

Projectie afstand met standaard lens (LS1SD 5J.JAM37.001).

Scherm 1,65 x 2,64m
– projectieafstand tussen 4,55-5,90m

Scherm 2,24 x 3,56m
– projectieafstand tussen 6,15-8,08m

Scherm 3,05 x 4,88m
– projectieafstand tussen 8,45-11,08m



Specificaties

Display:
– projection system‎ DLP 0.67″ WUXGA
– DMD type DC3 DMD Chip
– native resolution‎ 1920 x 1200 pixels
– brightness 10.000 ANSI Lumens
– contrast ratio‎ 100.000 : 1
– display color‎ 1,07 billion colors
– aspect ratio native 16:10 (9 aspect ratio selectable)
– light source Laser diodes
– light source life (normal/Eco) 20.000/45.000 hours

Optical:
Throw Ratio
– LS1ST1 Wide Zoom: 1.25 – 1.79
– LS1SD Standard: 1.73 – 2.27
Zoom Ratio:
– LS1ST1 Wide Zoom: 1,41x
– LS1SD Standard: 1,3x
– lens control 8 Lens (motorized zoom and focus)
– lens shift vertical 0% – 50%, horizontal -10% – 10% (standard lens)
– keystone correction vertical +/- 30 degrees‎ , horizontal +/- 30 degrees‎
– projection size 50″ – 500″ standard lens
Security:
– security bar
– power cord lock
Feature:
– custom lightsource mode (light power adjustment)
– dicom simulation mode
– 2D Keystone
– blank to true black
– edge-blending
– geometric correction
– 3D sync.
– 24/7 hours operating
– dust proof engine
– dual liquid cooling system
– auto high altitude mode
– 360 degree & portrait projection

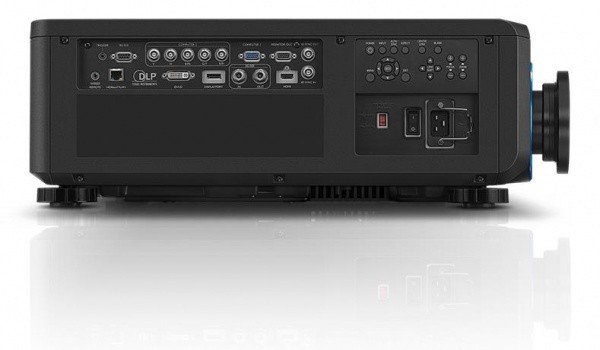

Connectivity:
– 1x HDMI
– 1x Display Port
– 1x DVI-D in
– 1x computer in-1 (D-sub 15pin, Female)
– 1x computer in-2(5BNC,YBPBR)
– 1x monitor out (D-sub 15pin,Female)
– 1x 3G-SDI in
– 1x 3G-SDI out
– 1x HDBaseT(RJ45 for video display and network control)
– 1x RS232 In (D-sub 9pin, male)
– 1x 3D sync out
– 1x 3D sync in
– 1x wired remote in
– 1x 12V trigger

Compatibility:
– resolution support VGA(640 x 480) to WUXGA(1920 x 1200)
– horizontal frequency 15K – 92kHz
– vertical scan rate 23 – 85Hz
– HDTV/UHDTV compatibility 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
– video compatibility NTSC, PAL, SECAM‎

Power:
– power consumption (normal) 1215W/240V
– standby power consumption normal < 0,5W, network < 6W
– power supply 100 – 240V AC

Dimension and weight:
– dimensions (WxHxD) 500 x 211 x 583 mm
– weight 28kg

Operation condition:
– noise level (normal/eco) 42/39 dBA
– operating temperature 0 – 45C

Accessories (standard):
– power cord
– remote control
– lens hole cap
Accessories (optional)
– LS1ST1 Wide Zoom(5J.JAM37.021)
