Blaze PowerZone Connect 252 EU 2x 125W 2 kanaals installatie DSP versterker 4-16 Ohm & 70V/100V

Productbeschrijving

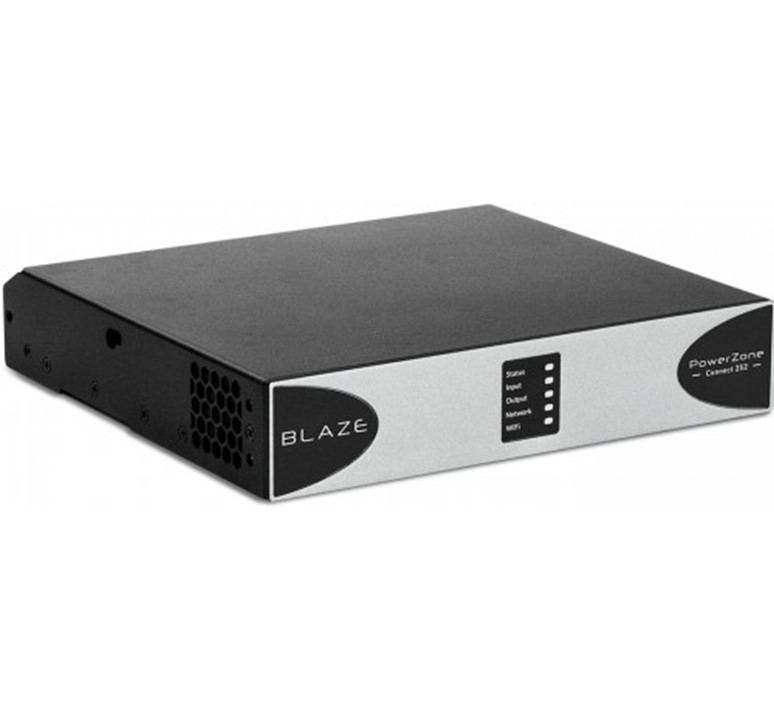

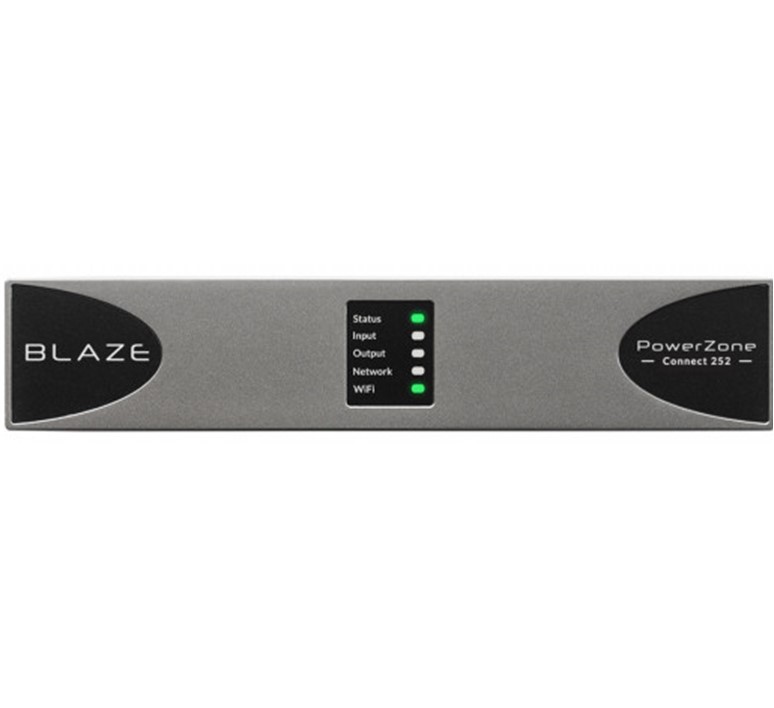

The PowerZone Connect 252 is a compact DSP amplifier in a half rack, 1U format.
It’s network-connected, giving wired or wireless access to the PowerZone Control web app’s system setup and audio configuration menu.
From here you can manage inputs/outputs, control sound zones and access professional tuning settings all helping achieve impressive sound in the shortest time possible.

It can drive both conventional low impedance (4 Ohm to 16 Ohm) loudspeakers and constant voltage (70V/100V) transformer coupled loudspeakers.

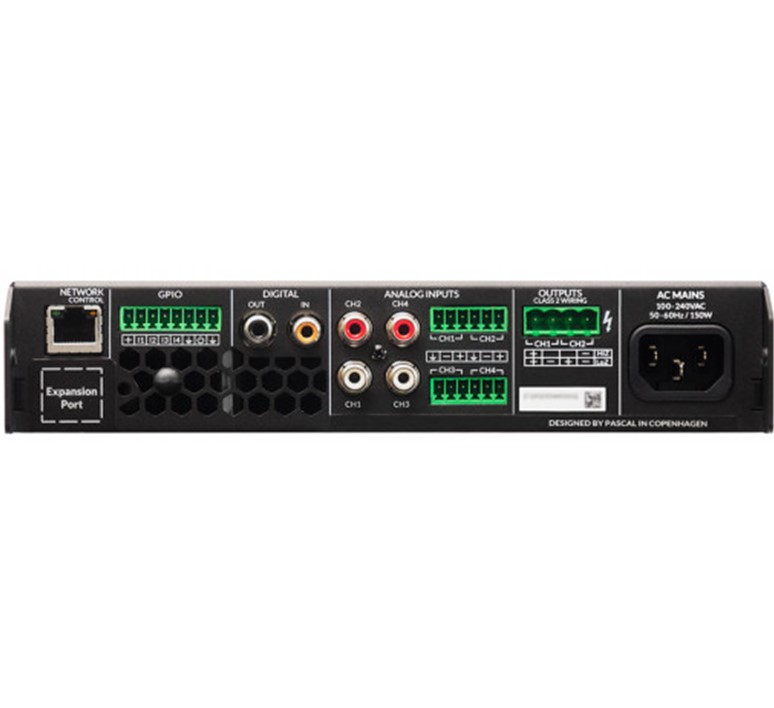

With four analogue inputs, and one stereo digital input, it has flexible output options 2x 125W in Lo-Z mode and 1 x 250W in Hi-Z mode.
Automatic power sharing technology enables total available power to be shared proportionately between the outputs.

Features:
– full matrix DSP amplifier with configuration and control via the simple WebApp
– flexible power output with 2x 125W / 1x 250W and power sharing technology
– power sharing technology delivers flexible power output in 1 or 2 channels
– route any input to any output channel create sound zones in minutes
– ultra-compact form factor means it can be installed in spaces where others cannot
– powered by Pascal UMAC class-D technology

https://ui.blaze-audio.com/#/dashboard

Specificaties

– total system power 250W
– output power @ 4/8 Ohm 2x 125W
– output power @ 70/100V 1x 250W
– powershare (up to) across all channels 1x 250W
– power consumption 75W
– dimensions 44 x 220 x 213mm
– weight 2kg
– output circuitry UMACTM class D full bandwidth PWM modulator with ultra-low distortion
– output Voltage 70 Vp / 140 Vpp (unloaded) / bridged 140 Vp / 280 Vpp (unloaded)
– signal to noise-ratio > 106 dB (A-weighted, 20 Hz – 20 kHz, 8 Ohm load)
– THD+N (typical) < 0,05 % (20 Hz – 20 kHz, 8 Ohm load, 3 dB below rated power)
– frequency response 20 Hz – 20 kHz (+0/-0,25 dB (8 Ohm load, 3 dB below rated power)
– protection circuits short circuit -, DC -, undervoltage -, temperature – and overload protection
– power supply URECTM universal mains switch mode power supply with power factor correction (PFC) and integral standby converter
– operating temperature 0 – 40C
– operating voltage/frequency universal mains 100-240V, 50-60Hz
– standby consumption < 0,5W
– accessories 2x rack ears, 1x 1⁄2 rack plate extension, 2x 1⁄2 rack mounting, 2x rear supports
– power ratings 1% THD @ 120VAC and 230VAC
