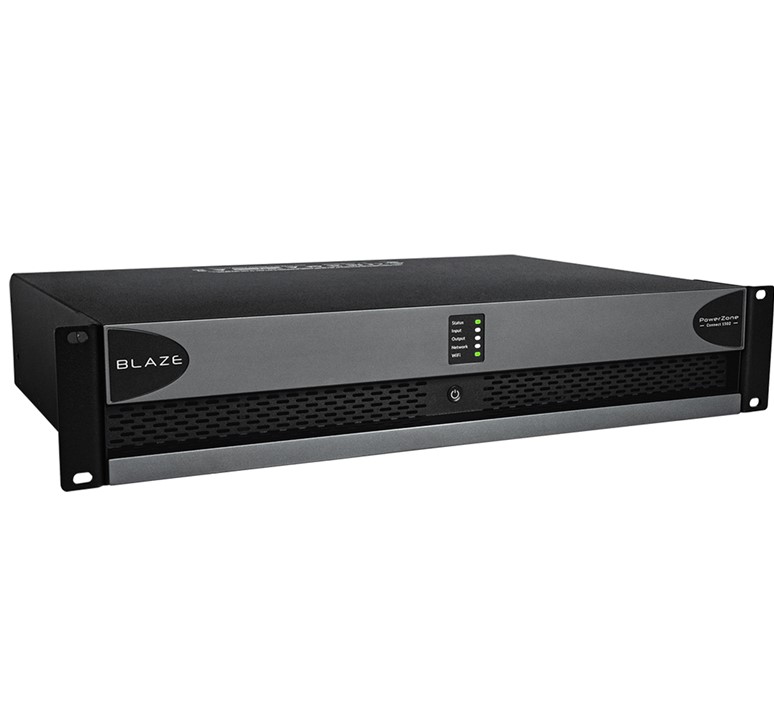

Blaze PowerZone Connect 1502 EU 2x 750W 2 kanaals installatie DSP versterker 4-16 Ohm & 70V/100V

Productbeschrijving

The PowerZone Connect 1502 is a solid, reliable, full rack, DSP amplifier with network connection for easy configuration and control.
Its network can be wired or wireless and allows access to the PowerZone Control web app’s system setup and audio configuration menu.
From here you can manage sound zones, inputs/outputs, update firmware, import speaker pre-sets and access many professional EQ settings configuration takes only a few minutes and can even be set up from your phone’s browser.

Features:
– more power
– still connected
– 2U, full rack
– next level power with 2 channels up to 1500W total system power
– for bigger installs and larger locations
– a powerful extension to the PowerZone connect series of full matrix DSP amplifiers
– with the same set-up and configuration via the same PowerZone Control web app
– connect via the amps Wi-Fi, or direct via the network port
– use any device and any browser
– even set-up from your phone
– connect to the system with PowerZone Control
– configure the complete system input sources & output channels
– set up sound Zones, EQ, routing and more
– smart & connected means you can update new features with downloadable firmware updates
– install speaker EQ files, back up and restore the system settings
– GPIO interface enables adding of any standard remote control (potentiometer)
– connect to smart automation controllers with our 3rd Party drivers
– link multiple amps via S/PDIF (master/slave)
– Pascal’s UMAC Class D amplifier technology is inside
– with market proven ultra-reliable amplifier modules

https://ui.blaze-audio.com/#/dashboard

Specificaties

– channels 2x Lo-Z/1 x Hi-Z
– output power @ 2 Ohm 2x 750W(SE)
– output power @ 4 Ohm 2x 750W(SE)/1x 1500W(BTL)
– output power @ 8 Ohm 2x 400W(SE)/1x 1500W(BTL)
– output power @ 70V 1x 1200W(BTL)
– output power @ 100V 1x 1500W(BTL)
– total system power 1500W
– power consumption 350W
– dimensions 88 x 440 x 332mm
– weight 5,9kg
– output circuitry UMAC class D full bandwidth PWM modulator with ultra-low distortion
– output voltage 80Vp / 160Vpp (SE unloaded) 160Vp / 320Vpp (BTL unloaded)
– signal to noise-ratio > 108 dB (A-weighted, 20 Hz – 20 kHz, 8 Ohm load)
– THD+N (typical) < 0,05 % (20 Hz – 20 kHz, 8 Ohm load, 3 dB below rated power)
– frequency response 20 Hz – 20 kHz (+0/-0,25 dB (8 Ohm load, 3 dB below rated power)
– protection circuits short circuit -, DC -, undervoltage -, temperature – and overload protection
– power supply UREC universal mains switch mode power supply with power factor correction (PFC) and standby converter
– operating temperature 0 – 40C
– operating voltage/frequency universal mains, 100-240V, 50-60Hz
– standby consumption < 0,5W
– accessories 2x rack ears, 4x adhesive feet
– power ratings 1% THD @ 120VAC and 230VAC
– SE conventional, single ended output mode
– BTL bridge-tied load output mode
