Blaze PowerZone 504 4x 125W 4 kanaals installatie versterker 4-16 Ohm & 70V/100V

Productbeschrijving

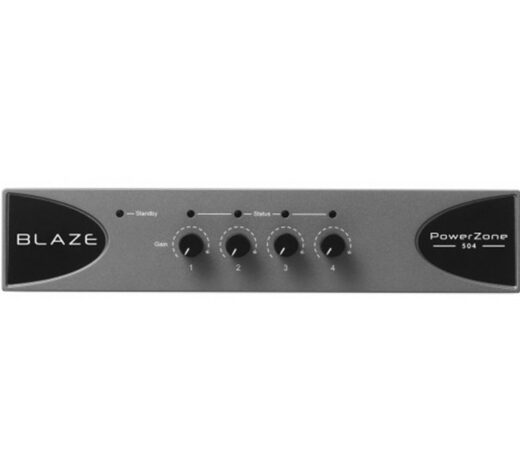

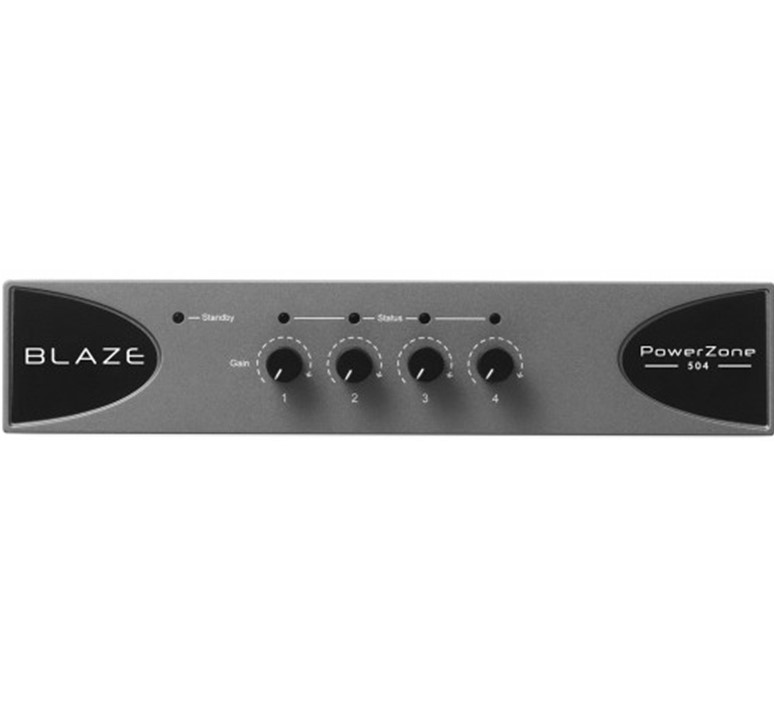

The PowerZone 504 is a 4 x 125 Watt power amplifier in a half width, 1U format.
It drives both low impedance (4 Ohm to 16 Ohm) and constant voltage (70V/100V) loudspeaker loads.
Each output channel can be independently configured to drive either Lo-Z or Hi-Z and automatic power sharing enables the total 500W to be shared proportionately across each pair of output channels (so 4 x 125W/channel or 2 x 250W/channel).

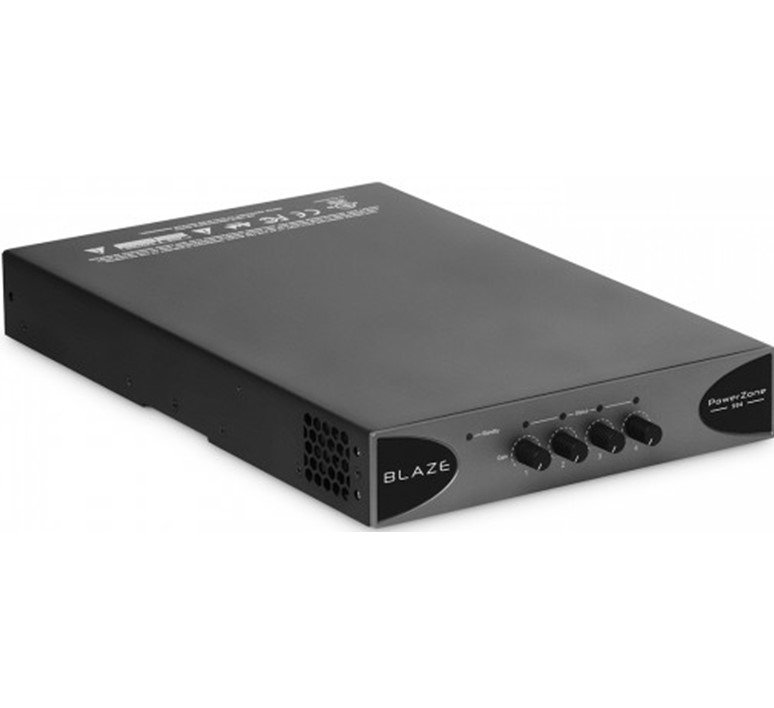

With a small form factor of just 22cm x 33cm it’s one of the most compact 4 channel amplifiers in its power class.

Features:
– configure any output in Low or High impedance share total power as you need it

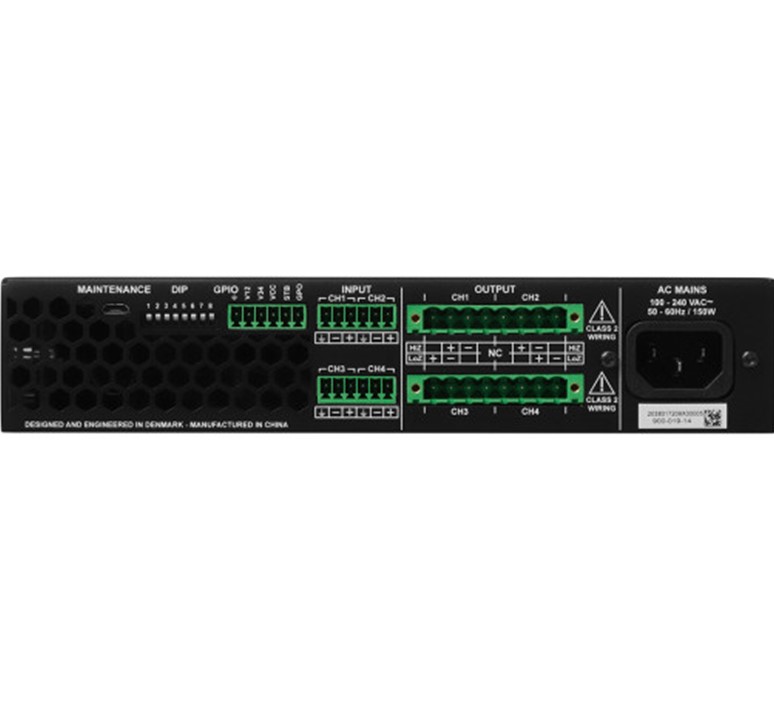

– DIP switches allow you to configure on site with GPIO connectors for external controllers
– ultra-compact form factor means it can be installed in spaces where others cannot
– class leading energy efficiency and long-term low cost of ownership
– powered by Pascal UMAC class-D technology

Specificaties

– total system power 500W
– output power @ 4/8 Ohm 4x 125W
– output power @ 70/100V 4x 125W
– powershare (up to) across all channels 2x 250W
– power consumption 150W
– dimensions 44,5 x 220 x 337mm
– weight 2,4kg
– output circuitry UMACTM class D full bandwidth PWM modulator with ultra-low distortion
– output voltage 70 Vp / 140 Vpp (unloaded) / bridged 140 Vp / 280 Vpp (unloaded)
– signal to noise-ratio > 100 dB (A-weighted, 20 Hz – 20 kHz, 8 Ohm load)
– THD+N (typical) < 0,05 % (20 Hz - 20 kHz, 8 Ohm load, 3 dB below rated power)
– frequency response 20 Hz – 20 kHz (+0/-0,25 dB (8 Ohm load, 3 dB below rated power)
– protection circuits short circuit protection, DC protection, under voltage protection
– temperature protection, overload protection
– power supply URECTM universal mains switch mode power supply with power factor correction (PFC) and integral standby converter
– operating voltage/frequency universal mains, 100-240V, 50-60Hz
– standby consumption < 0,5 W (Energy Star & ErP 1275/2008/EC compliant)
– accessories 2x rack ears, 1x 1/2 rack plate extension, 2x 1/2 rack mounting, 2x rear supports
– power ratings 1% THD @ 120VAC and 230VAC
