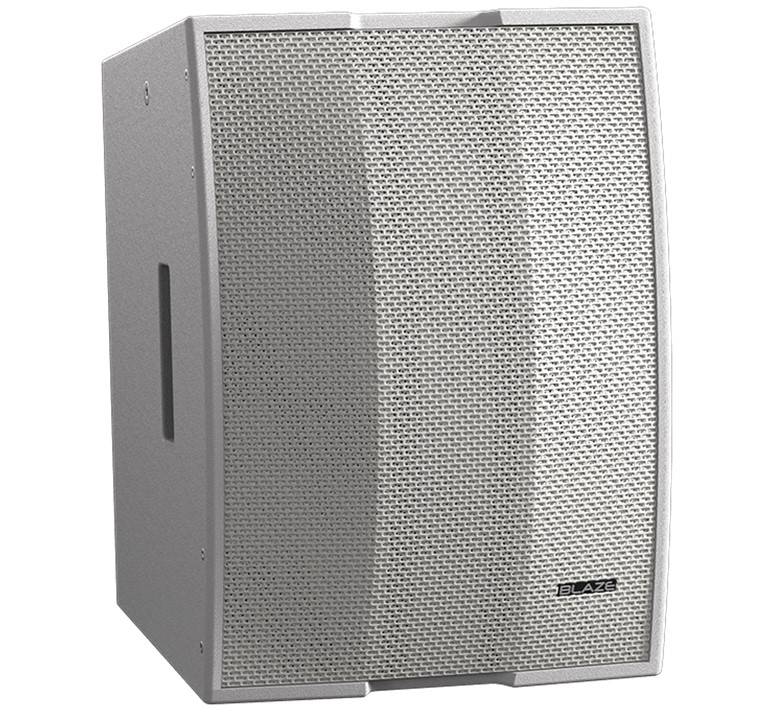

Blaze CBL528 constante bundel 2 weg line array speaker 180o x 45o 121dB SPL wit

Productbeschrijving

Featuring a compact form factor, the CBL528 makes an excellent choice for permanent installations such as fitness & sports venues, conference centers and Houses of Worship.
And with its Bi-Amped design for system integration with Blaze amplifiers, it also makes an excellent choice for permanent installations such as performing arts venues, commercial theaters, and Houses of Worship.

With its wide 180-degree horizontal and 45-degree vertical dispersion, this loudspeaker supports a frequency range from 54Hz to 18kHz ensuring clear, natural sounding music and highly articulate speech reproduction.
Equally important, the CBL528’s symmetrical dispersion pattern ensures listeners hear consistent sound regardless of whether they are positioned in front of, to the left, or to the right of the loudspeaker.

– highly focused pattern with consistent frequency response throughout the frequency range, on and off-axis
– symmetrical dispersion pattern

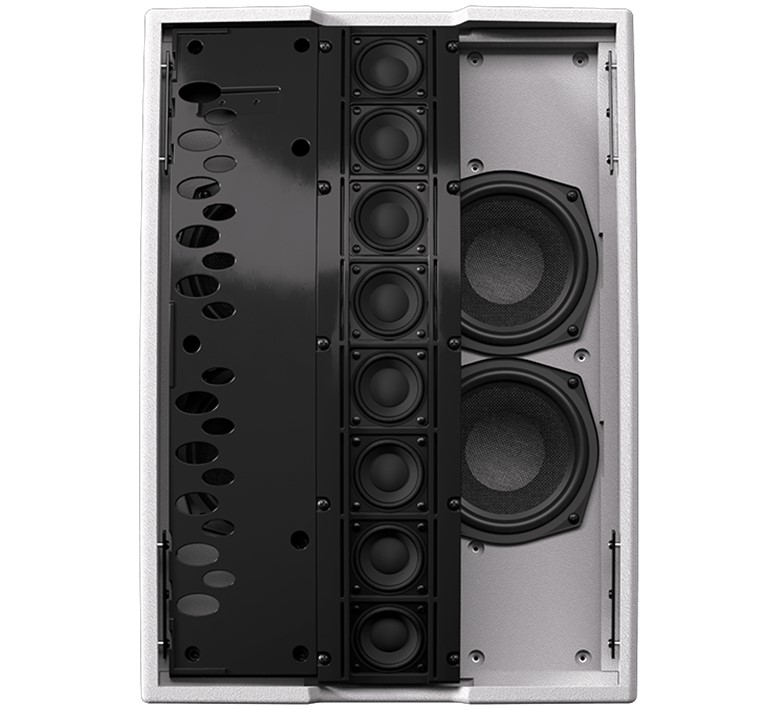

– four 5” low-frequency drivers, with tightly designed acoustic centers, minimize comb-filtering with a frequency response down to 54Hz
– eight vertically mounted 2” mid-high frequency drivers
– patent pending mid-high frequency gain shadingprovides a smooth and controlled 45º vertical pattern from 420Hz to 18kHz
– bi-amped design for system integration with Blaze audio amplifiers
– 180º symmetrical horizontal pattern control
– ultra low-distortion drivers
– system range 54Hz – 18kHz

Ultra flexible:
Constructed to thrive in fixed installations and beyond.

Highly focused, uniform coverage:
Exceptionally precise directional characteristics, ensuring consistent frequency response across the entire range, regardless of the listening angle.

DSP ready:
Professionally tuned for PowerZone digital processing & amplification.

Super wide, tightly controlled:
A crossover point at 420Hz continuing all the way up to 20KHz allows for a smooth blend of full range audio from the entire reflective physical space, rendering speech intelligibility holes obsolete.

Uncomplicating calculations:
Fixed vertical coverage at 45o per unit, optimizing system configuration, shortening project deployment time, and improving the installation experience.

Specificaties

– frequency response (-3dB) 54 Hz – 18 kHz
– frequency range (-10 dB) 48 Hz – 18 kHz
– recommended high-pass filter 48 Hz/minimum 24 dB / Butterworth filter
– horizontal nominal dispersion (-6 dB) 180o
– vertical nominal dispersion (-6 dB) 45o
– recommended crossover frequency 420 Hz (acoustic, active, external DSP)
– long term power handling (low freq.) 320W (1280W peak)
– long term power handling (high freq.) 200W (800W peak)
– low frequency impedance 8 Ohm
– high frequency impedance 5,2 Ohm
– pressure sensitivity (low freq @ 1W/1m) 93dB
– pressure sensitivity (high freq. @ 1W/1m) 95,5dB
– max system SPL (@1m) 121dB SPL (131dB SPL peak)
– enclosure 12mm birch plywood, engineered plastics
– finish two-part spray catalyzed Polyurea coating on plywood

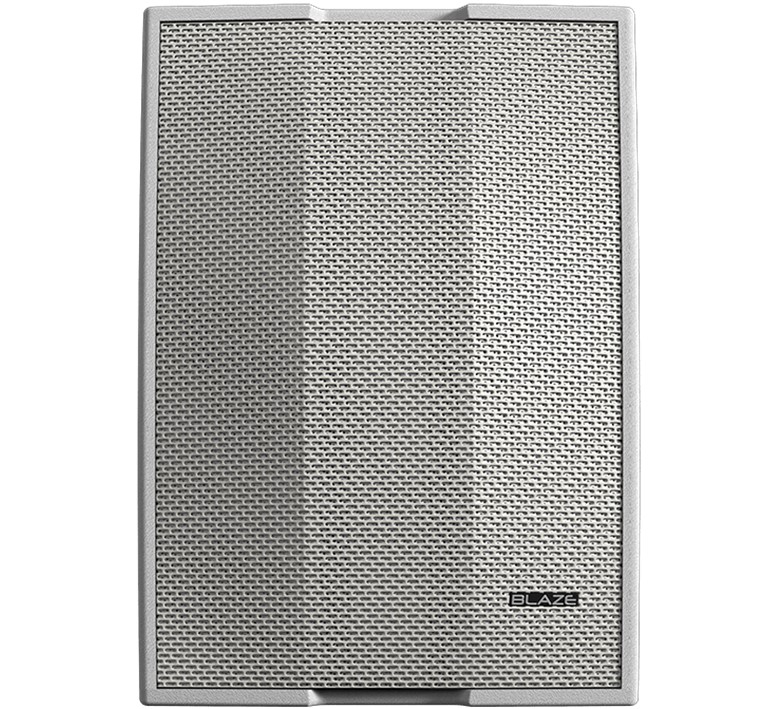

– grille 14-gauge (2mm) perforated steel, powder-coated finish, black
– indoor use only
– connectors/bi-amp one (1) NL4 Neutrik Speakon connector
– suspension/mounting M10 x 4, projector mount, two-position pole mount
– dimensions (H x W x D) 494,3 x 494 x 406,16mm
– net weight 17,46kg
– shipping weight 19,75kg
– product version CBL528-W
