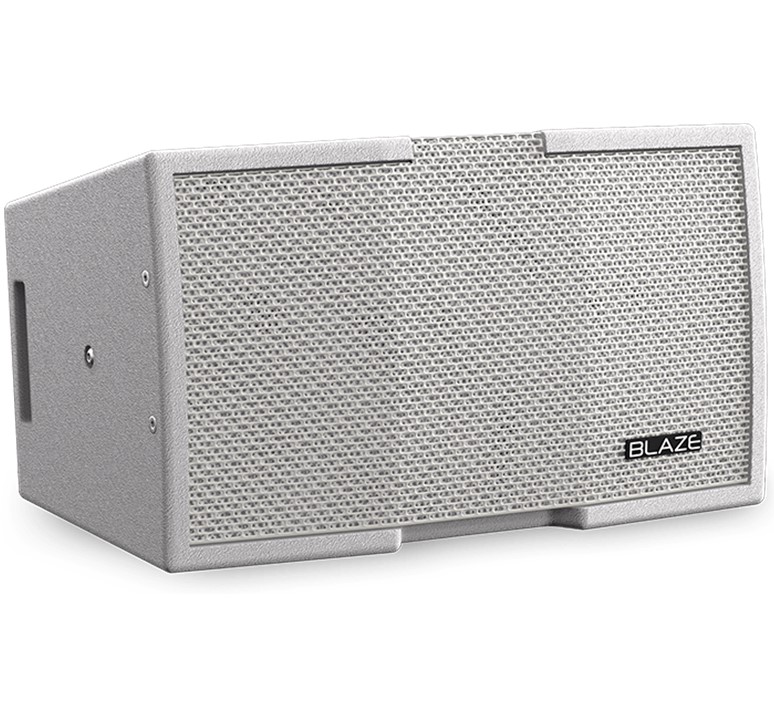

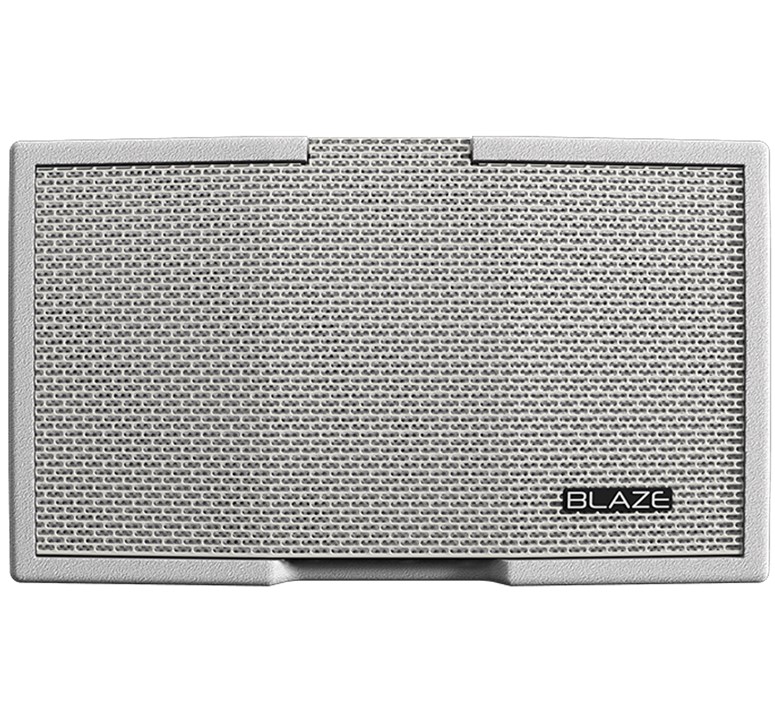

Blaze CBL523 compacte constante bundel 2 weg line array speaker 160o x 55o 119dB SPL wit

Productbeschrijving

The ultra-compact and innovatively designed CBL523 is a perfect fit where on-wall distributed audio is needed.

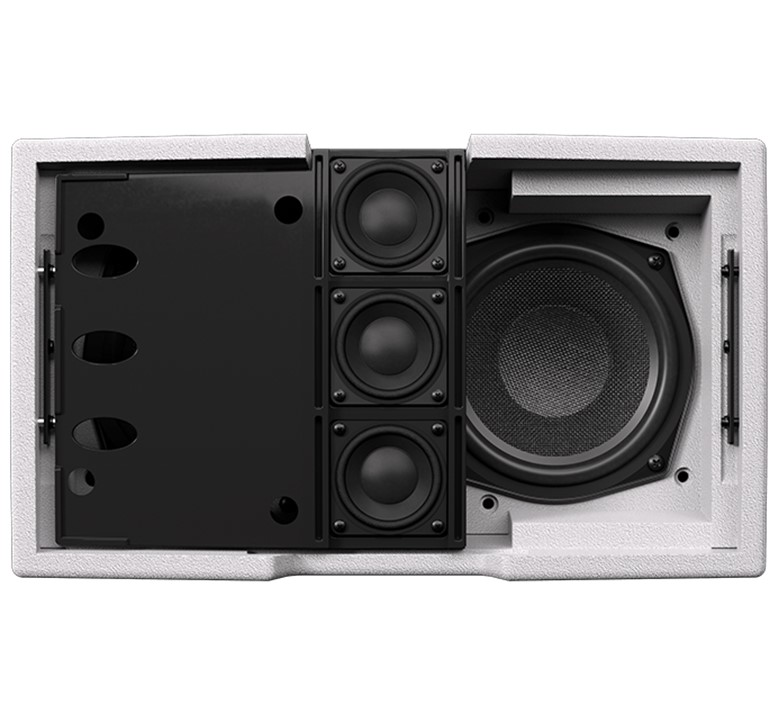

The 20,5 x 35cm enclosure features two 5” low-frequency drivers complimented by a vertical constant directivity array of three 2” high-frequency drivers, delivering 119dB of maximum SPL in a focused 160o (horizontal) x 55o (vertical) pattern.
The CBL523 has versatile mounting options with custom designed hardware, as well as the ability to stack and suspend two units together for increased SPL and an increased vertical pattern.

– (2x) 5” custom LF drivers
– (3x) 2” vertically arrayed HF drivers
– 160o x 55o constant directivity pattern
– components have been selected solely for their performance
– 119dB maximum SPL
– symmetrical and compact trapezoidal design
– powder coated steel grille with a high transmission ratio
– tuned with a passive crossover and integration with Blaze Audio amplifiers with custom DSP and FIR filtering.

Small size, big impact:
Enhancing and harmonizing with the entire Blaze Audio loudspeaker family.

Affordable, capable:
Adaptable performance for delay, under-balcony, and wall-mount applications.

DSP ready:
Professionally tuned for PowerZone™️ digital processing & amplification.

Super wide, tightly controlled:
A crossover point at 520Hz continuing all the way up to 20KHz allows for a smooth blend of full range audio from the entire reflective physical space, rendering speech intelligibility holes obsolete.

Enriched features:
In dual mode, the CBL523 transforms into a compact constant curvature array, excelling in scenarios demanding precise pattern control.
Along with the benefits of control, dual mode enables a total system SPL boost of 3dB.

Specificaties

– frequency response (-3dB) 71Hz – 18kHz
– frequency range (-10 dB) 55Hz – 18kHz
– recommended high-pass filter 48Hz
– horizontal nominal dispersion (-6 dB) 160o
– vertical nominal dispersion (-6 dB) 55o (average beamwidth, 500Hz – 5kHz)
– recommended crossover frequency 520Hz
– long term power handling (full range) 160W
– impedance 4 Ohm
– pressure sensitivity @ 1W/1m (2,83V) 91dB
– max system SPL @ 1m (2,83V) 119dB
– enclosure 12mm Baltic birch plywood, engineered plastics
– finish two-part spray catalyzed Polyurea coating on plywood
– grille 16-gauge (1,6mm) perforated steel, powder-coated finish, black
– environmental indoor use only
– connectors/bi-amp two (2) parallel-wired NL4 Neutrik Speakon connectors
– suspension/mounting wall/ceiling mount and suspension options, hardware sold separately
– dimensions (H x W x D) 205,32 x 350 x 226,21mm
– net weight 6,8kg
– shipping weight 8,16kg
– product version CBL523-W
