Allen & Heath Qu-32 digitale mixer 32x mic/line, 3x stereo line, 4x FX, 24x mix & 7″ touchscreen

Productbeschrijving

Introducing the New Compact Digital Mixers from Allen & Heath:
We have been creating high end mixing consoles for some of the most discerning ears in the business since 1969.
We’re not a software house, we don’t make stomp boxes or cable testers – creating excellent mixers is, has been and always will be our great passion.
Qu mixers have been designed by our in-house research and development team in Cornwall, Great Britain, and are directly descended from the GLD and iLive digital mixing systems that have earned the industry’s respect night after night on tour and in live venues across the globe – so you can be confident that you’re standing behind a premium mixer that looks, feels, and sounds like a pro.

Qu mixers harness the full potential of digital mixing technology, with total recall of settings (including the all-important fader position and preamp gain), convenient recording and playback solutions, iPad control, personal monitoring options and the choice of local or remote Cat5 I/O.

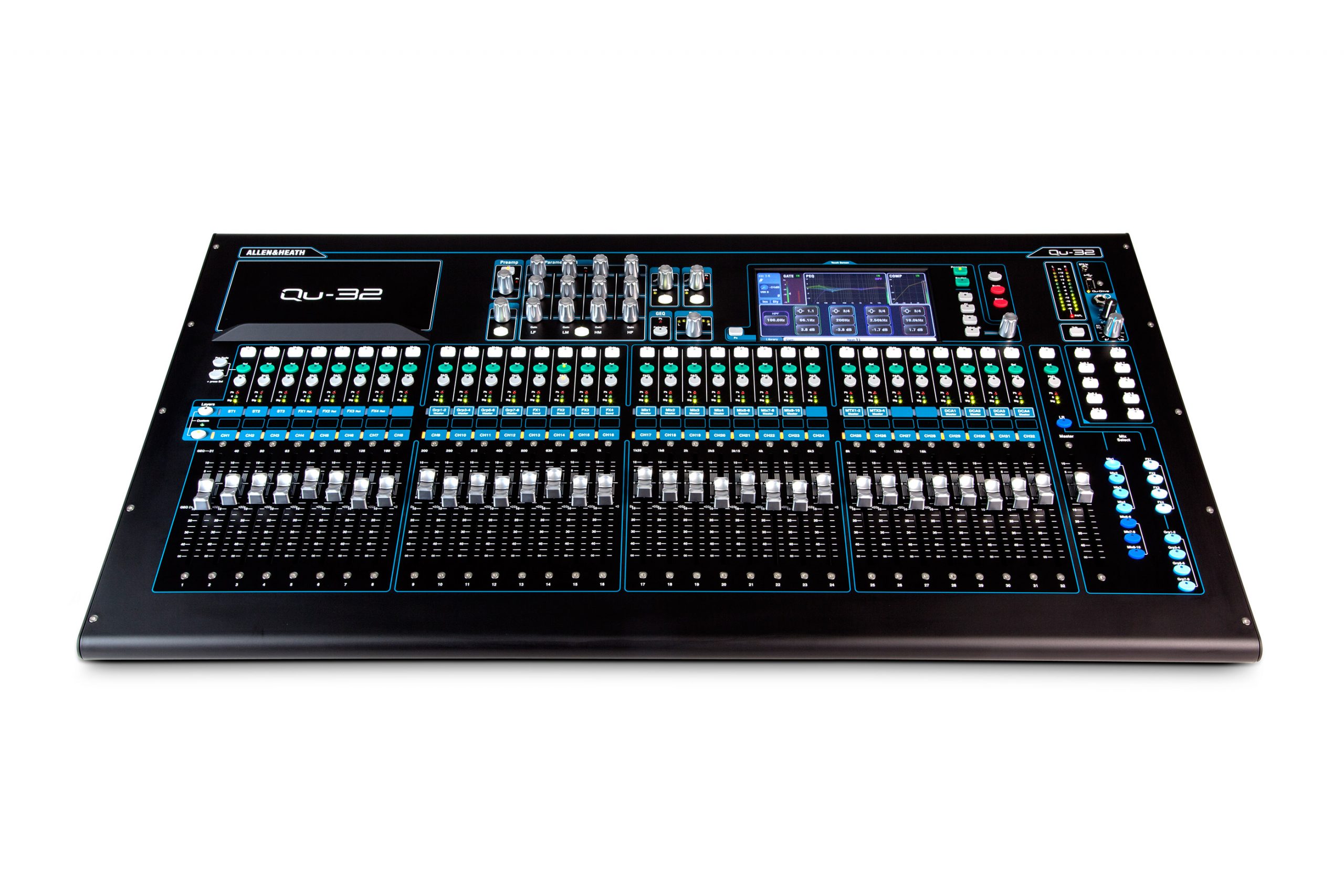

With its responsive touchscreen, 33 motor faders and acclaimed AnalogiQTM recallable preamps, Qu-32 combines exceptional ease of use with class-leading audio performance.

Drawing on the technologies and workflow pioneered on our GLD and iLive touring systems, Qu makes Allen & Heath digital mixing more accessible than ever.

Features
– FX and Processing
– RB_QuFX

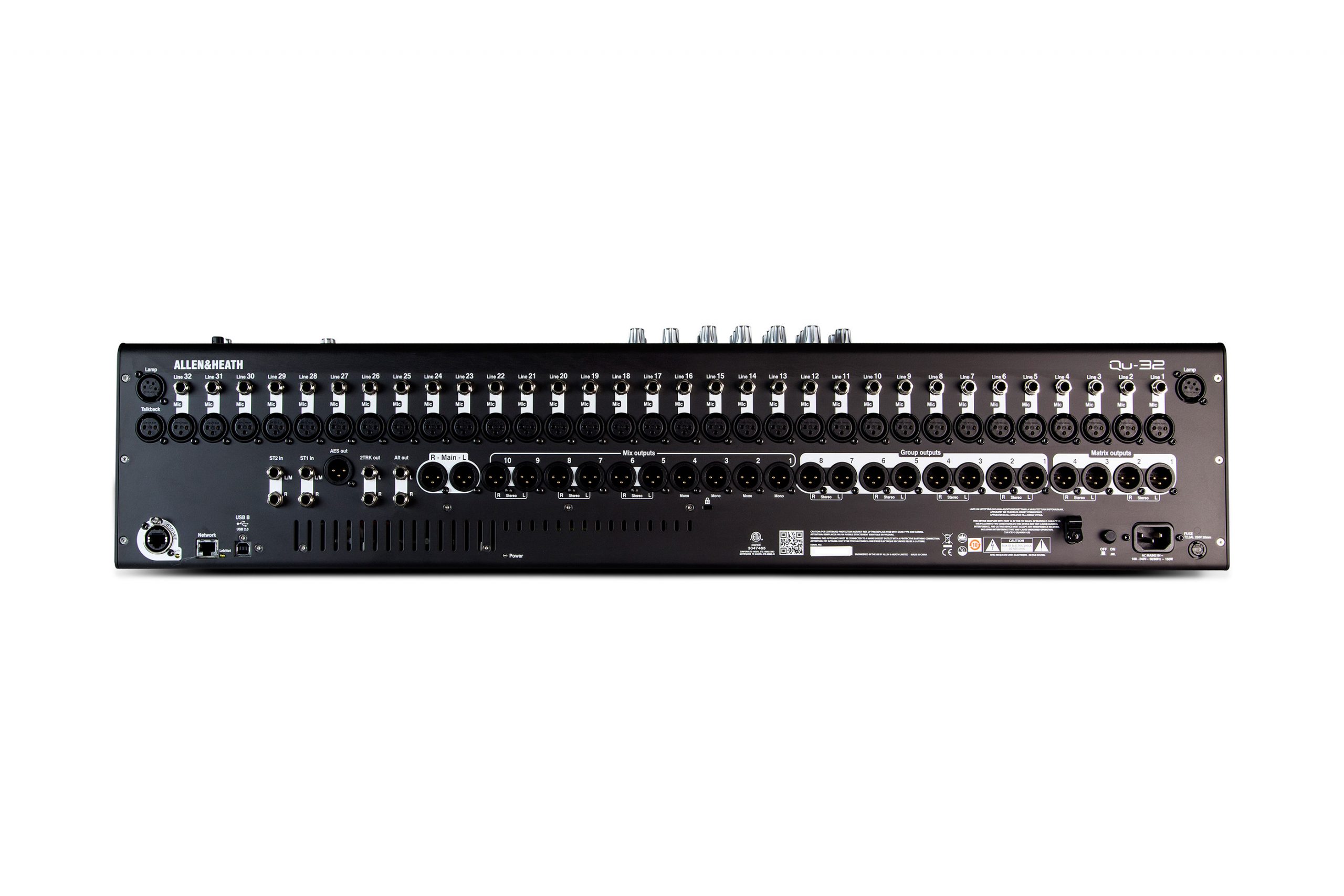

– 32 Mic / Line Inputs (TRS + XLR)
– 33 Motor Faders
– 3 Stereo Inputs (TRS)
– 24 Mix Outputs (XLR)
– 4 Stereo Groups
– 2 Stereo Matrix Outs
– 4 DCA Groups
– 4 Mute Groups
– 4 FX Engines
– 4 FX Sends / Returns
– 10 Soft Keys
– 32×32 USB Audio Interface
– DAW MIDI Control
– AES Digital Out
– Recallable AnaLOGIQTM Preamps
– Qu-Drive direct Multitrack Recording / Playback on USB drives
– 7” Touchscreen
– iLive FX Library
– dSNAKETM Remote Audio Port
– Compatible with ME Personal Mixing System

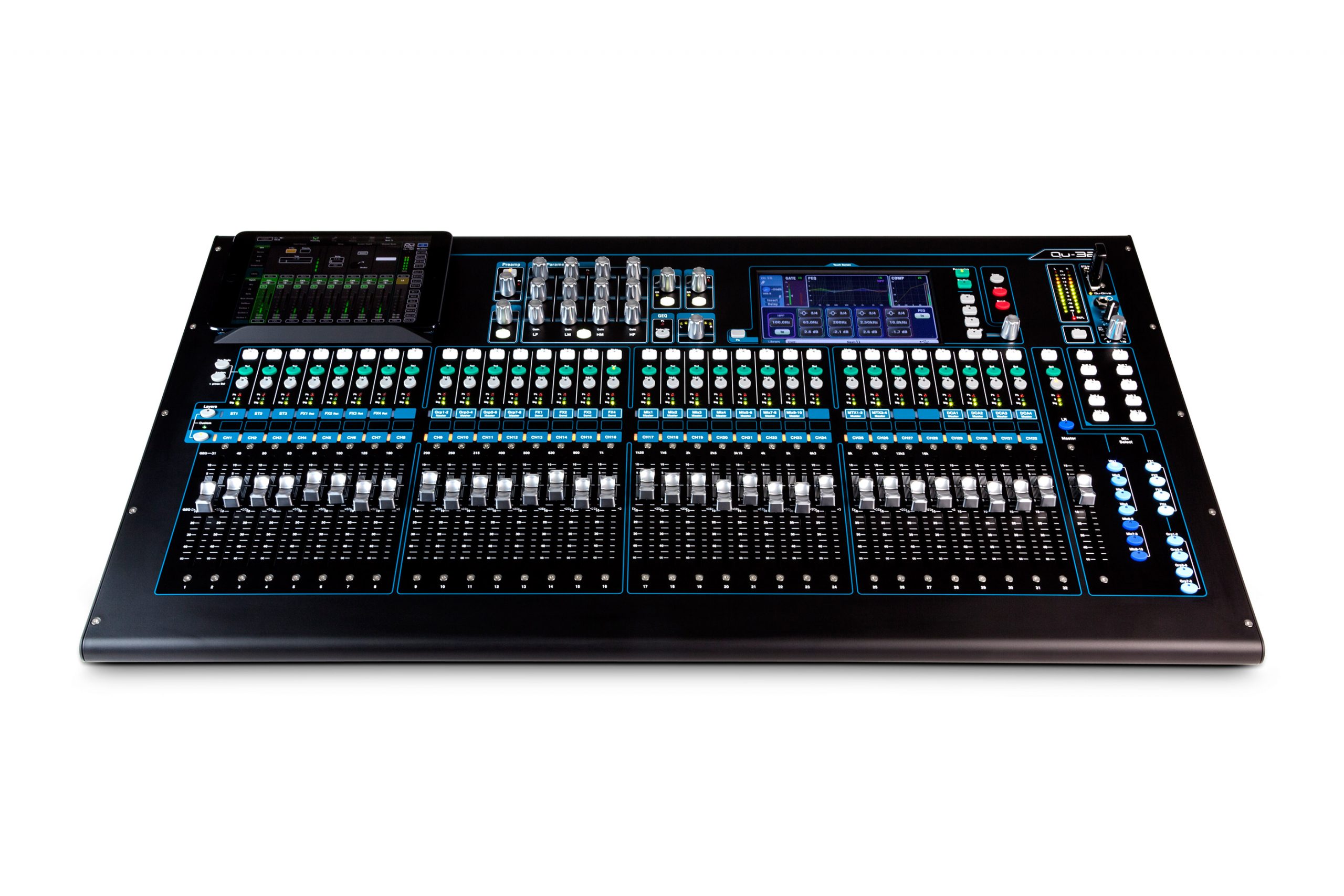

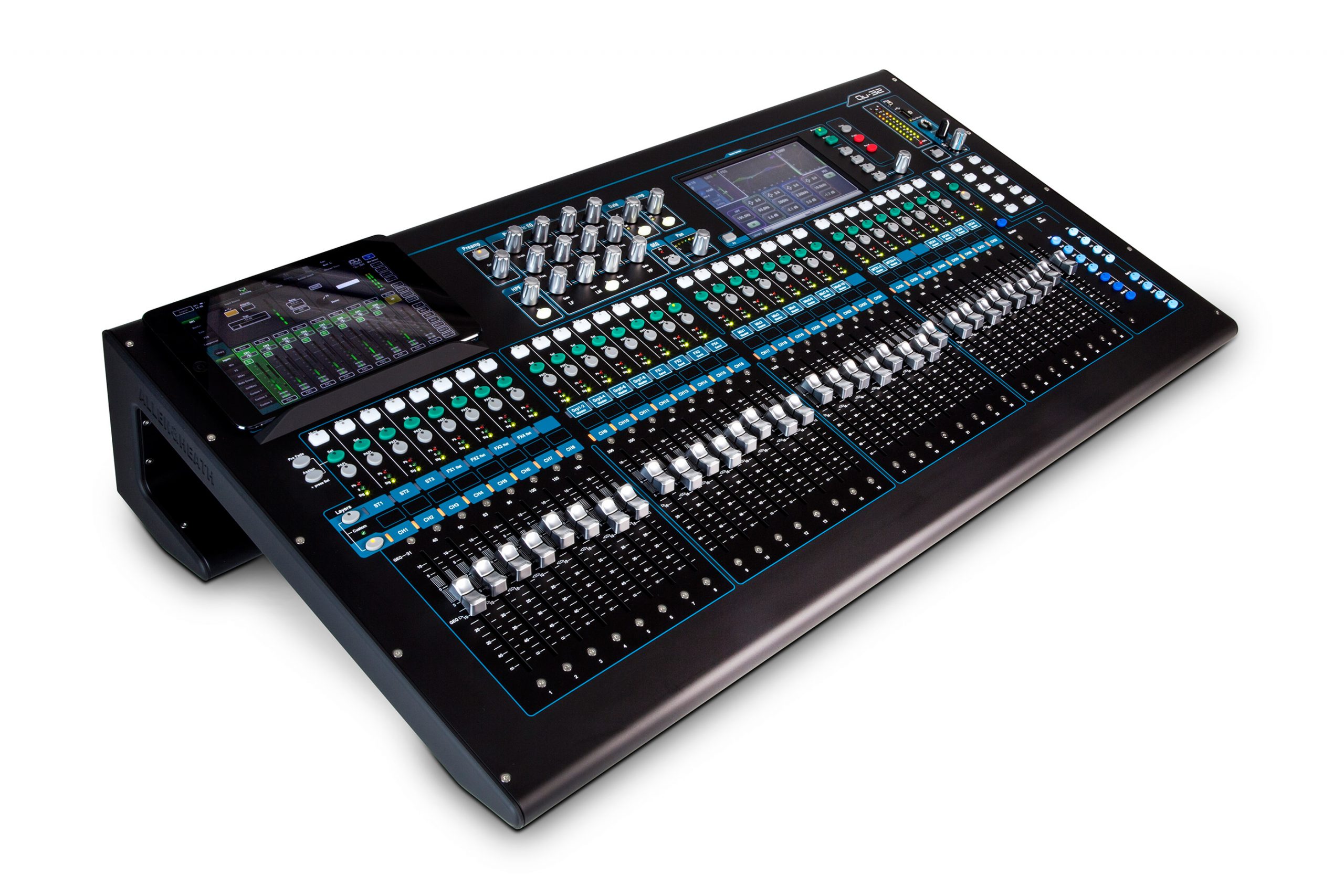

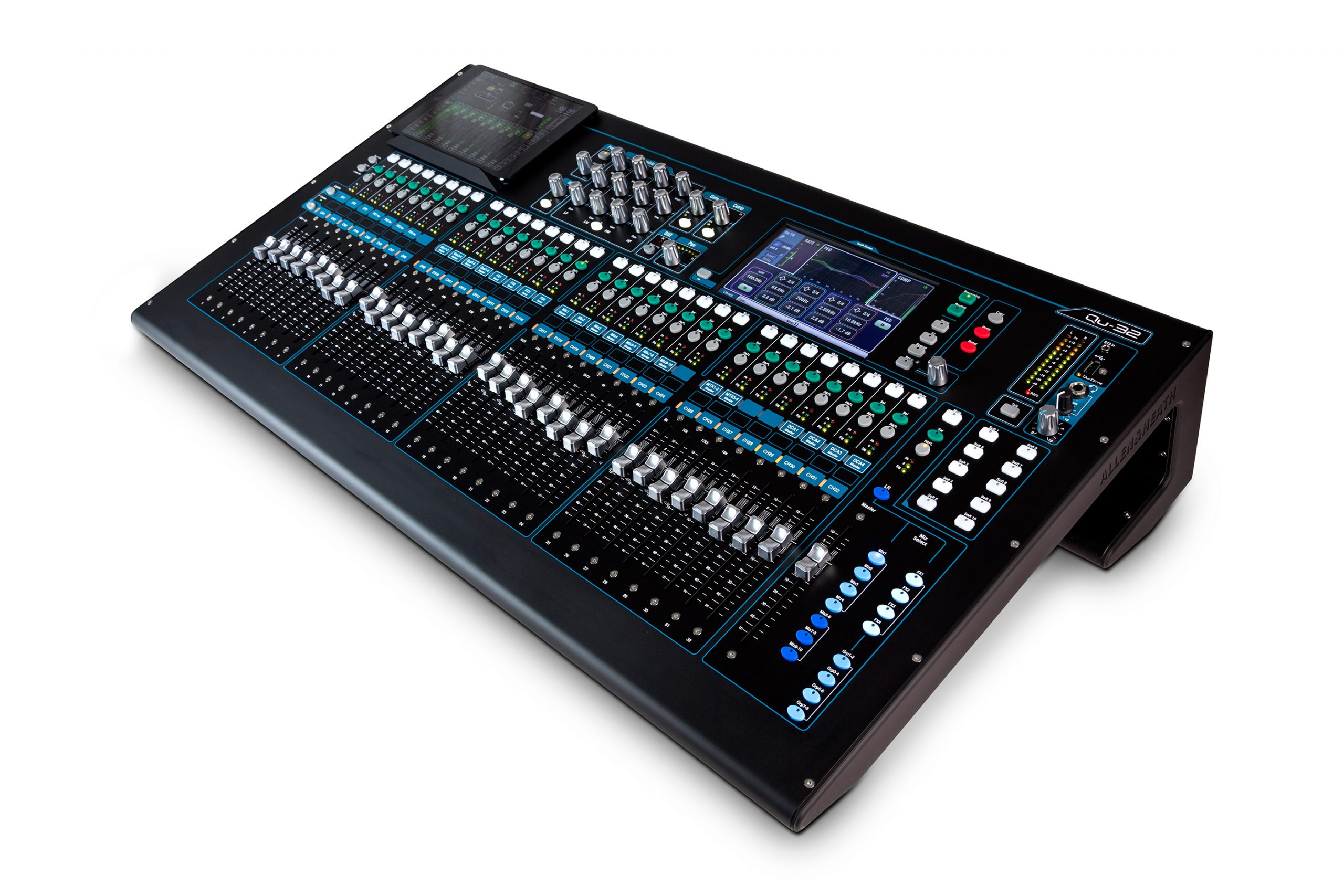

– Qu-Pad iPad App
– Trim, polarity, HPF, gate, insert, 4-band PEQ, compressor and delay on all Inputs
– Insert, 4-band PEQ, 1/3 octave GEQ, compressor and delay on all Mix outputs
– Built-in Signal Generator
– RTA with Peak Band indication

Our AnalogiQ total recall preamps feature zero crossing detection and an advanced padless 1dB step gain stage, closely allied to the DSP for optimal gain accuracy and audio transparency.
The analogue signal is captured by high class, low latency 24bit analogue to digital converters matched to high quality 24bit digital to analogue converters to deliver the required outputs.
The AnalogiQ design has been refined to offer superb transparency, minimal distortion and an ultra-low noise floor, with a warm, musical sound that is missing from some digital consoles.

Having massive processing power and advanced functionality is great, but it counts for nothing if you can’t access the controls you need in a heartbeat.
Once you start using a Qu you’ll sense the years of research into ergonomics and the hands-on mixing experience that our team has drawn upon to deliver a wonderfully natural layout and workflow.
It’s not about recreating an analogue interface, it’s about creating an experience that’s fluid, comfortable and intuitive for novices, digital natives and old school road warriors alike, making all the benefits of digital mixing technology readily accessible to all.

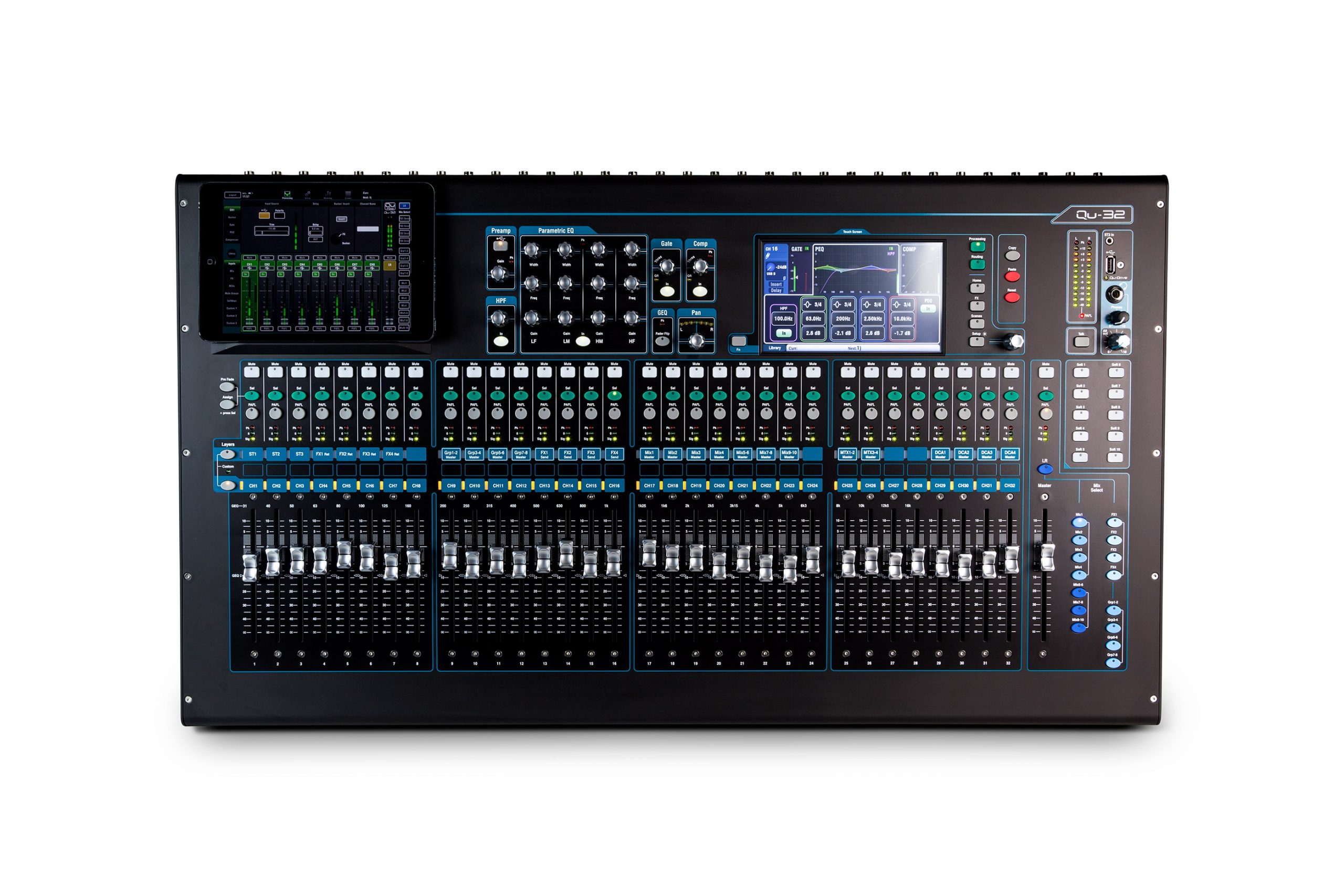

Qu-32’s 7 inch, 800 x 480, sixteen million colour Touchscreen and its dedicated data encoder form the heart of the Qu interface, providing super-fast, easy access to all settings.
The user-friendly interface has been designed with clarity in mind.
Dedicated keys and screen tabs quickly guide you to meter and RTA views, FX racks, channel processing, USB audio control, scenes, setup menus and much more.

All your key processing tools are presented in a clean layout on the SuperStrip, with 1 function per physical control.
The SuperStrip is complemented by an onscreen Touch Channel for intuitive access to full processing parameters without clutter or complex menu structures.
Processing for Mono and Stereo inputs includes trim, polarity, HPF, gate, insert, 4 band PEQ, compressor and delay.
The main LR and the Mono mixes have controls for Insert, 1/3 octave GEQ, compressor and delay.
The Stereo mixes provide Insert, 4-band PEQ, compressor, delay and balance control.

Moving faders started as an expensive option in the studio desks of the 80s, and later became the norm with the advent of digital technology.
Nevertheless some entry-level digital mixers lack this precious commodity which is a fundamental part of the Total Recall approach.
Fader automation is essential for rapid mixing, especially when you’re dealing with multiple monitor mixes – just press a mix key and the faders immediately fly to the send levels for that mix.
Qu-16, Qu-24 and Qu-32 feature 16, 24 and 32 motorized ALPS faders respectively, arranged over 2 layers, allowing instant access to all channels and masters in a compact space, plus a dedicated master fader which dynamically follows the mix selection.
A third, Custom layer is available for ad-hoc user strip layout, where any combination of Inputs, FX Sends, FX Returns, Mix masters and MIDI strips can be assigned.

Qu’s dynamics and FX algorithms are derived from the FX used in our iLive pro touring series. Some of the world’s most respected audio engineers have chosen to use iLive’s FX on tour in preference to top-end plug-ins and external FX units. All Qu models boast 4 stereo iLive FX engines, featuring lovingly crafted emulations of legendary classic reverbs, gated reverbs, delays, modulators, flangers and more.

The FX library has the ability to grow with future firmware releases.
FX are returned to the mix on dedicated return channels, so you’re not tying up your mono and stereo input channels.
Each Stereo FX Return has a dedicated 4 band PEQ.
