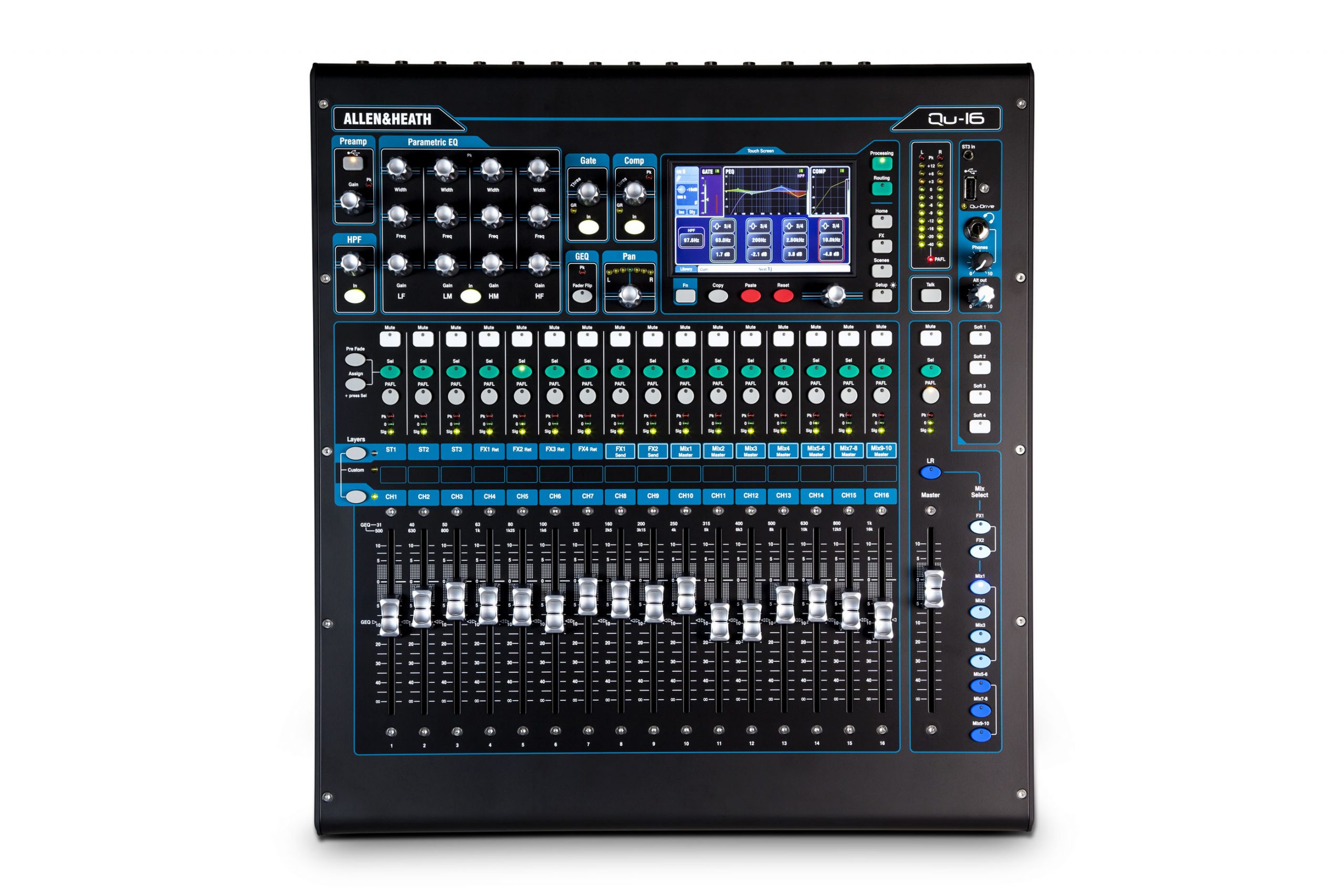

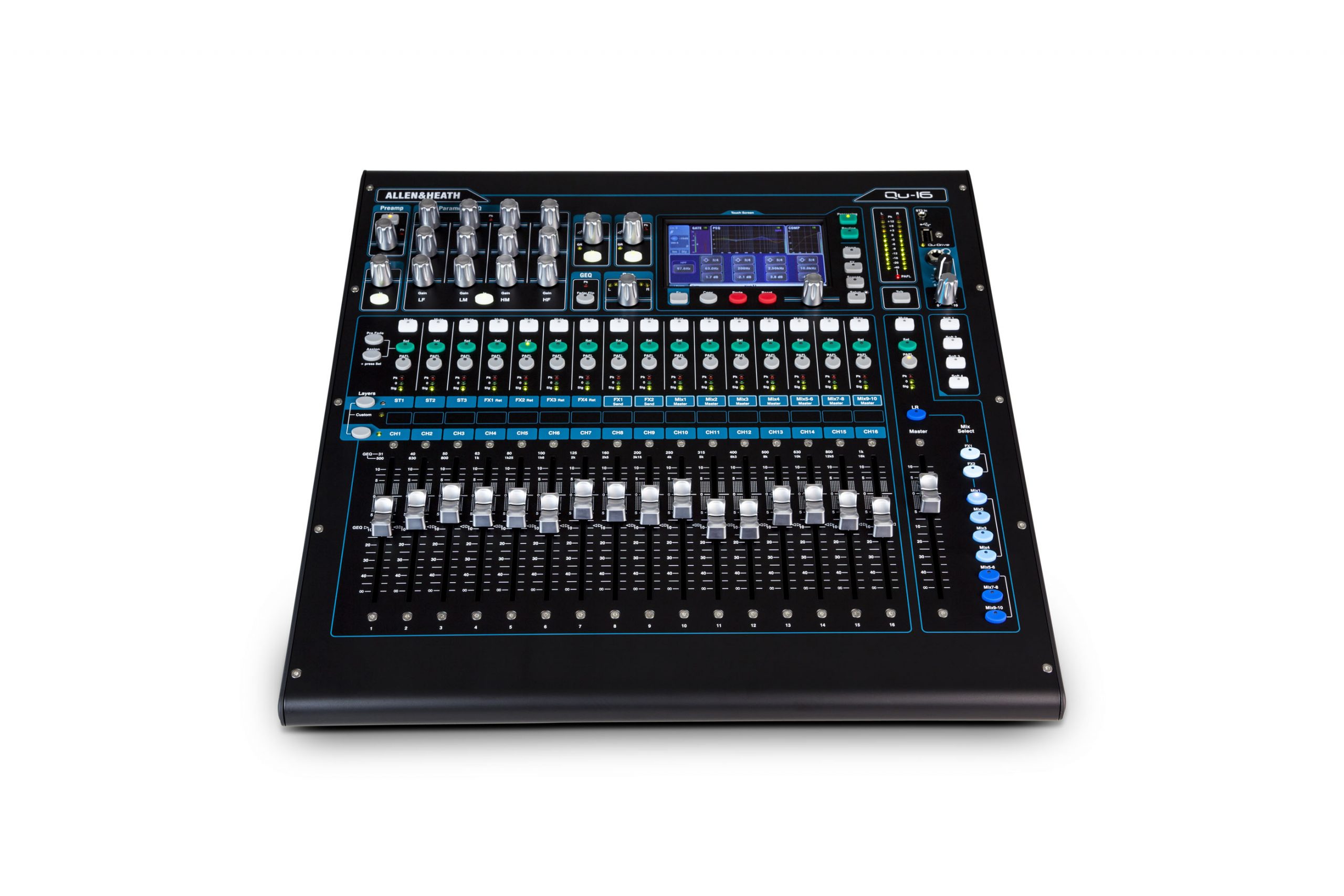

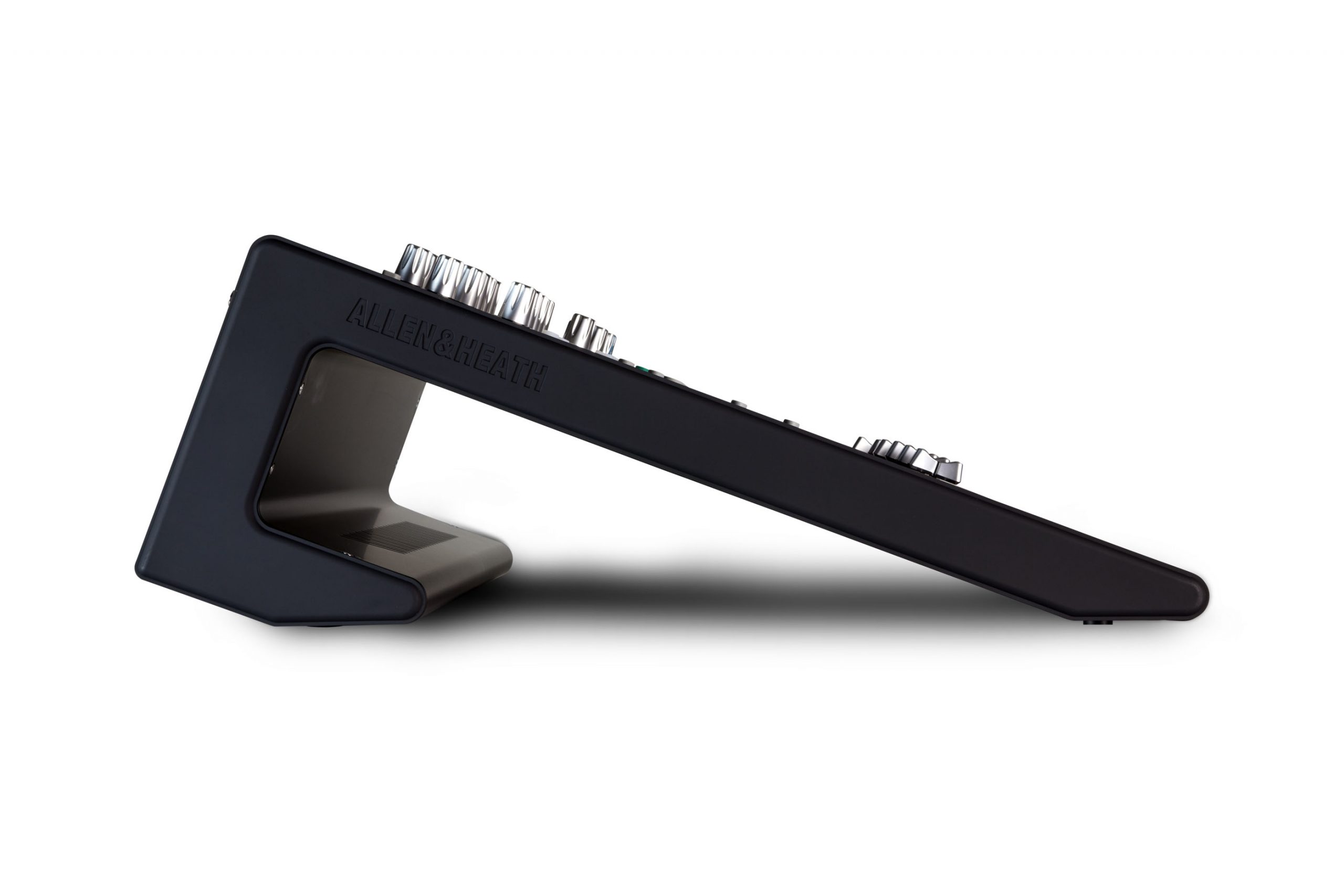

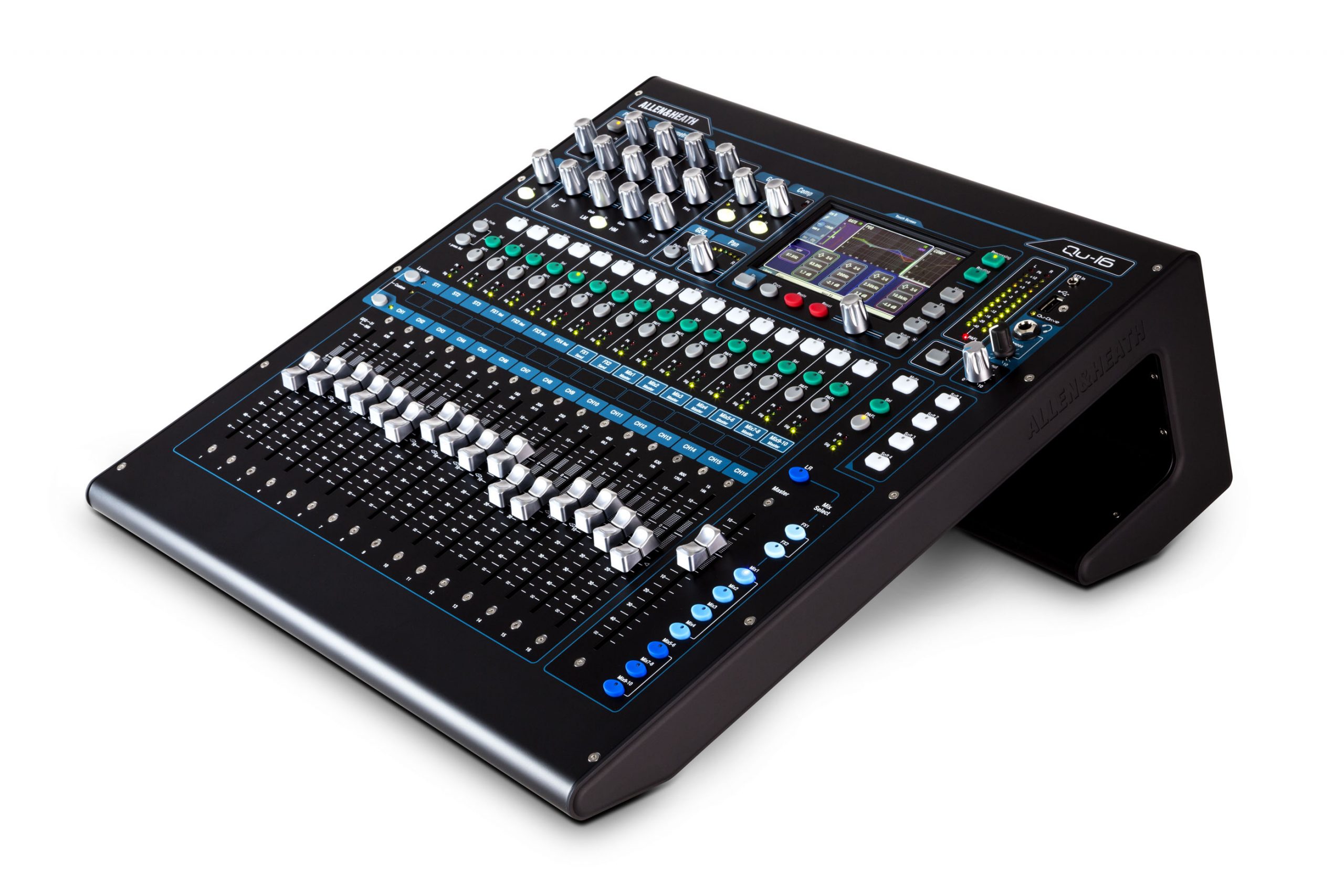

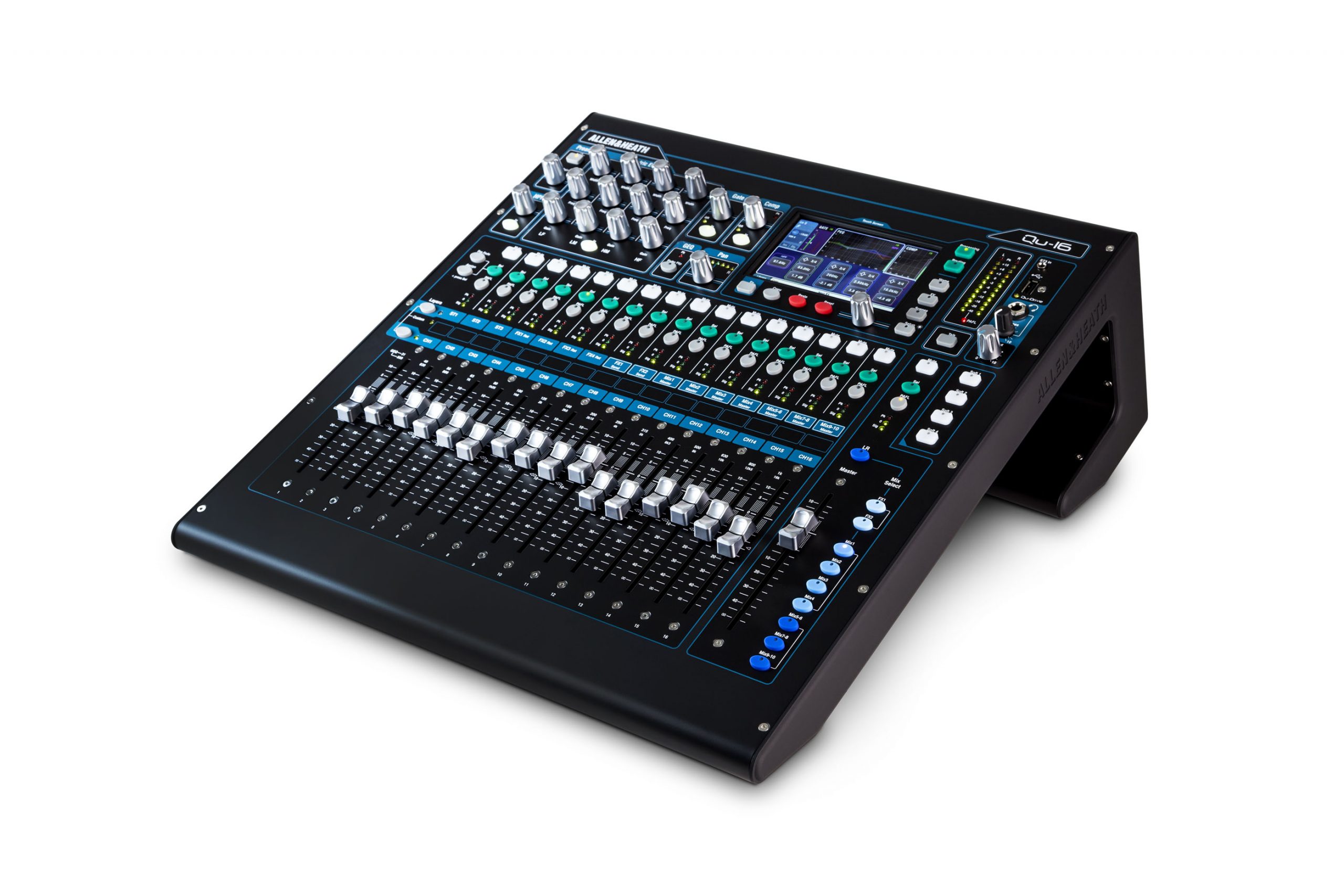

Allen & Heath Qu-16 digitale rackmixer 16x mic/line, 3x stereo line, 4x FX,12x mix & 5″ touchscreen

Productbeschrijving

Introducing the New Compact Digital Mixers from Allen & Heath:
We have been creating high end mixing consoles for some of the most discerning ears in the business since 1969.
We’re not a software house, we don’t make stomp boxes or cable testers – creating excellent mixers is, has been and always will be our great passion.
Qu mixers have been designed by our in-house research and development team in Cornwall, Great Britain, and are directly descended from the GLD and iLive digital mixing systems that have earned the industry’s respect night after night on tour and in live venues across the globe – so you can be confident that you’re standing behind a premium mixer that looks, feels, and sounds like a pro.

Qu mixers harness the full potential of digital mixing technology, with total recall of settings (including the all-important fader position and preamp gain), convenient recording and playback solutions, iPad control, personal monitoring options and the choice of local or remote Cat5 I/O.

Features:

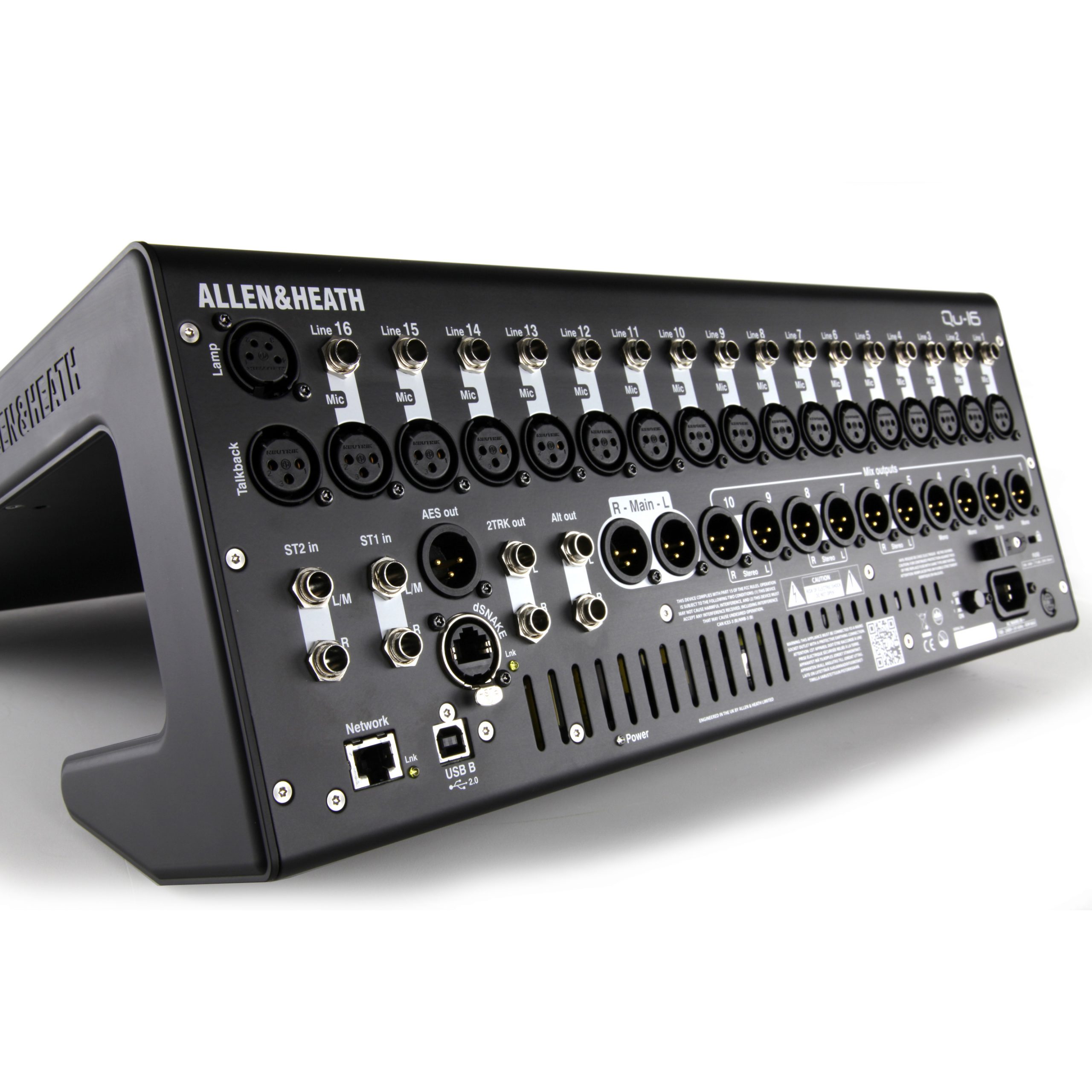

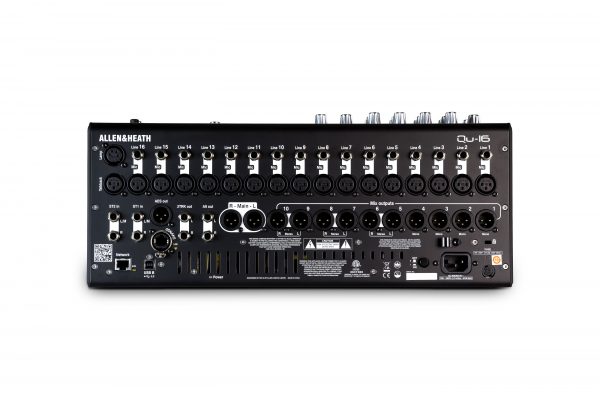

– 16 Mono Inputs (TRS + XLR)
– 3 Stereo Inputs (TRS)
– 4 Stereo FX Returns
– 16 Busses
– 12 Mix Outputs (LR, Mono Mix 1-4, Stereo Mix 1-3)
– 4 FX Engines
– AES Digital Out

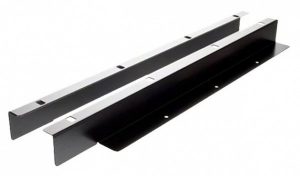

– 19” Rack Mountable
– Moving Faders
– Recallable AnaLOGIQTM Preamps
– Qu-Drive direct Multitrack Recording / Playback on USB drives
– 800×480 Touchscreen
– iLive FX Library
– dSNAKE Remote Audio Port
– Compatible with ME Personal Mixing System
– Qu-Pad iPad App
– USB Audio Streaming
– DAW MIDI Control
– 4 Mute Groups
– 4 DCA Groups
– Trim, polarity, HPF, gate, insert, 4-band PEQ, compressor and delay on all Inputs
– Insert, 1/3 octave GEQ, compressor and delay on Main LR and Mono Mix outputs
– Insert, 4-band PEQ, compressor and delay on Stereo Mix outputs
– Built-in Signal Generator
– RTA with Peak Band indication

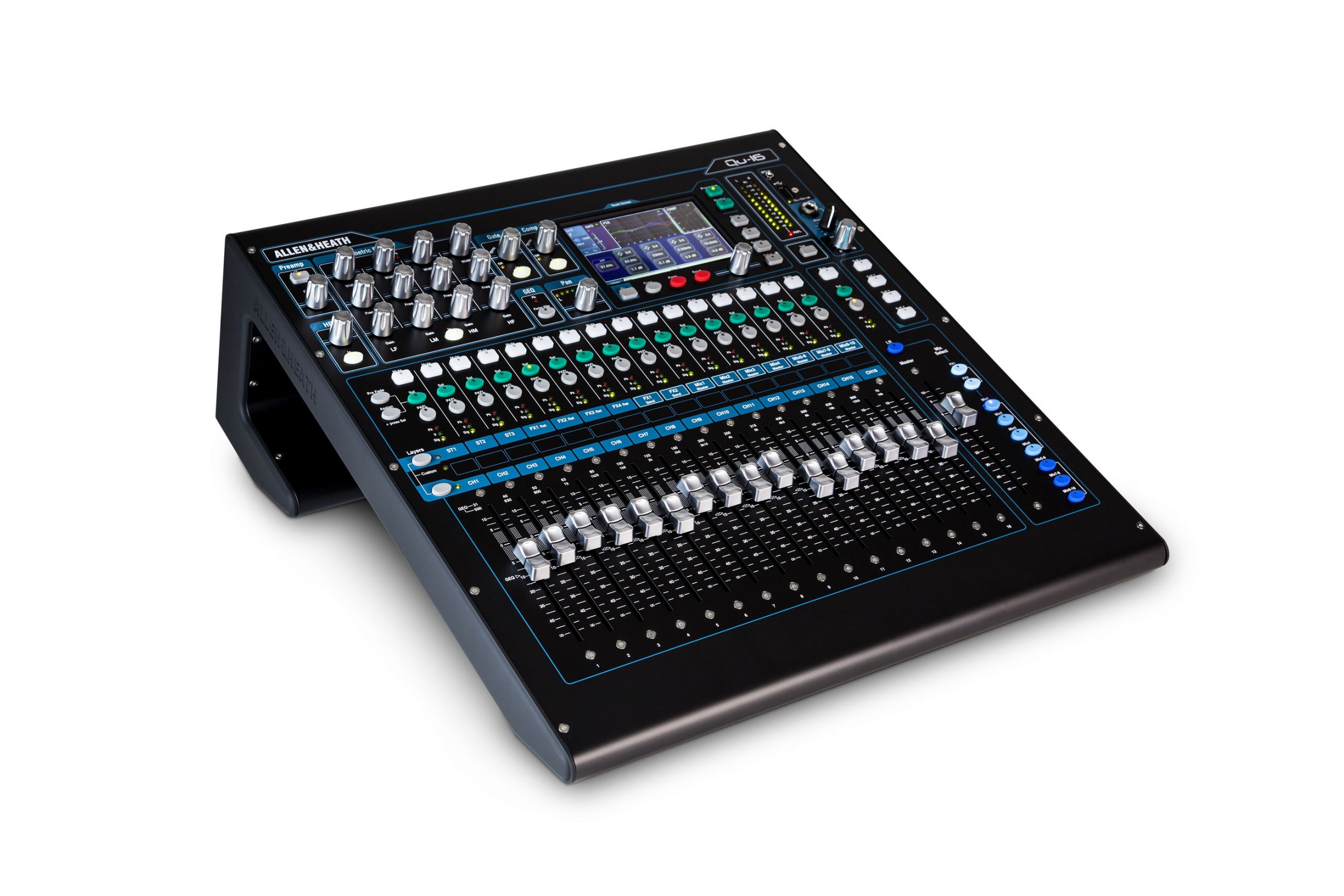

Qu-16 takes compact digital mixing to a new level with innovative design and exceptional functionality combining to create a superb professional mixing experience.

Bristling with all the features you’d expect from a top of the range digital console and incorporating technologies pioneered on our GLD and iLive digital mixing systems, Qu-16 has the power and pedigree to deliver class-leading audio performance.

Whether you’re switching from analogue or updating your digital desk, it’s time to experience the new digital with Qu-16.

AnalogiQ Preamps:
Qu-16’s sixteen AnalogiQTM total recall preamps feature zero crossing detection and an advanced padless 1dB step gain stage, closely allied to the DSP for optimal gain accuracy and audio transparency.
The analogue signal is captured by high class, low latency 24bit analogue to digital converters matched to high quality 24bit digital to analogue converters to deliver the required outputs.
The AnalogiQTM design has been refined over many months to offer superb transparency, minimal distortion and an ultra-low noise floor, with a warm, musical sound that is missing from some digital consoles.

Having massive processing power and advanced functionality is great, but it counts for nothing if you can’t access the controls you need in a heartbeat.
Once you start using Qu-16 you’ll sense the years of research into ergonomics and the hands-on mixing experience that our team has drawn upon to deliver a wonderfully natural layout and workflow.
It’s not about recreating an analogue interface, it’s about creating an experience that’s fluid, comfortable and intuitive for novices, digital natives and old school road warriors alike, making all the benefits of digital mixing technology readily accessible to all.

The 800 x 480, sixteen million colour Touchscreen and its dedicated data encoder form the heart of the Qu-16 interface, providing super-fast, easy access to all settings.
The user-friendly interface has been designed with clarity in mind.
Dedicated keys and screen tabs quickly guide you to meter and RTA views, FX racks, channel processing, USB audio control, scenes, setup menus and much more.

All your key processing tools are presented in a clean layout on the SuperStrip, with 1 function per physical control.
The SuperStrip is complemented by an onscreen Touch Channel for intuitive access to full processing parameters without clutter or complex menu structures.
Processing for Mono and Stereo inputs includes trim, polarity, HPF, gate, insert, 4 band PEQ, compressor and delay.
The main LR and the Mono mixes have controls for Insert, 1/3 octave GEQ, compressor and delay.
The Stereo mixes provide Insert, 4-band PEQ, compressor, delay and balance control.

Moving faders started as an expensive option in the studio desks of the 80s, and later became the norm with the advent of digital technology.
Nevertheless some entry-level digital mixers lack this precious commodity which is a fundamental part of the Total Recall approach.
Fader automation is essential for rapid mixing, especially when you’re dealing with multiple monitor mixes – just press a mix key and the faders immediately fly to the send levels for that mix.
Qu-16 features 17 motorized ALPS faders, 16 arranged over 2 layers, allowing instant access to all channels and masters in a compact space, plus a dedicated master fader which dynamically follows the mix selection.
A third, Custom layer is available for ad-hoc user strip layout, where any combination of Inputs, FX Sends, FX Returns and Mix masters can be assigned.

Qu-16’s dynamics and FX algorithms are derived from the FX used in our iLive pro touring series.
Some of the world’s most respected audio engineers have chosen to use iLive’s FX on tour in preference to top-end plug-ins and external FX units.
Qu-16 boasts 4 stereo iLive FX engines, featuring lovingly crafted emulations of legendary classic reverbs, gated reverbs, delays, modulators, flangers and more.
The FX library has the ability to grow with future firmware releases.
FX are returned to the mix on dedicated return channels, so you’re not tying up your mono and stereo input channels.
Each Stereo FX Return has a dedicated 4 and PEQ.

True digital mixing is about being able to save and recall scenes (snapshots) at the press of a button.
Qu-16 can store up to 100 full Scenes for recall at will.
Channels and mixes can be made Safe from Scene recall.
For example, if an instrument or mic gets swapped out after the soundcheck, the channel can be made safe to avoid settings being overridden by Scene recalls.
Or if a broadcast feed or walk-in iPod is added last-minute before the show kicks off, that mix or channel can be made safe from any scene change.
In addition, single parameter updates can be blocked using per scene Recall Filters or a Global Recall Filter.
So if you tweak the graphic EQ to reflect the room response when the audience gets in, you can block this to prevent any overwriting at scene change.
Custom settings for each EQ, compressor, channel or FX can be saved as Library presets.
This lets you store your tried and tested EQ setting for your favourite vocal mic or reverb pattern and apply it to other channels or shows. Libraries, Scenes and the complete Show configuration can be saved to a USB key, so you can carry the show with you, ready to use on another Qu-16.
