4K HDMI > CAT-6 HDBT 2.0 verlengset tot 180m Huurperiode 1 dag

Productbeschrijving

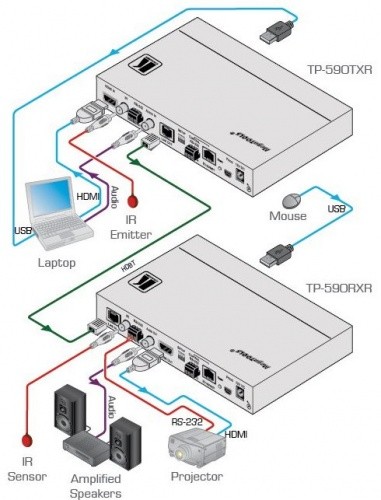

Met deze set kan een HDMI signaal maximaal 180m verzonden worden.

Professional HDBaseT extender for providing extended-reach signals over twisted-pair copper infrastructures.

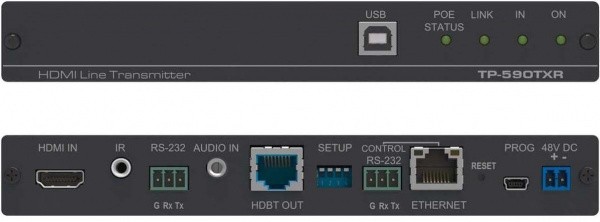

TP-590TXR is a standard extender that can be connected to any market available HDBaseT compliant extension product.
For optimum extension reach and performance, use recommended Kramer cables.

HDMI signal extension:
HDMI 2.0 and HDCP 1.4 compliant.
Supports deep color, x.v.Color, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D.
EDID and CEC signals are passed through from the source to the display.

I-EDIDPro Kramer intelligent EDID processing:
Intelligent EDID handling, processing and passthrough algorithm that ensures Plug and Play operation for HDMI source and display systems.

Multi-channel audio transmission:
Up to 32 channels of digital stereo uncompressed signals for supporting studiograde surround sound.

Audio embedding (adding):
A selectable analog unbalanced stereo audio input is converted into a digital signal and added (embedded) to the transmitted HDMI signal, replacing the embedded HDMI audio input signal.
This enables embedding a selectable audio source over HDMI.
For example, a presenter can display a video clip and temporarily override the audio of the source media with another audio source, such as from a microphone.

USB extension:
USB 2.0 interface data flows in both directions, allowing extension of HID (Human Interface Devices) peripheral devices, such as a mouse or a keyboard.
High bandwidth USB peripheral devices, such as USB isochronous streaming cameras and audio devices, transfer data continuously and periodically.
Delivery of their transferred data is not guaranteed by the USB standard and is subject to both USB and HDBaseT line bandwidth management limitations.
When such devices are connected, check their functionality to ensure bandwidth limitations are not exceeded.

Ethernet extension:
Ethernet interface data flows in both directions, allowing extension of up to 100Mbps Ethernet connectivity for LAN communication and device control.

Bidirectional RS-232 extension:
Serial interface data flows in both directions, allowing data transmission and device control.

Bidirectional infrared extension:
IR interface data flows in both directions, allowing remote control of peripheral devices located at either end of the extended line.

Cost effective maintenance:
Status LED indicators for HDMI and HDBT ports facilitate easy local maintenance and troubleshooting.
Remote device management via built in web UI and RS-232 connection.
Local and remote firmware upgrade via mini-USB, RS-232 or Ethernet connection and the K-Upload tool ensure lasting, field proven deployment.

Easy and elegant installation:
Single cable connectivity for both HDBaseT signals and power.
Compact MegaTOOLS fanless enclosure for dropped ceiling mounting, or side by side mounting of 2 units in a 1U rack space with the optional RKT2B rack adapter.

Features:
– HDBaseT 2.0 transmitter
– up to 180m at 1080p
– up to 100m at 4K@60Hz (4:2:0)
– up to 4K@60Hz (4:2:0) 24bpp video resolution
– USB, ethernet & control signal extension
– stereo analog audio embedding (adding)
– PoE provider
– size megaTOOLS mount 2 units side by side in a 1U rack space with the optional RK-T2B rack adapter.



Specificaties

Inputs:
– 1x HDMI on an HDMI connector
– 1x stereo analog unbalanced audio on a 3,5mm mini jack

Outputs:
– 1x HDBT on an RJ-45 female connector
– 1x IR on a 3,5mm mini jack for IR link extension
– 1x USB 2.0 on a USB-B connector
– 1x RS-232 on a 3-pin terminal block for serial link extension
– 1x RS-232 on a 3-pin terminal block for device control
– 1x 10Base-T/100BaseTx Ethernet
– RJ-45 female connector for device control and network traffic extension

Extension line:
– HDBaseT 2.0 compliant
– up to 100m at 4K @60Hz (4:2:0)
– up to 130m at full HD (1080p @60Hz 36bpp)
– up to 180m at HDBaseT ultra mode and full HD (1080p @60Hz 24bpp)
note when using Kramer HDBaseT cables

Video:
– up to 10,2 Gbps bandwidth (3,4Gbps per graphic channel)
– up to 4K UHD @60Hz (4:2:0) 24bpp resolution
– HDMI 2.0 and HDCP 1.4 signal compliance

Audio:
– up to 1 Vrms level
– 0,03% THD + NOISE @ 1 KHz at nominal level

Extended USB:
– 1.1 and 2.0 host compliance
– up to 127Mbps (out of max 480 USB) extended line rate bandwidth
– up to 7 devices
– up to 2 hubs
– up to 8 ports per hub

Extended Ethernet:
– up to 100Mbps extended line rate bandwidth

Extended RS-232:
– 300 to 115200 baud rate
– 115200 baud rate

Supprted web browsers:
– Windows 7 and higher, Internet Explorer (32/64 bit) version 11,
Firefox version 30, Chrome version 35
– MAC Chrome version 35, Firefox version 27, Safari version 7
– Android OS Chrome version 35; iOS:Chrome version 35, Safari version 7

Power source:
– 48V/DC/1,36A

Power consumption:
– 48V/DC/800mA

Enclosure:
– mega Tools size
– aluminium type

Cooling:
– convection ventilation

Operating temperature:
– 0 – +40C

Storage tempeature:
– -40 – +70C

Humidity:
– 10 – 90%, RHL non-condensing

Vibration:
– ISTA 1A in carton (International Safe Transit Association)

Safety regulatory campliance:
– CE
– RoHs and WEEE

Accessories:
– 1x power supply (48V, 1,36A)

Dimension:
– 18,75cm x 11,50cm x 2,54cm W x D x H
– 0,5kg approx

Verpakt in een koffer:
– 34cm breed x 27cm diep x 17cm hoog
– gewicht 4kg
